Remove/Install Pneumatic Pump For Multicontour Seat - AR91.25-P-1431ME
Model 167
With Code 399 (Multicontour front seats with massage function)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove corresponding front seat and place on a suitable base. | AR91.10-P-1000ME | |

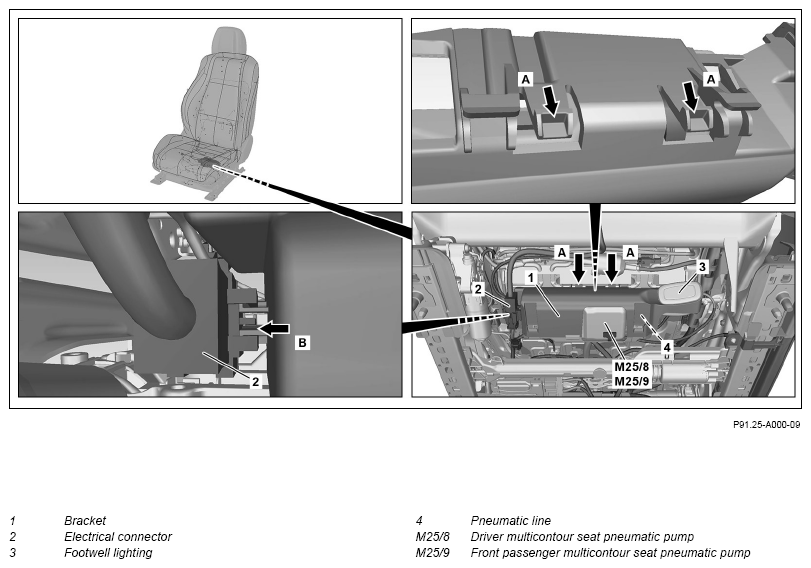

| 2 | Unclip electrical connector (2) with a suitable tool (arrow B) and remove toward rear from bracket (1). | ||
| 3 | Release and disconnect electrical connector of footwell lighting (3). | Model 167 with code 399 (Multicontour front seats with massage function) with code 876 (Interior Light package) |
|
| 4 | Release and disconnect electrical connector of multicontour seat pneumatic pump (M25/8 or M25/9). | ||
| 5 | Release and disconnect pneumatic line (4) of multicontour seat pneumatic pump (M25/8 or M25/9). | ||
| 6 | Release holder (1) with a suitable tool (arrows A) and remove toward front. | ||
| 7 | Open holder (1) and remove multicontour seat pneumatic pump (M25/8 or M25/9). | ||
| 8 | Install in the reverse order |
