Remove/Install Front Seat Cushion Heat Mat - AR91.30-P-0013ME

Model 167

With Code 401 (Climatised front seats)

Model 167

With Code 873 (Left and right driver's seat heating)

Model 167

With Code 902 (Seat heater Plus for driver and front passenger)

Courtesy of MERCEDES-BENZ USA

	Remove/install

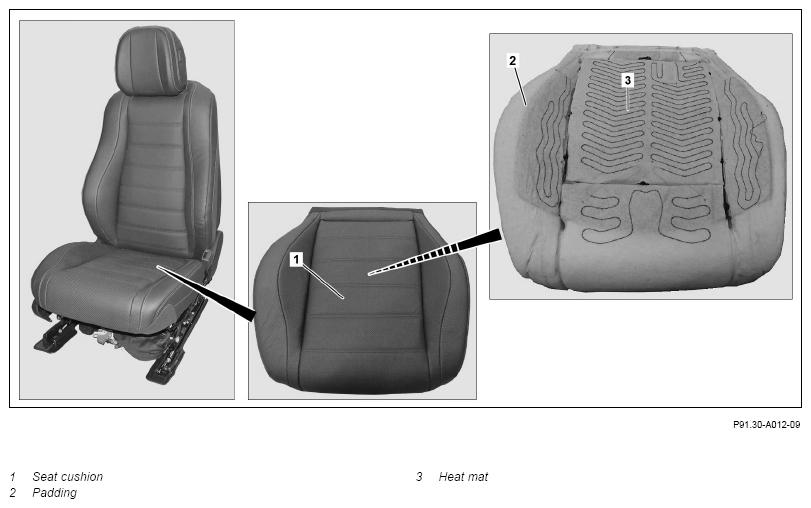

1	Remove cover from seat cushion (1) at right on left front.		AR91.18-P-1801ME
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
2	Heat up the heat mat (3) and carefully remove from padding (2).
	000 588 00 84 00 Heat gun		WS54.00-P-0049B
		Do not exceed temperatures of 60°C. Otherwise, the structure of the padding (2) will change. Replace heat mat (3).
		Stick new heat mat (3) using old heat mat (3) as template onto padding (2). If the padding (2) is damaged, ↓ replace the padding (2).
3	Install in the reverse order
