Remove/Install Front Seat Belt Buckle - AR91.40-P-1510ME
Model 167
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front seat. | AR91.10-P-1000ME | |
| 2 | Follow electrical wiring harness (3) of seat belt buckle (1) up to electrical connector (5). | ||

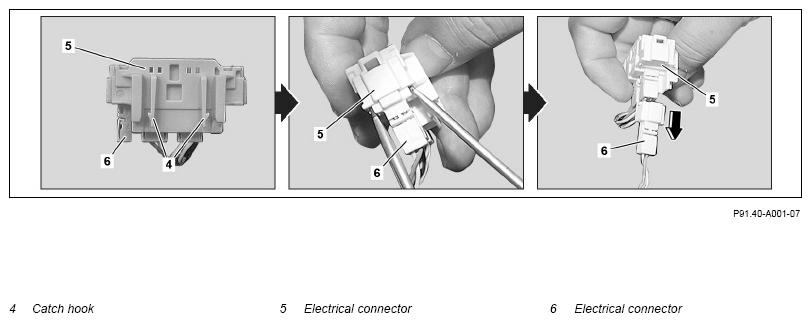

| 3 | Release catch hooks (4) and remove electrical connector (5) from seat frame base. | ||
| 4 | Release electrical connector (6) of electrical wiring harness (3) with two suitable tools and pull out of electrical connector (5). | Carefully remove electrical connector (6). Otherwise, this may be damaged. |
|
| 5 | Expose electrical wiring harness (3) of seat belt buckle (1). | Fix electrical wiring harness (3) in place at seat frame base such that adjustment of the front seat is possible without limitation. Otherwise the electrical wiring harness (3) may be sheared off or crushed. |
|

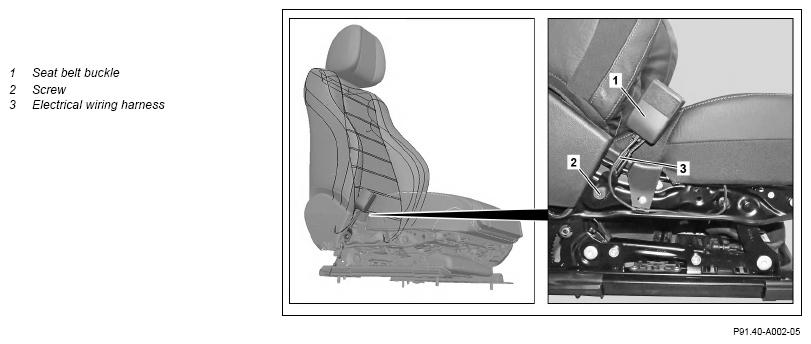

| Fig 1 | |||
| 6 | Remove screw/bolt (2). | *BA91.40-P-1004-01U | |
| 7 | Remove seat belt buckle (1). | ||
| 8 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 |
