Remove/Install Front Seat Belt - AR91.40-P-1010ME
Model 167
MODIFICATION NOTES
| 29.05.2019 | New operation step with special tool added. | Operation step 6 |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove trim at B-pillar. | AR68.30-P-4700ME | |
| 2 | Clamp off ground line of on-board electrical system battery (G1). | AR54.10-P-0003ME | |
| 3 | Remove bolt (3) and remove seat belt guide bracket. | *BA91.40-P-1002-01U | |
| 4 | Expose front and rear floor coverings until the air duct (1) can be removed. | Model 167 with code 581 (Automatic air conditioning) |
|
| Driver's side front floor covering | AR68.80-P-0007ME | ||
| Front passenger side front floor covering | AR68.80-P-0008ME | ||
| Floor covering in rear | AR68.80-P-0003ME | ||
| 5 | Remove air ducts (1, 2). | Model 167 with code 581 (Automatic air conditioning) |
|

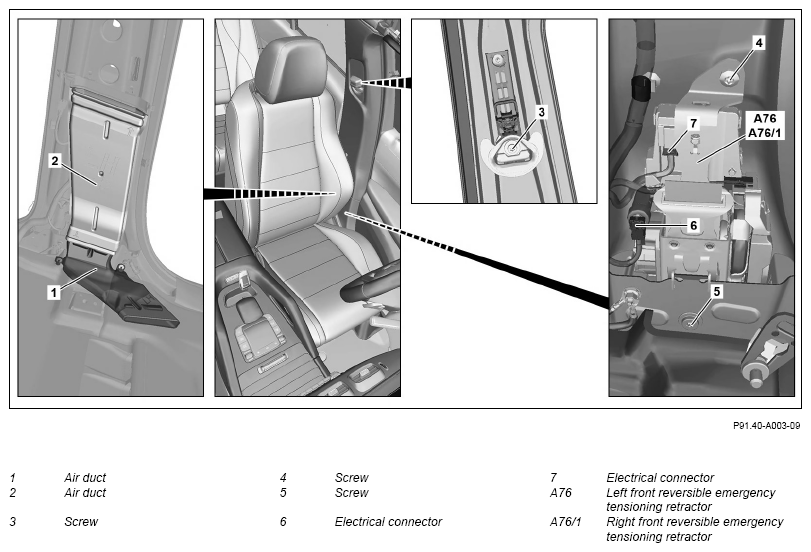

| Fig 1 | |||
| 6 | Release and disconnect electrical connector (6) at reversible emergency tensioning retractor at front (A76 or A76/1). | Fig 2 | |
| 7 | Release and disconnect electrical connector (7) at reversible emergency tensioning retractor at front (A76 or A76/1). | ||
| 8 | Unclip electric lines from reversible seat belt tensioner at front (A76 or A76/1). | If installed. | |
| Fig 1 | |||
| 9 | Remove bolt (4) from reversible emergency tensioning retractor at front (A76 or A76/1). | *BA91.40-P-1001-01U | |
| 10 | Remove screw (5). | *BA91.40-P-1001-01U | |
| 11 | Remove reversible seat belt tensioner at front (A76 or A76/1) from body opening. | ||
| 12 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1001-01U | Bolt, front seat belt retractor | Nm | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1002-01U | Bolt, front belt guide bracket | Nm | 35 |
