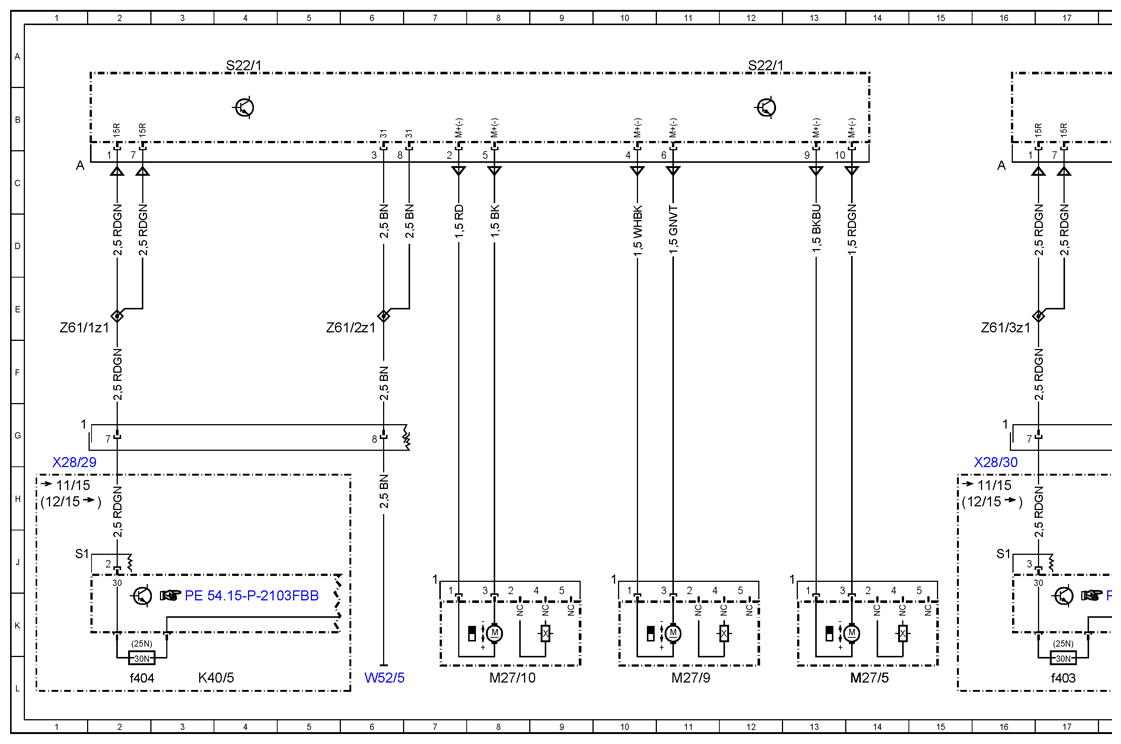

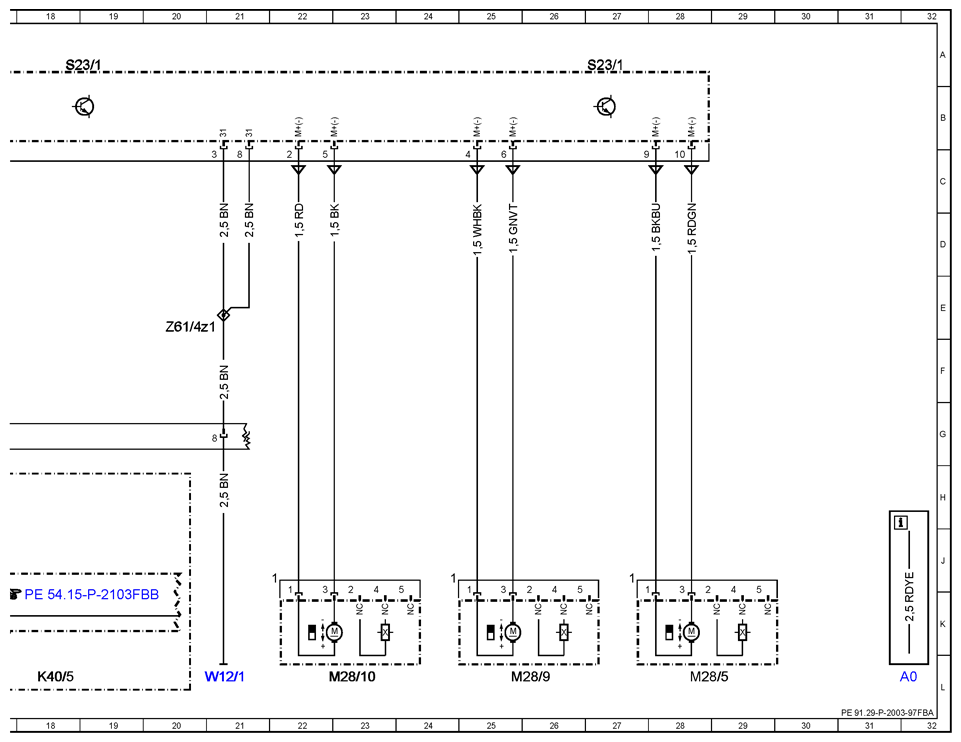

Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
up to model year 2019
with code P65 (Seat Comfort Package)
Model 253 (except 253.99)
up to model year 2020
with code P65 (Seat Comfort Package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5 | Rear fuse and relay module | 18L |
| K40/5f403 | Fuse 403 | 17L |
| K40/5f404 | Fuse 404 | 2L |
| M27/10 | Driver seat height adjustment motor | 8L |
| M27/5 | Driver seat backrest inclination adjustment motor | 14L |
| M27/9 | Seat inclination adjustment motor, driver seat | 11L |
| M28/10 | Front passenger seat height adjustment motor | 23L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 28L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 25L |
| S22/1 | Driver seat partially electric seat adjustment switch | 4A |
| S22/1 | Driver seat partially electric seat adjustment switch | 12A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 18A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 27A |
| W12/1 | Right center console ground point | 21L |
| W52/5 | Left center longitudinal member ground point | 6L |
| X28/29 | Driver airbag electrical connector | 1H |
| X28/30 | Front passenger airbag electrical connector | 16H |
| Z61/1z1 | Left front seat circuit 30 connector sleeve | 1E |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 6E |
| Z61/3z1 | Right front seat circuit 30 connector sleeve | 16E |
| Z61/4z1 | Right front seat circuit 31 connector sleeve | 20E |
