Remove/Install Moving Glass Section Of Panoramic Roof - AR77.21-P-0503MEC
Model 167.3
With Code 413 (Panoramic sliding sunroof/glass roof)

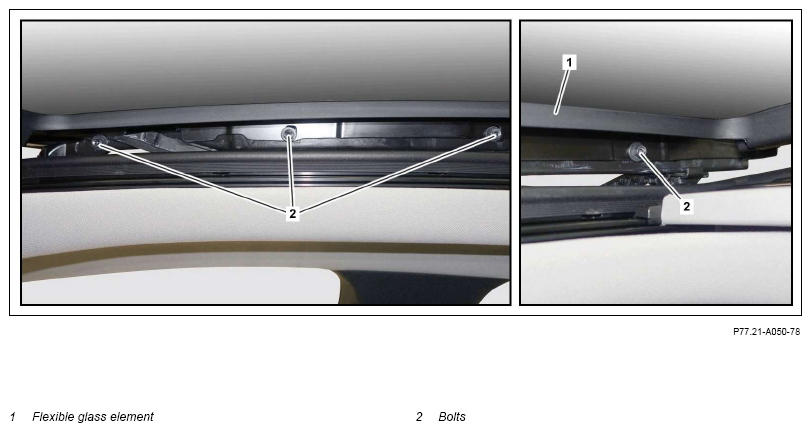

Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Lift movable glass section (1) to tilt position and open until screws (2) can be accessed. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Mark installation location and installation position of bolts (2). | ||
| 4 | Remove screw/bolts (2). | ||
| 5 | Remove movable glass section (1) upwards and set down on a suitable base. | ||
| 6 | Install in the reverse order. | ||
| Adjust | |||
| 7 | Adjust movable glass section (1). | AR77.21-P-6924ME |
