Cut Out Panoramic Sliding Roof Frame - AR77.21-P-0801-01MEC

Model 167.3

With Code 413 (Panoramic sliding sunroof/glass roof)

	Risk of injury  due to snapping or warming up of cutting wire and due to splinters when cutting out glued panoramic roofs	Wear cut-proof gloves and safety glasses.	AS77.21-Z-0002-01A
Topical note	Notes on removal/installation of bonded elements of panoramic roof		AH77.21-P-0001-01A

Fig 1: Identifying Set Of Shields (222 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

1. Cover adjacent paint surfaces with the shield set.

   Cover adjacent paint surfaces with set of shields when cutting.

   Otherwise paint can be damage by cutting wire.

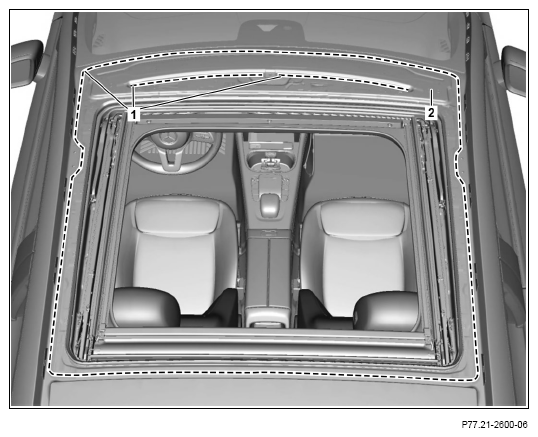

2. Cut through adhesive beads (1) all-round at panoramic sliding sunroof frame (2) using cutting wire.

   Aid of helper required.

3. Remove panoramic sliding sunroof frame (2).

   Aid of helper required.
