Secure Vehicle On Vehicle Lift With Support Arms - AR00.60-P-0100-01B

Model 167

with code M036 (Maybach version)

Running boards installed

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Topical note	Information on influencing load ratios when removing major assemblies		AH00.60-P-0001-01A

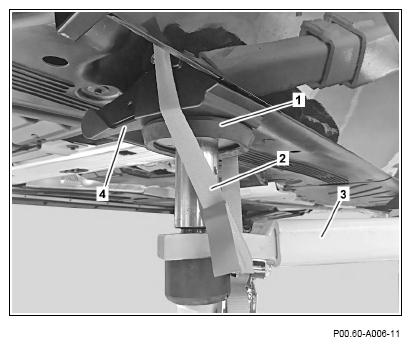

1. Guide tensioning straps (2) around running boards (4).

   Make sure that the tensioning straps (2) are seated correctly.

2. Lash down support plates (1) on vehicle lift swivel arms (3) using tensioning straps (2).

   When lashing down, note adjacent component parts.

   Otherwise, this will be pinched or damaged.

   When lashing down, note any sharp-edged objects. Otherwise the tensioning strap (2) will be damaged.

3. Remove in the reverse order.

   Courtesy of MERCEDES-BENZ USA
