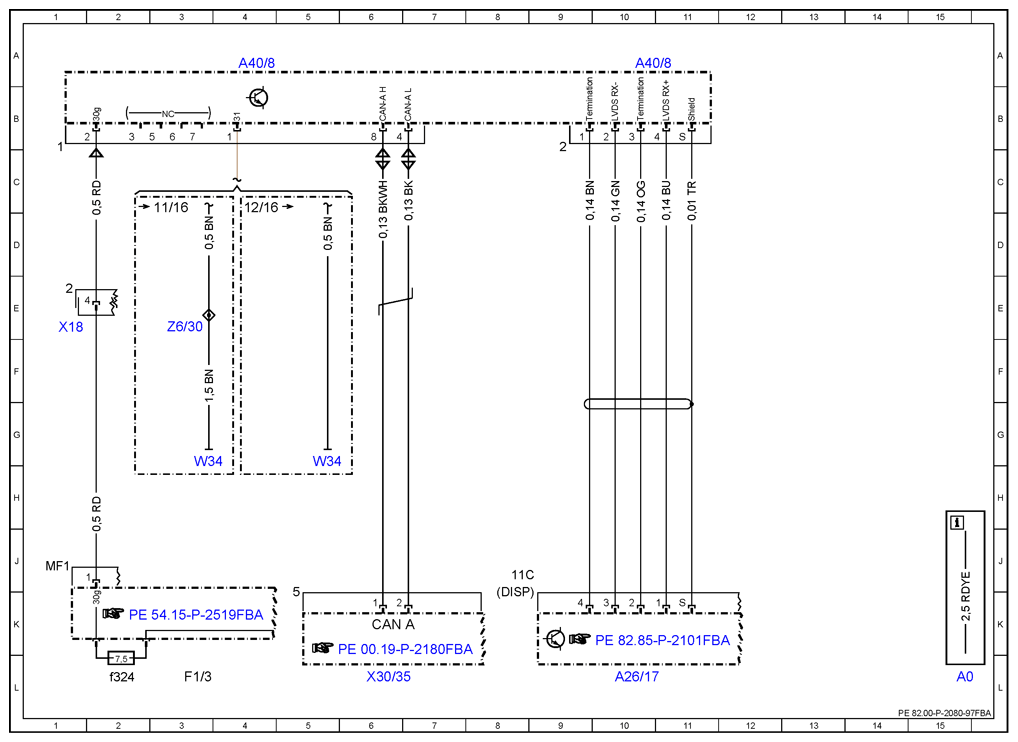

Wiring Diagram For Audio/COMAND Display - PE82.00-P-2080-97FBA
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Control unit A40/8 Model 253 (except 253.99) up to model year 2020 Control unit A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A26/17 | Head unit | 10L |
| A40/8 | Audio/COMAND display | 4A |
| A40/8 | Audio/COMAND display | 10A |
| CAN A | Telematics CAN | 6K |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f324 | Fuse 324 | 2L |
| W34 | Left footwell ground point | 5H |
| W34 | Left footwell ground point | 3H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 1E |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 6L |
| Z6/30 | Circuit 31 connector sleeve | 3E |
