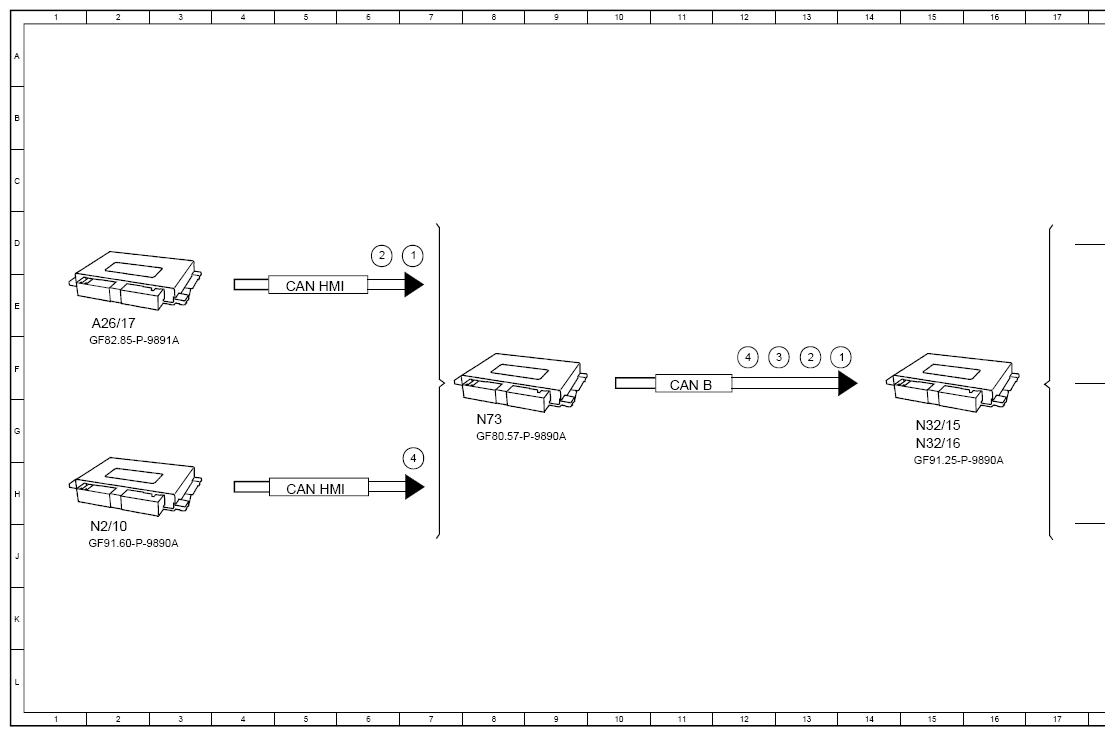

Function Schematic For Actuating Front Multicontour Seat - PE91.25-P-2501-97B
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2025 Mercedes-Benz Maybach GLS600, 2025 Mercedes-Benz GLS63 AMG, 2024 Mercedes-Benz Maybach GLS600, 2024 Mercedes-Benz GLS63 AMG, and 2023 Mercedes-Benz Maybach GLS600. However, it is still accessible from the selected car via links, so may be relevant.
Model 167
with code 399 (Multicontour front seats with massage function)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multicontour seat adjustment, request | 14F |
| 1 | Multicontour seat adjustment, request | 7D |
| 2 | Massage function, request | 6D |
| 2 | Massage function, request | 13F |
| 3 | Circuit 15, status | 13F |
| 4 | Crash, signal | 12F |
| 4 | Crash, signal | 7G |
| 5 | Compressed air supply, request | 19D |
| 6 | Massage function control unit, actuation | 19F |
| 6 | Massage function control unit, actuation | 19H |
| A26/17 | Head unit | 2E |
| CAN B | Interior CAN | 11F |
| CAN HMI | User interface CAN | 5E |
| CAN HMI | User interface CAN | 5H |
| LIN B26 | Massage components LIN | 18F |
| LIN B28 | Heater LIN | 18H |
| M25/8 | Driver multicontour seat pneumatic pump | 20D |
| M25/9 | Front passenger multicontour seat pneumatic pump | 20D |
| N2/10 | Supplemental restraint system control unit | 2J |
| N32/15 | Driver multicontour seat control unit | 15G |
| N32/16 | Front passenger multicontour seat control unit | 15G |
| N32/31 | Driver seat backrest massage function control unit | 20H |
| N32/32 | Front passenger seat backrest massage function control unit | 20F |
| N32/43 | Driver seat cushion massage function control unit | 20J |
| N32/44 | Front passenger seat cushion massage function control unit | 20F |
| N73 | Electronic ignition switch control unit | 8G |
