Function Schematic For Front Seat Electric Seat Adjustment - PE91.29-P-2501-97B
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2025 Mercedes-Benz Maybach GLS600, 2025 Mercedes-Benz GLS63 AMG, 2024 Mercedes-Benz Maybach GLS600, 2024 Mercedes-Benz GLS63 AMG, and 2023 Mercedes-Benz Maybach GLS600. However, it is still accessible from the selected car via links, so may be relevant.
Model 167
| Code: | Designation: | Position: |
|---|---|---|

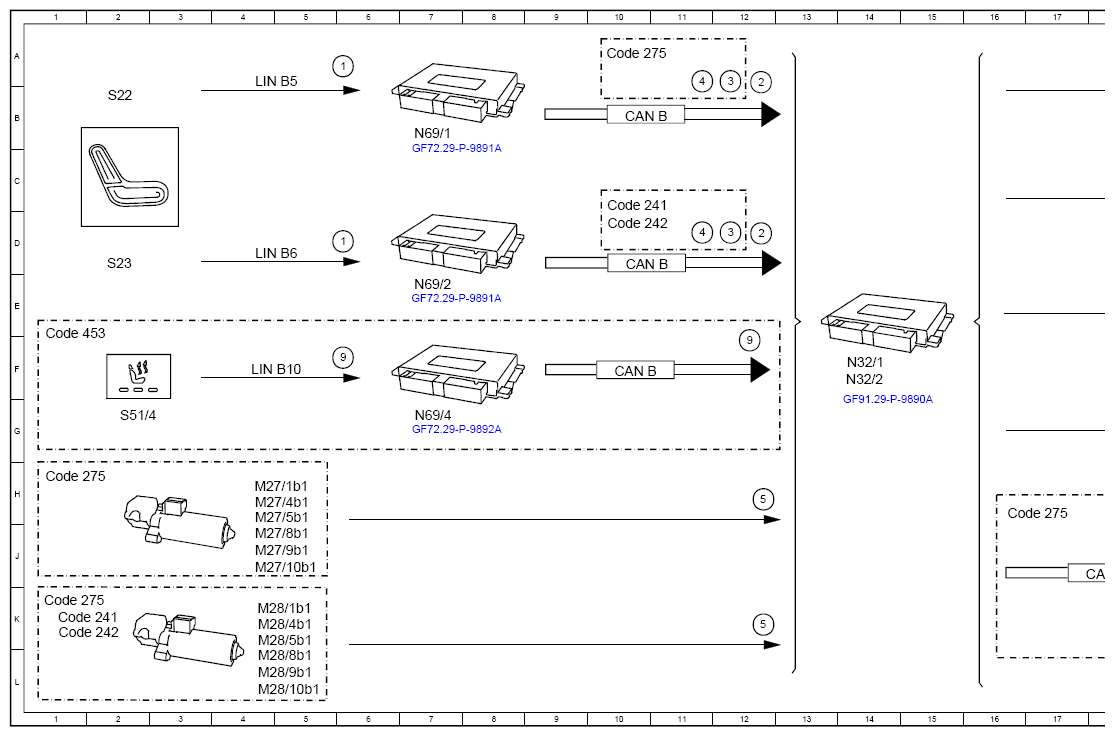

| 1 | Seat adjustment switch group, status | 6A |
| 1 | Seat adjustment switch group, status | 6D |
| 2 | Manual adjustment, request | 12D |
| 2 | Manual adjustment, request | 12B |
| 3 | Store memory position, request | 12D |
| 3 | Store memory position, request | 12B |
| 4 | Adopt memory position, request | 11D |
| 4 | Adopt memory position, request | 11B |
| 5 | Hall sensors, signal | 12H |
| 5 | Hall sensors, signal | 12K |

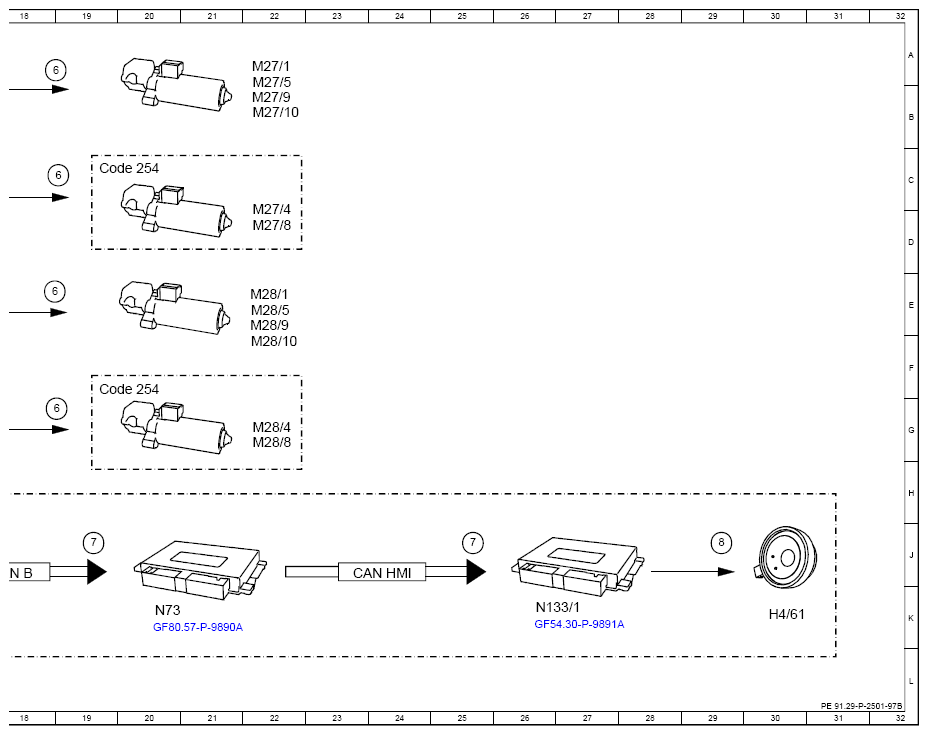

| 6 | Seat adjustment motor, actuation | 18A |
| 6 | Seat adjustment motor, actuation | 18G |
| 6 | Seat adjustment motor, actuation | 18F |
| 6 | Seat adjustment motor, actuation | 18C |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 25J |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 9J |
| 8 | Speaker, actuation | 29J |
| 9 | Front passenger seat operation from right rear seat, request | 6F |
| 9 | Front passenger seat operation from right rear seat, request | 12F |
| CAN B | Interior CAN | 10B |
| CAN B | Interior CAN | 10D |
| CAN B | Interior CAN | 18J |
| CAN B | Interior CAN | 10F |
| CAN HMI | User interface CAN | 24J |
| Code 241 | Electrically adjustable left driver"s seat with memory function | 1K |
| Code 241 | Electrically adjustable left driver"s seat with memory function | 10C |
| Code 242 | Electrically adjustable right driver"s seat with memory function | 1K |
| Code 242 | Electrically adjustable right driver"s seat with memory function | 10D |
| Code 254 | Electrically adjustable seat cushion length and front head restraints | 19C |
| Code 254 | Electrically adjustable seat cushion length and front head restraints | 19F |
| Code 275 | Memory package | 1H |
| Code 275 | Memory package | 1K |
| Code 275 | Memory package | 10A |
| Code 275 | Memory package | 16H |
| Code 453 | Rear reclining seats | 1F |
| H4/61 | Instrument cluster speaker | 30K |
| LIN B10 | Right rear door LIN | 4F |
| LIN B5 | Driver door LIN | 4A |
| LIN B6 | Front passenger door LIN | 4D |
| M27/1 | Driver seat fore/aft adjustment motor | 22A |
| M27/10 | Driver seat height adjustment motor | 22B |
| M27/10b1 | Driver seat, seat height adjustment Hall sensor, | 4J |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 4H |
| M27/4 | Driver seat head restraint adjustment motor | 22D |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 4H |
| M27/5 | Driver seat backrest inclination adjustment motor | 22B |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 4H |
| M27/8 | Seat cushion length adjustment motor, driver seat | 22D |
| M27/8b1 | Seat cushion length adjustment Hall sensor, driver seat | 4J |
| M27/9 | Seat inclination adjustment motor, driver seat | 22B |
| M27/9b1 | Seat inclination adjustment Hall sensor, driver seat | 4J |
| M28/1 | Front passenger seat fore/aft adjustment motor | 22E |
| M28/10 | Front passenger seat height adjustment motor | 22F |
| M28/10b1 | Front passenger seat, seat height adjustment Hall sensor, | 4L |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 4K |
| M28/4 | Front passenger seat head restraint adjustment motor | 22G |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 4K |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 22E |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 4K |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 22G |
| M28/8b1 | Seat cushion length adjustment Hall sensor, front passenger seat | 4L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 22E |
| M28/9b1 | Seat inclination adjustment Hall sensor, front passenger seat | 4L |
| N133/1 | Instrument cluster control unit | 26K |
| N32/1 | Driver seat control unit | 14F |
| N32/2 | Front passenger seat control unit | 14F |
| N69/1 | Driver door control unit | 7B |
| N69/2 | Front passenger door control unit | 7E |
| N69/4 | Right rear door control unit | 7G |
| N73 | Electronic ignition switch control unit | 20K |
| S22 | Left front seat adjustment switch | 2B |
| S23 | Right front seat adjustment switch | 2D |
| S51/4 | Right rear heated seat switch | 2G |
