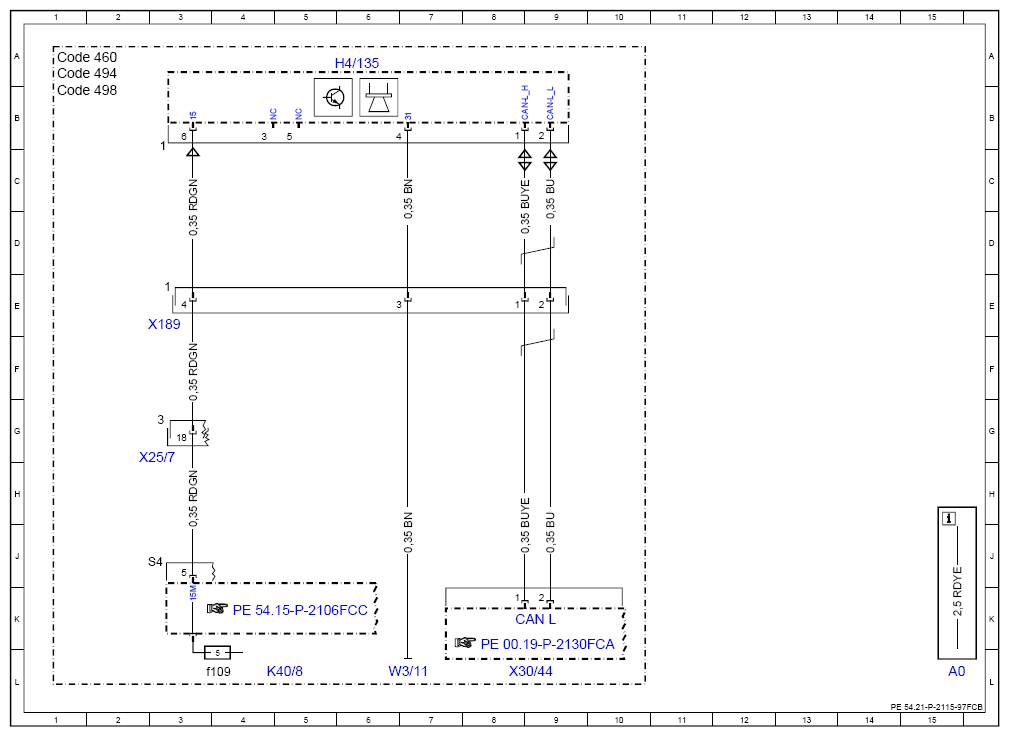

Wiring Diagram For Sound Generator Control Unit - PE54.21-P-2115-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
with code B53 (External noise sound generator for hybrids and EV)
H4/134, H4/135
Model 253.99
as of model year 2019
with code 9O1 (Fuel cell pre-installation)
with code B53 (External noise sound generator for hybrids and EV)
H4/134, H4/135
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| CAN L | Hybrid CAN | 9K |
| Code 460 | Canada version | 1A |
| Code 494 | USA version | 1A |
| Code 498 | Japan version | 1B |
| H4/135 | Rear end sound generator | 6A |
| K40/8 | Engine fuse and relay module | 5L |
| K40/8f109 | Fuse 109 | 3L |
| W3/11 | Left rear wheel well ground point | 6L |
| X189 | Sound generator electrical connector | 3E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 3H |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 8L |
