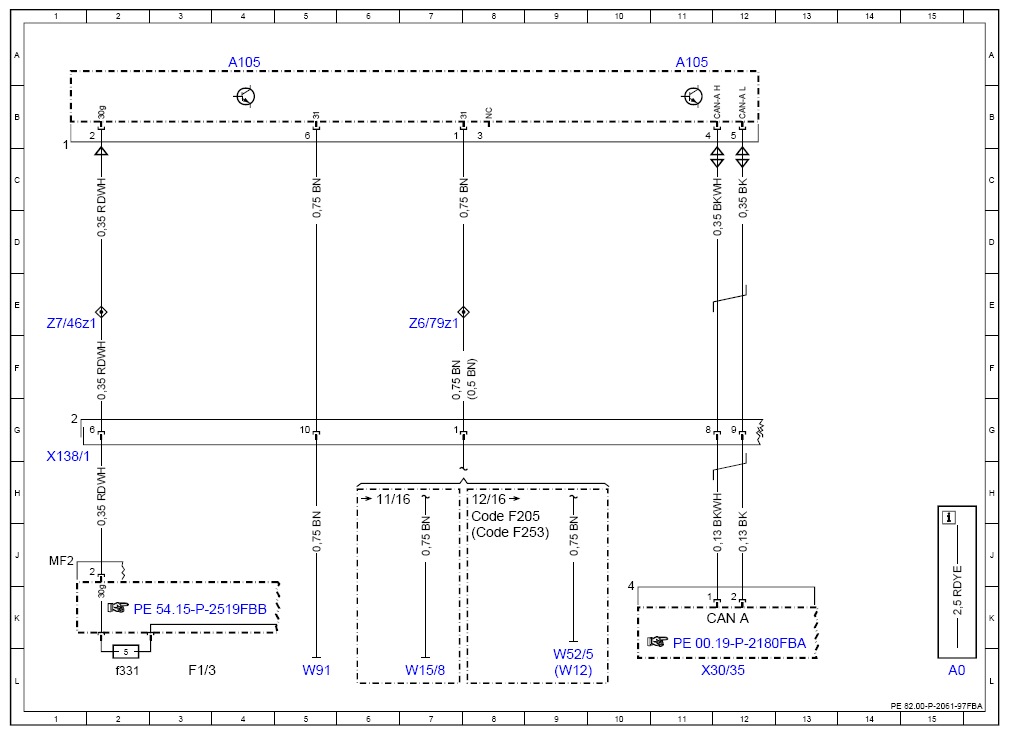

Wiring Diagram For Touchpad - PE82.00-P-2061-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
with code 522 (Audio 20 radio)
with code 531 (COMAND® APS)
Control unit A105
Model 253 (except 253.99) up to model year 2020
with code 522 (Audio 20 radio)
with code 531 (COMAND® APS)
Control unit A105
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A105 | Touchpad | 4A |
| A105 | Touchpad | 11A |
| CAN A | Telematics CAN | 12K |
| Code F205 | MODEL SERIES 205 | 8H |
| Code F253 | MODEL SERIES 253 | 8J |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f331 | Fuse 331 | 2L |
| W12 | Ground point (center console) | 9L |
| W15/8 | Right front footwell ground point (CAN) | 7L |
| W52/5 | Left center longitudinal member ground point | 9L |
| W91 | Left center console ground point | 5L |
| X138/1 | Front center console electrical connector | 1H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 12L |
| Z6/79z1 | Circuit 31 connector sleeve | 7E |
| Z7/46z1 | Circuit 30g connector sleeve | 1E |
