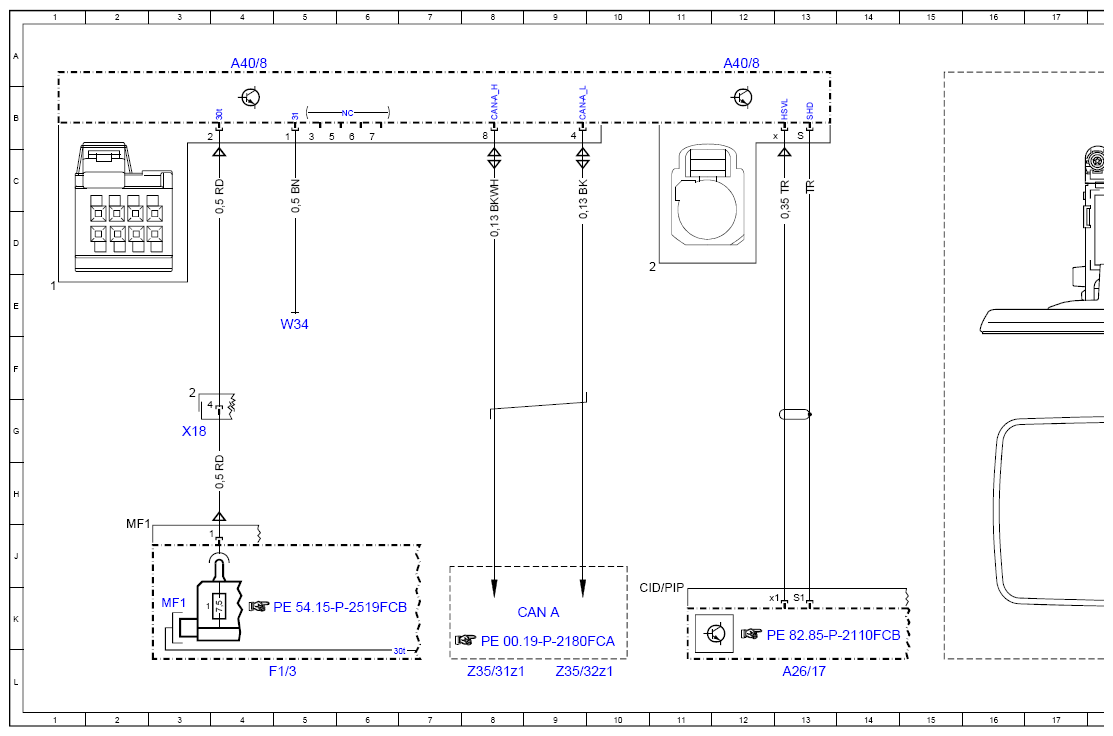

Wiring Diagram For Audio/COMAND® Display - PE82.00-P-2080-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A26/17 | Head unit | 13L |

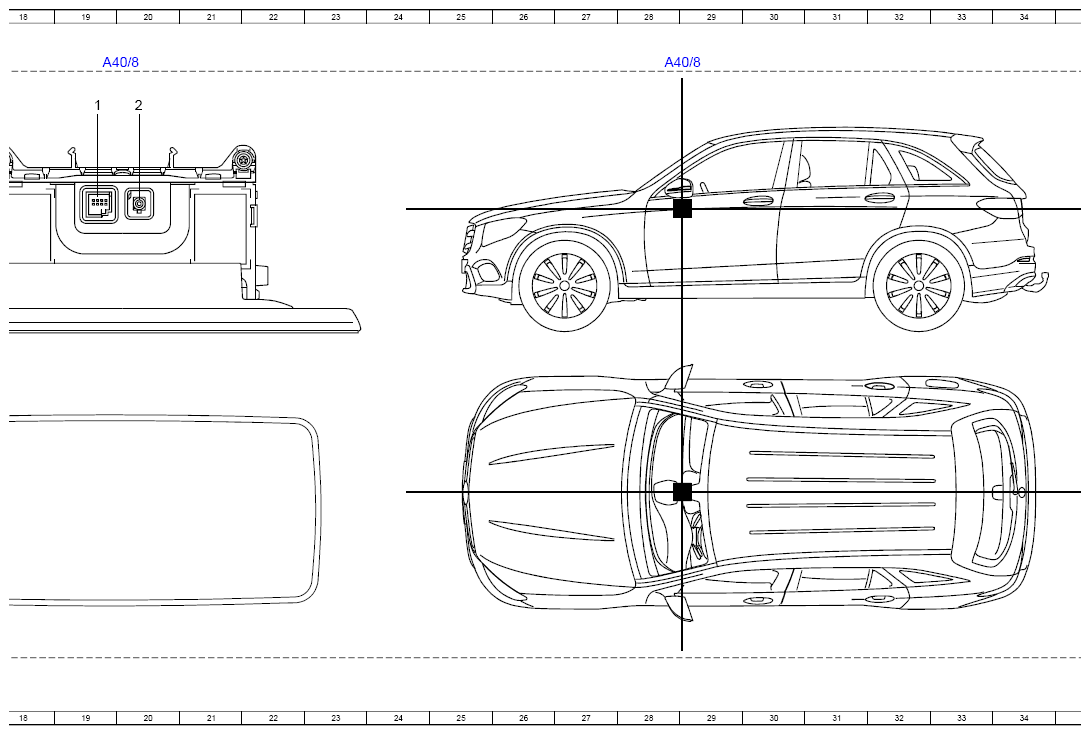

| A40/8 | Audio/COMAND® display | 4A |
| A40/8 | Audio/COMAND® display | 12A |
| A40/8 | Audio/COMAND® display | 19A |
| A40/8 | Audio/COMAND® display | 28A |
| CAN A | Telematics CAN | 9K |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF1 | Multiple fuse 1 | 3K |
| W34 | Left footwell ground point | 5E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 3G |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 8L |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 9L |
