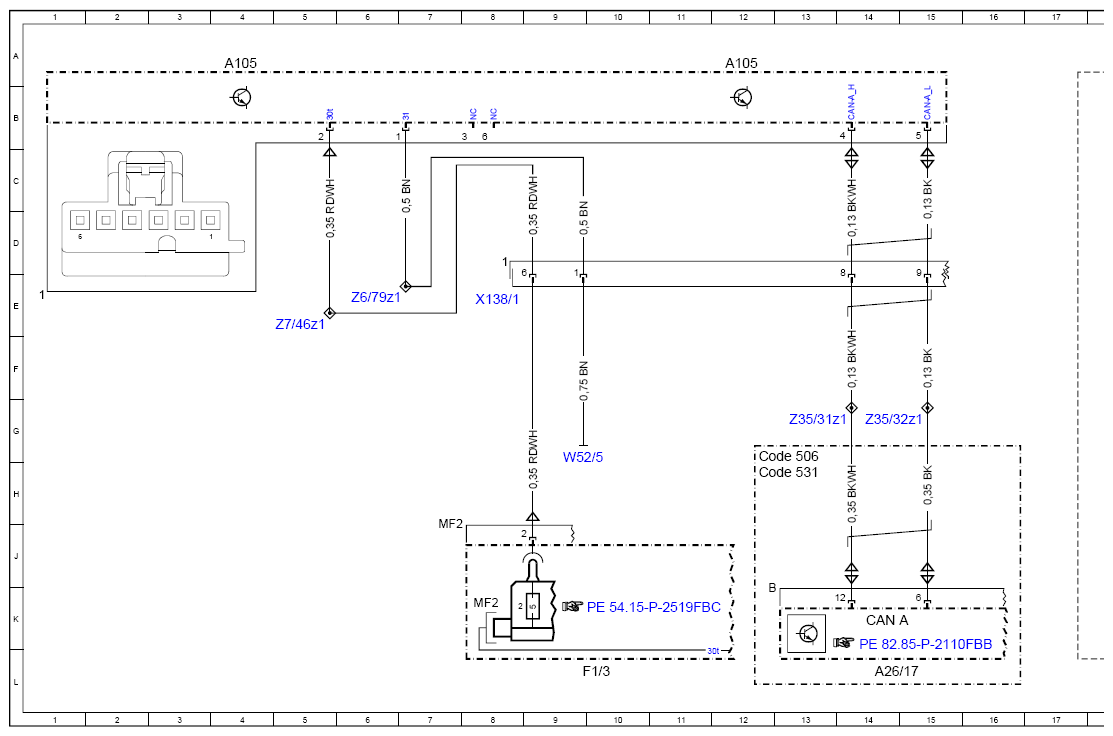

Wiring Diagram For Touchpad - PE82.00-P-2061-97FBC
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019
with Code 448 (Touchpad)
except Code 446 (Touchpad only)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |

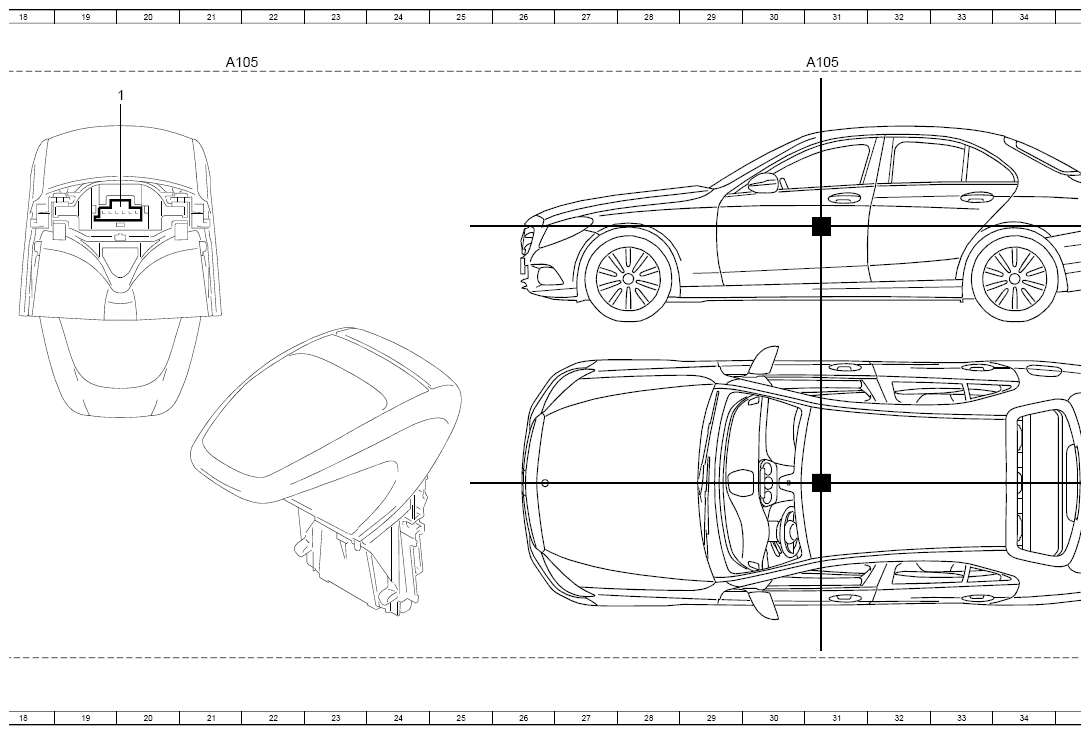

| A105 | Touchpad | 4A |
| A105 | Touchpad | 12A |
| A105 | Touchpad | 21A |
| A105 | Touchpad | 31A |
| A26/17 | Head unit | 14L |
| CAN A | Telematics CAN | 14K |
| Code 506 | Audio 20 NTG 5.5 radio | 12G |
| Code 531 | COMAND® APS | 12H |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| F1/3MF2 | Multiple fuse 2 | 8K |
| W52/5 | Left center longitudinal member ground point | 9H |
| X138/1 | Front center console electrical connector | 8E |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 13G |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 14G |
| Z6/79z1 | Circuit 31 connector sleeve | 6E |
| Z7/46z1 | Circuit 30g connector sleeve | 5E |
