Check Brake Disks For Damage - AR42.10-P-0290-01RG

WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 167, 190, 197, 205, 206, 212, 213, 217, 218, 222, 223, 231, 253, 290, 297

with code B07 (AMG - ceramic brake system)

Notes on safety-relevant components

AH00.00-Z-0019-01A

Courtesy of MERCEDES-BENZ USA

Always check the inside and outside of the brake disks for damage.

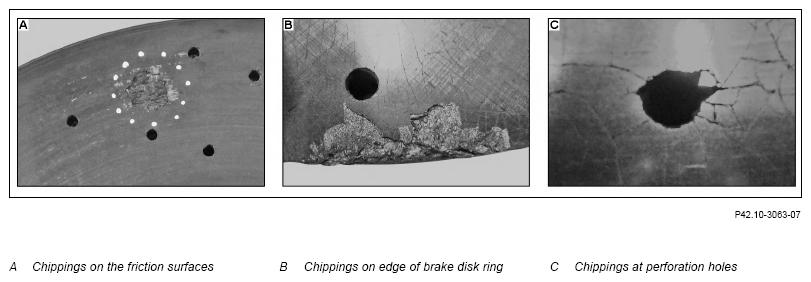

The following types of damage may occur:

Chippings on the friction surfaces (A)
Chippings on edge of brake disk ring (B)
Chippings on perforation holes (C)

Chippings on the friction surfaces (A)

Chippings on the friction surfaces (A) can occur because of thermal stresses. A max. of 3 chippings up to a size of 400 mm and a depth of max. 2 mm are permissible for each brake disk.

Chippings on edge of brake disk ring (B)

Chippings on the edge of the brake disk ring (B) can occur because of thermal stresses or collisions. A maximum of 3 chippings of the following dimensions are permissible for each brake disk:

Length in circumferential direction max. 25 mm
Width in direction of friction surface max. 8 mm
Depth max. 3 mm

Chippings on perforation holes (C)

Chippings on perforation holes (C) can occur because of thermal stresses. They are permissible up to a length, width and depth of 3 mm in each case.
