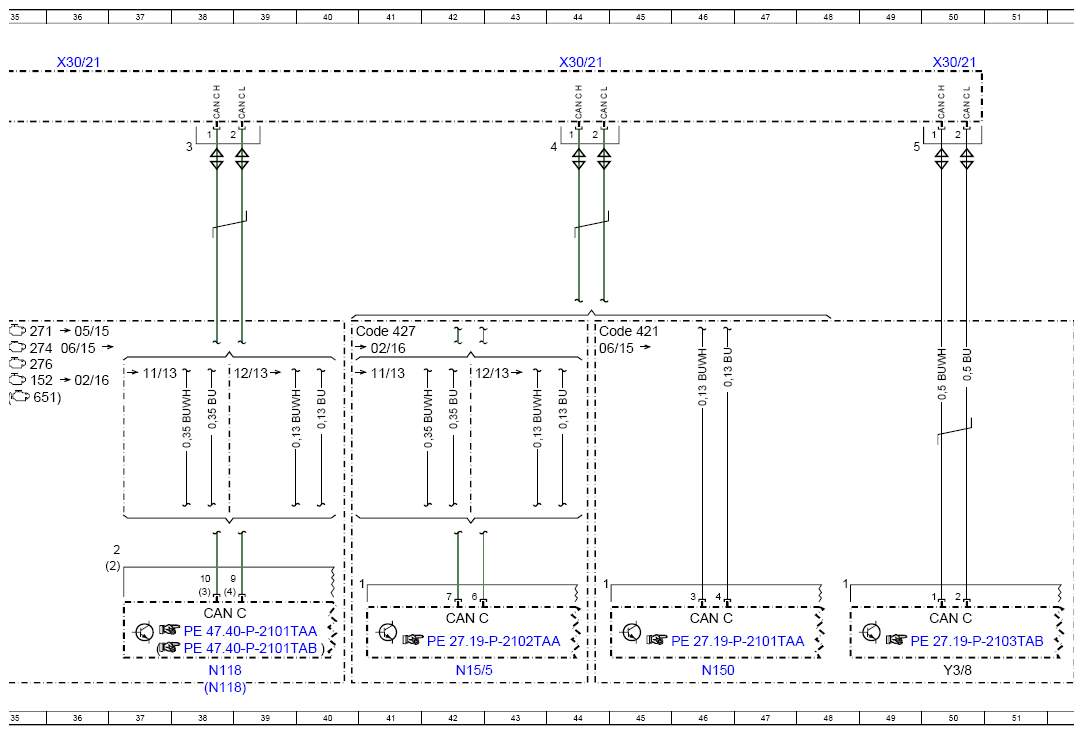

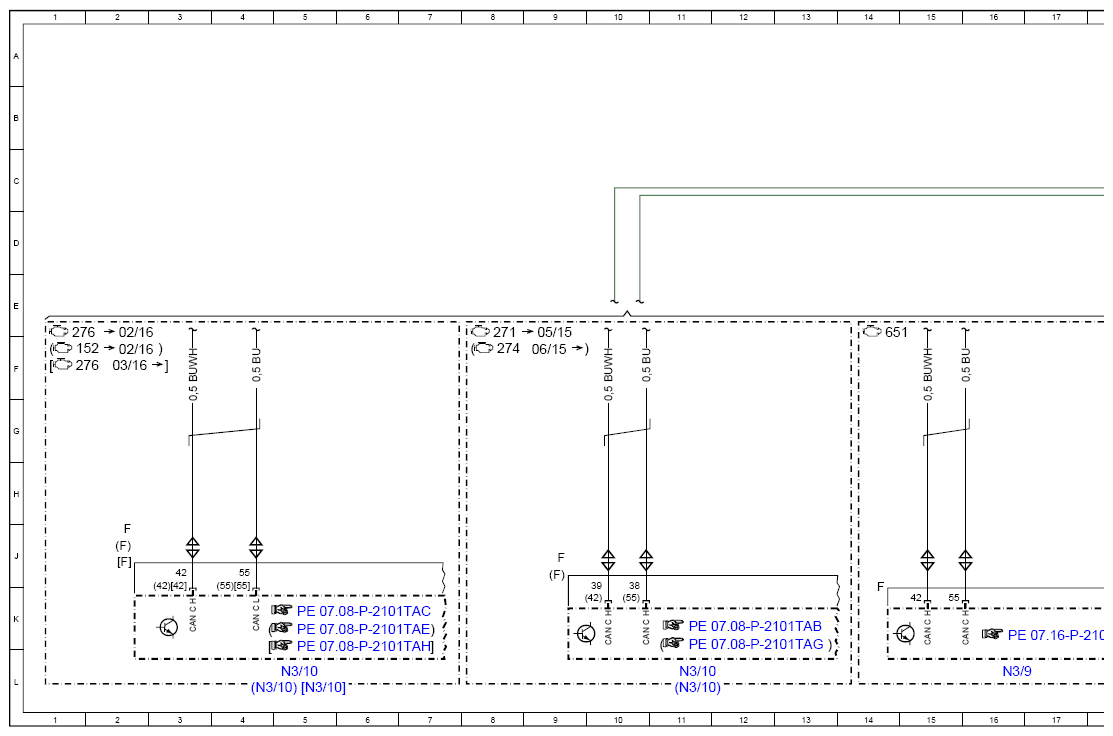

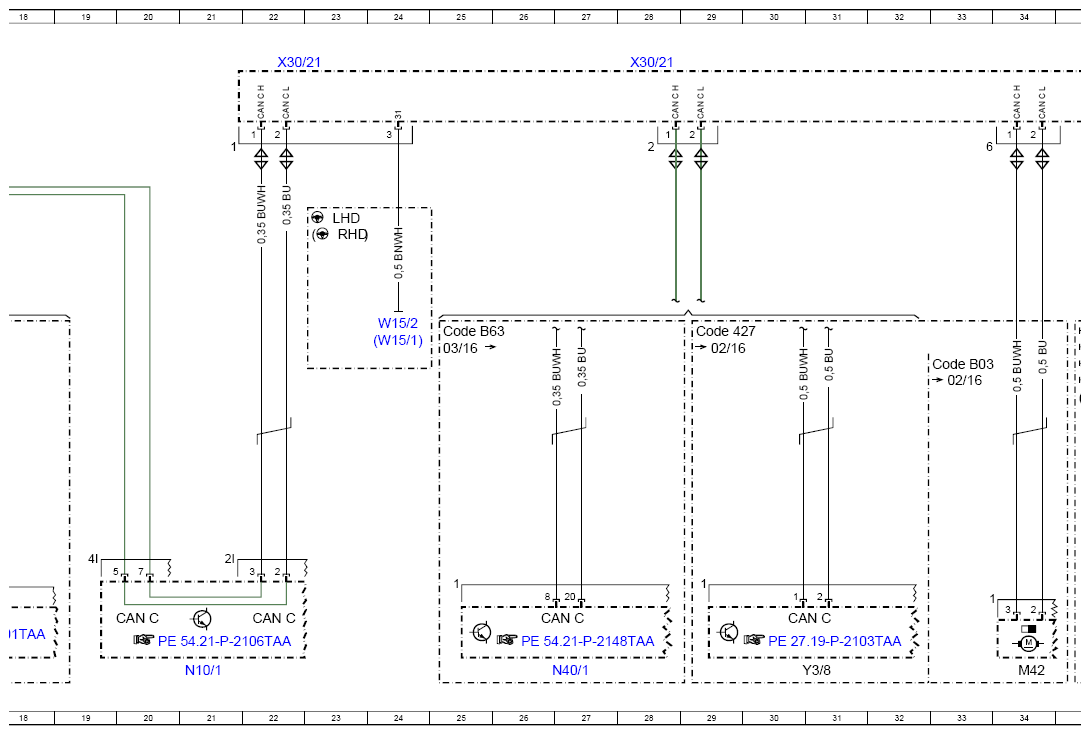

Wiring Diagram Of Drive Train CAN - PE00.19-P-2170-97TAA
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
Potential distributor X30/21
| Code: | Designation: | Position: |
|---|---|---|

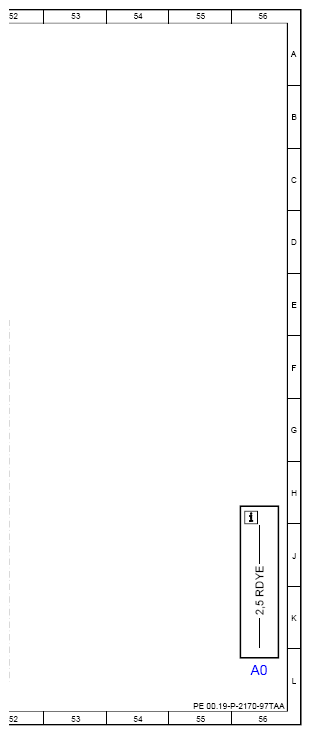

| AO | Color code key | 56L |
| CAN C | Drive train CAN | 20K |
| CAN C | Drive train CAN | 22K |
| CAN C | Drive train CAN | 26K |
| CAN C | Drive train CAN | 46K |
| CAN C | Drive train CAN | 38K |
| CAN C | Drive train CAN | 30K |
| CAN C | Drive train CAN | 42K |
| CAN C | Drive train CAN | 50K |
| Code 421 | 9G-TR0NIC | 44F |
| Code 427 | 7G-TR0NIC | 29F |
| Code 427 | 7G-TR0NIC | 40F |
| Code B03 | ECO start/stop function | 33F |
| Code B63 | Vehicle sound iESS | 25F |
| LHD | Left-hand drive vehicle | 23D |
| M42 | Electric oil pump | 34L |
| N10/1 | Front SAM control unit with fuse and relay module | 21L |
| N118 | Fuel pump control unit | 38L |
| N118 | Fuel pump control unit | 38L |
| N15/5 | Electronic selector lever module control unit | 42L |
| N150 | DIRECT SELECT INTERFACE | 46L |
| N3/10 | ME-SFI [ME] control unit | 5L |
| N3/10 | ME-SFI [ME] control unit | 5L |
| N3/10 | ME-SFI [ME] control unit | 4L |
| N3/10 | ME-SFI [ME] control unit | 11L |
| N3/10 | ME-SFI [ME] control unit | 11L |
| N3/9 | CDI control unit | 16L |
| N40/1 | Engine sound control unit | 27L |
| RHD | Right-hand drive vehicle | 23D |
| W15/1 | Right footwell ground point | 24F |
| W15/2 | Left footwell ground point | 24E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 22A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 28A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 36A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 44A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 50A |
| Y3/8 | Fully integrated transmission control control unit | 31L |
| Y3/8 | Fully integrated transmission control control unit | 50L |
