Check, Adjust Front Fog Lights - AP82.10-P-8260-04V
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 171, 172

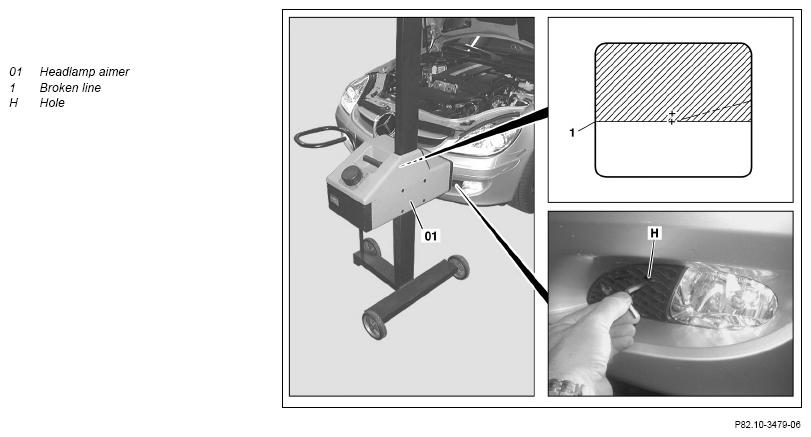

Model 171 shown
The light-dark boundary of the light beam must be horizontal at the height of the separating line (1) in the headlamp aimer (01).
- Check fog lamp setting.
Correct fog lamp setting
↓
No further check required, fog lamp setting completed
Incorrect fog lamp setting
↓
Correct fog lamp setting by turning setting screw. Setting screw is accessible through bore (H).
