Check Setting Of High Beam - AP82.10-P-8260-02V
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 171, 172
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of explosion
/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components on xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by swallowing of/skin contact with toxic salts and mercury compounds. |
Do not touch parts conducting high voltage. Persons with active electronic implants (e.g. cardiac pacemakers) must never work on xenon headlamps. Switch off the entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the danger zone. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A |

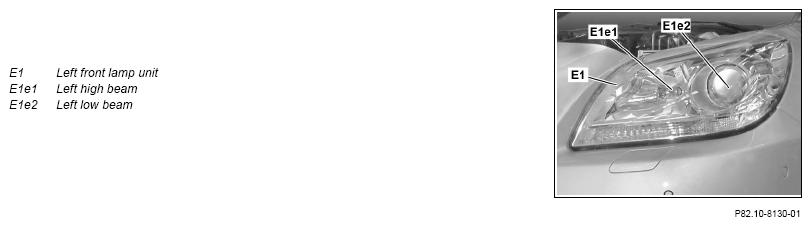

Halogen headlamp, SAE version; shown: model 172 up to model year 2017

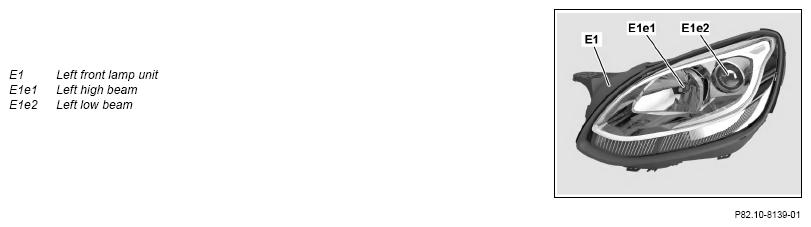

Halogen headlamp, SAE version; shown: model 172 as of model year 2017

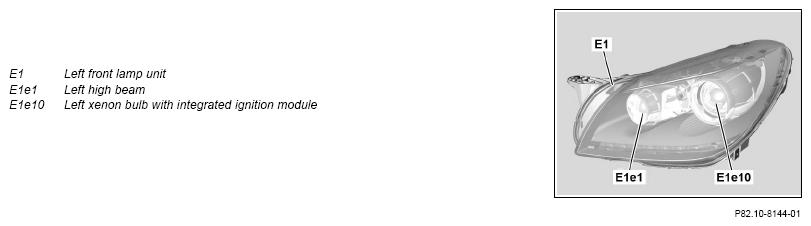

Bi-xenon headlamps, ECE version

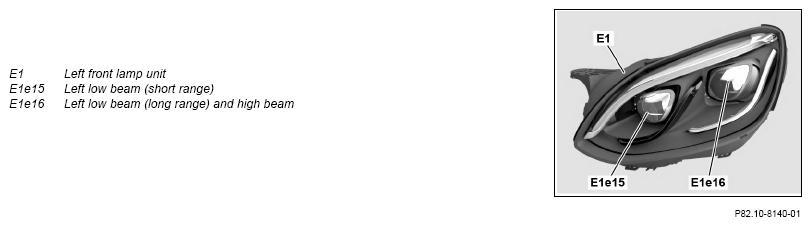

Dynamic LED headlamps, SAE version

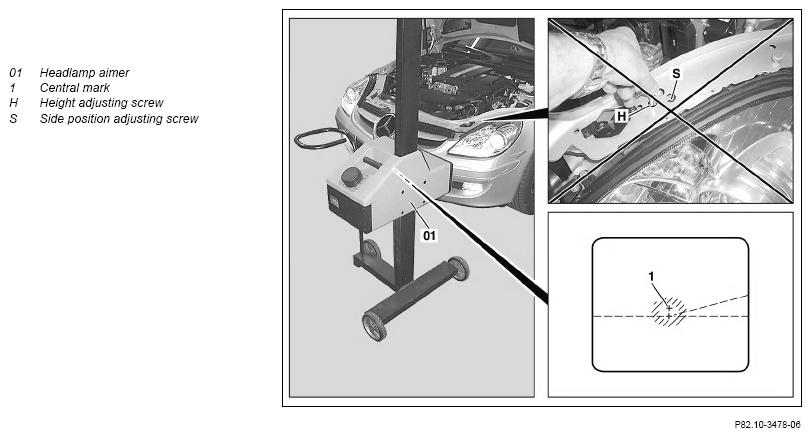

Model 171 shown
- Align headlamp adjuster (01) parallel to vehicle level with left high beam (E1e1) or left low beam (long range) (E1e16) as well as on the right.
- Check setting of high beam.
Corrections must not be made to the adjustment screws (H, S) on the headlamp.
Otherwise, the previously adjusted low beams will be mis-adjusted.
The center of the light beam must be positioned on the central mark (1) in the headlamp aimer (01).
If headlamp adjustment is not correct.
↓
Rectify problem subject to separate repair order.
