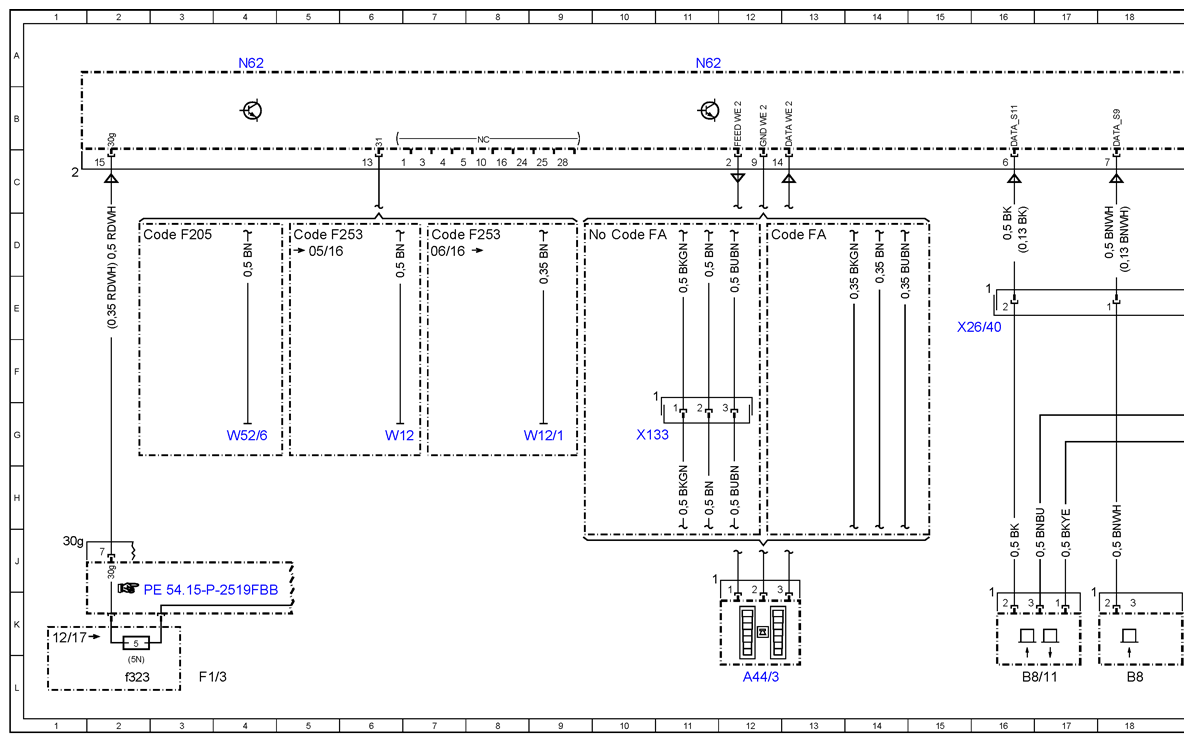

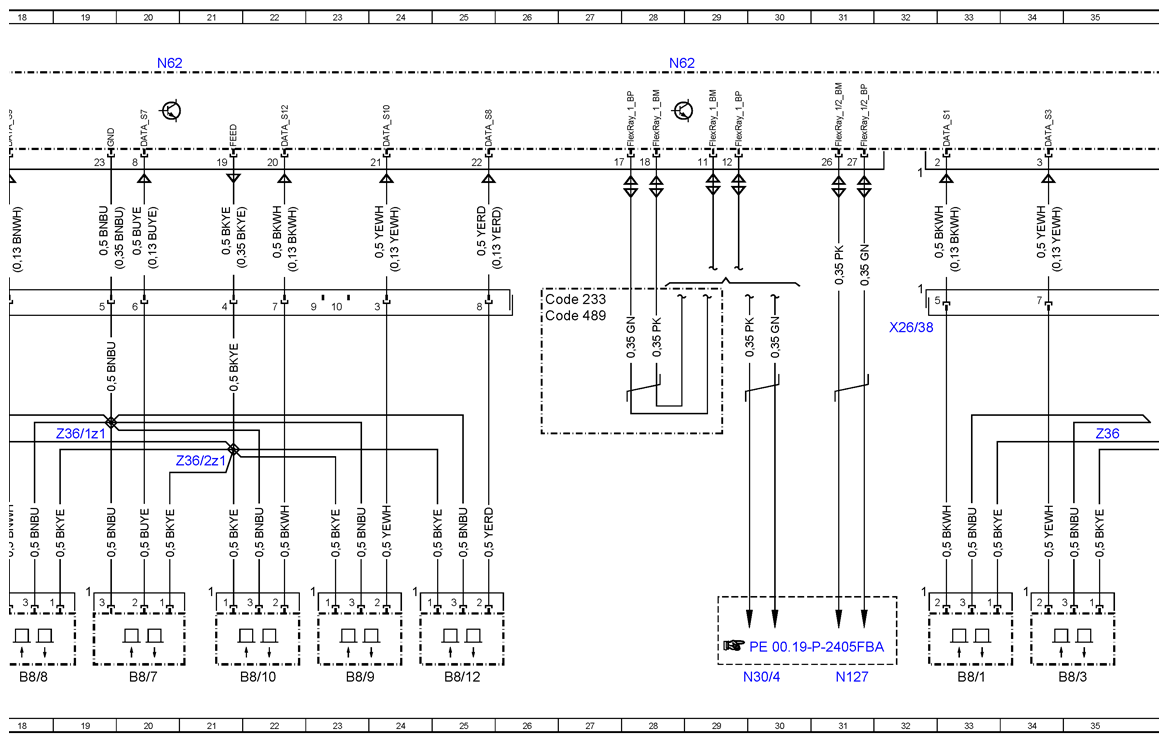

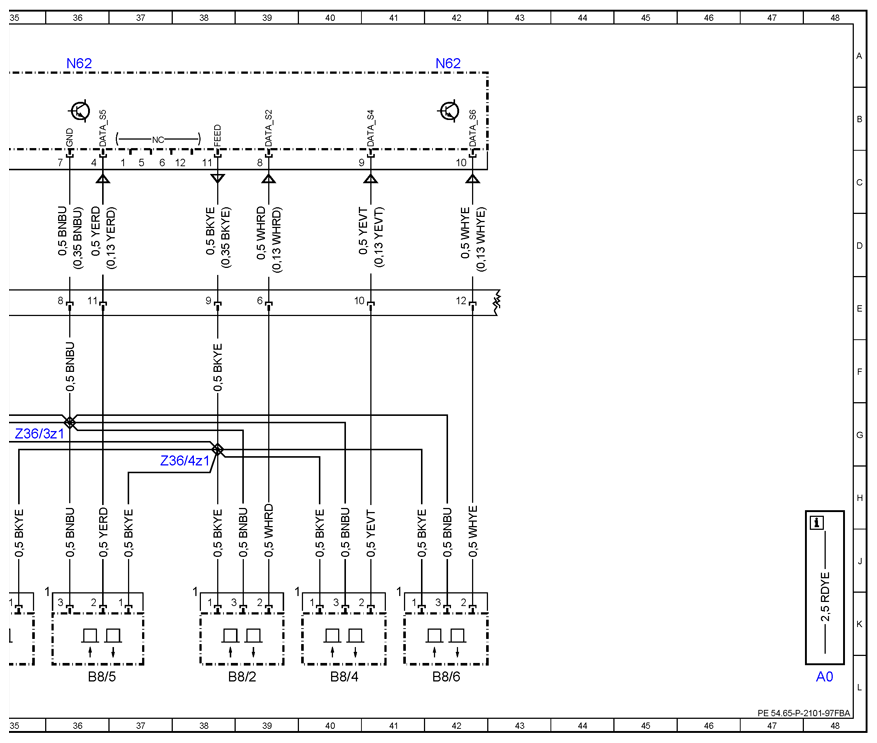

Wiring Diagram For Parktronic System (PTS) Control Unit - PE54.65-P-2101-97FBA
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) Control unit N62 Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist with PARKTRONIC) Control unit N62
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A44/3 | Rear parking system indicator | 12L |
| B8/1 | Outer left front parking system distance sensor | 33L |
| B8/10 | Outer left rear parking system distance sensor | 22L |
| B8/11 | Center left rear parking system distance sensor | 16L |
| B8/12 | Center right rear parking system distance sensor | 25L |
| B8/2 | Center left front parking system distance sensor | 38L |
| B8/3 | Inner left front parking system distance sensor | 35L |
| B8/4 | Inner right front parking system distance sensor | 40L |
| B8/5 | Center right front parking system distance sensor | 36L |
| B8/6 | Outer right front parking system distance sensor | 42L |
| B8/7 | Outer right rear parking system distance sensor | 20L |
| B8/8 | Inner right rear parking system distance sensor | 18L |
| B8/9 | Inner left rear parking system distance sensor | 23L |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 26E |
| Code 489 | AIR BODY CONTROL | 26E |
| Code F205 | MODEL SERIES 205 | 2D |
| Code F253 | MODEL SERIES 253 | 5D |
| Code F253 | MODEL SERIES 253 | 7D |
| Code FA | CABRIOLET | 12D |
| Code FA | CABRIOLET | 10D |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f323 | Electrical fuse 323 | 2L |
| N127 | Drivetrain control unit | 31L |
| N30/4 | Electronic Stability Program control unit | 30L |
| N62 | Parking system control unit | 4A |
| N62 | Parking system control unit | 11A |
| N62 | Parking system control unit | 20A |
| N62 | Parking system control unit | 28A |
| N62 | Parking system control unit | 36A |
| N62 | Parking system control unit | 42A |
| W12 | Ground point (center console) | 6G |
| W12/1 | Right center console ground point | 9G |
| W52/6 | Right center longitudinal member ground point | 4G |
| X133 | Roof/vehicle interior electrical connector | 10G |
| X26/38 | Front bumper and frame wiring harness electrical connector | 32E |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 16E |
| Z36/1z1 | Rear parking system sensors ground line connector sleeve | 19G |
| Z36/2z1 | Rear parking system sensors power supply connector sleeve | 21G |
| Z36/3z1 | Front parking system sensors ground line connector sleeve | 35G |
| Z36/4z1 | Front parking system sensors positive line connector sleeve | 38G |
