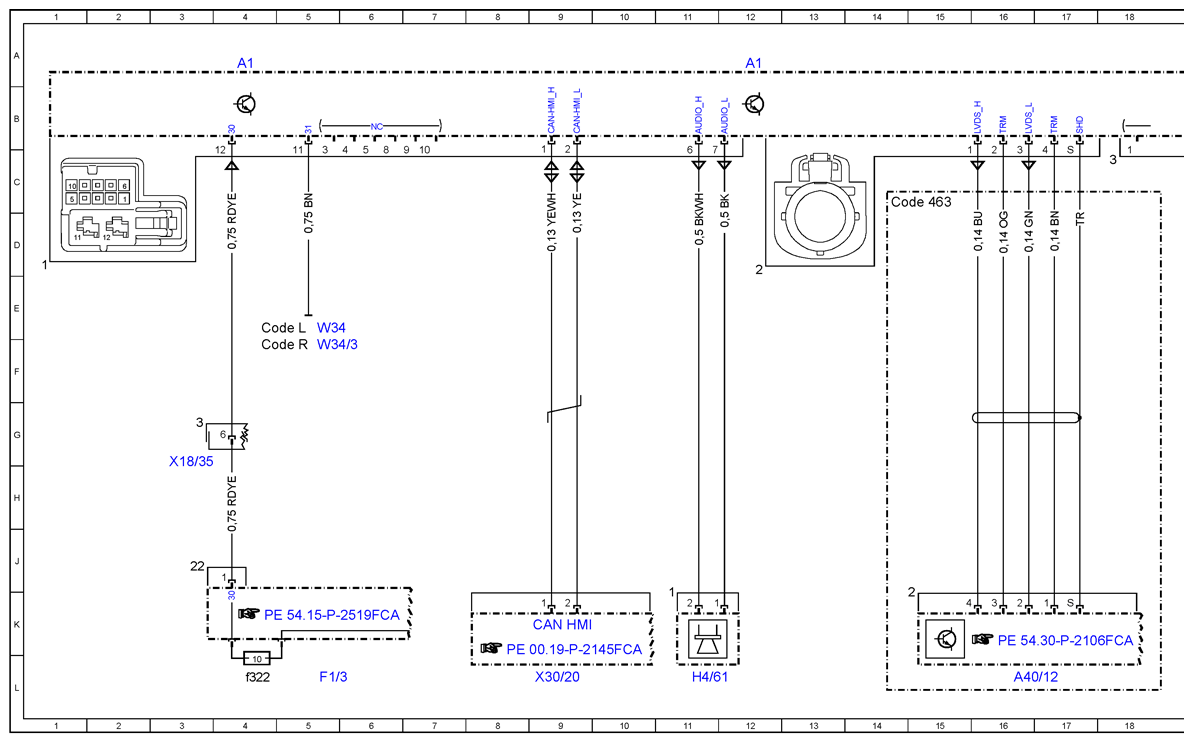

Wiring Diagram For Instrument Cluster (IC) Control Unit - PE54.30-P-2101-97FCA
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020 A1HIGH Model 253.99 as of model year 2019 with code 9O1 (Fuel cell pre-installation) A1
| Code: | Designation: | Position: |
|---|---|---|

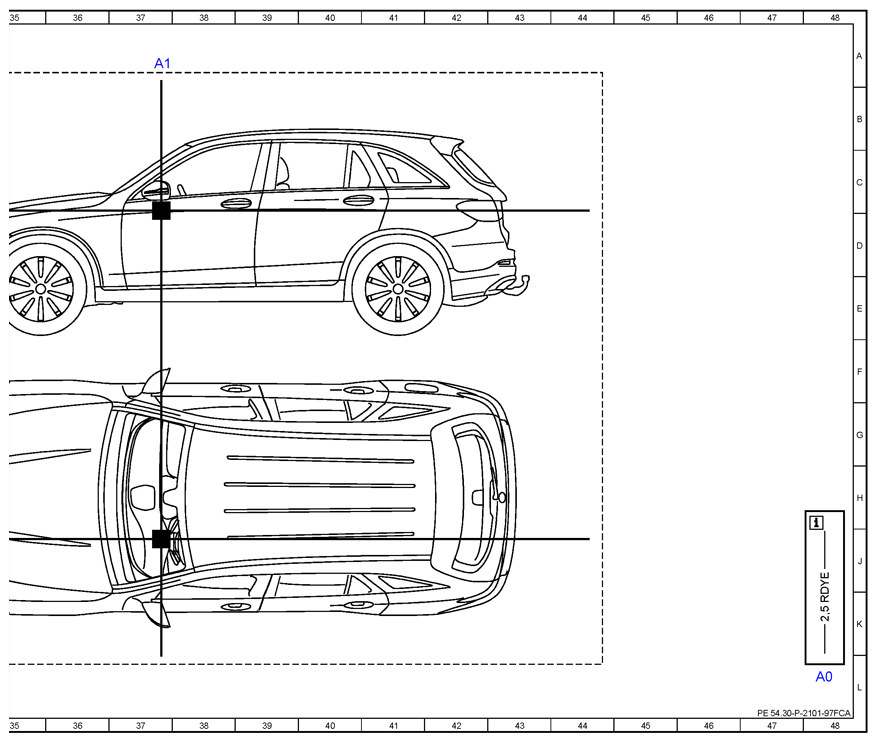

| A0 | Use of wiring diagrams | 48L |

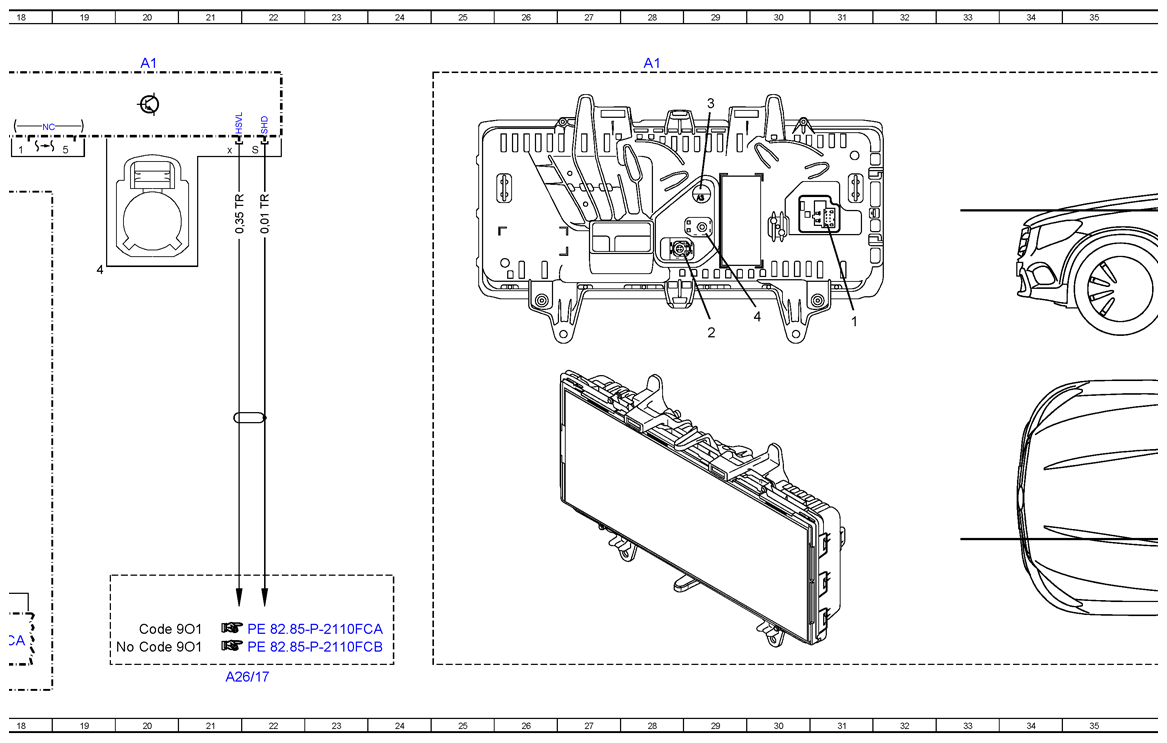

| A1 | Instrument cluster | 4A |
| A1 | Instrument cluster | 12A |
| A1 | Instrument cluster | 20A |
| A1 | Instrument cluster | 28A |
| A1 | Instrument cluster | 37A |
| A26/17 | Head unit | 21L |
| A40/12 | Head-up d i splay | 16L |
| CAN MMI | User interface CAN | 9K |
| Code 463 | Head-up d i splay | 14C |
| Code 901 | Fuel cell retrofitting | 20K |
| Code 901 | Fuel cell retrofitting | 20K |
| Code L | LEFT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 4F |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3f322 | Fuse 322 | 4L |
| H4/61 | Instrument cluster speaker | 11L |
| W34 | Left footwell ground point | 5E |
| W34/3 | Right footwell ground point | 5F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 3H |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 9L |
