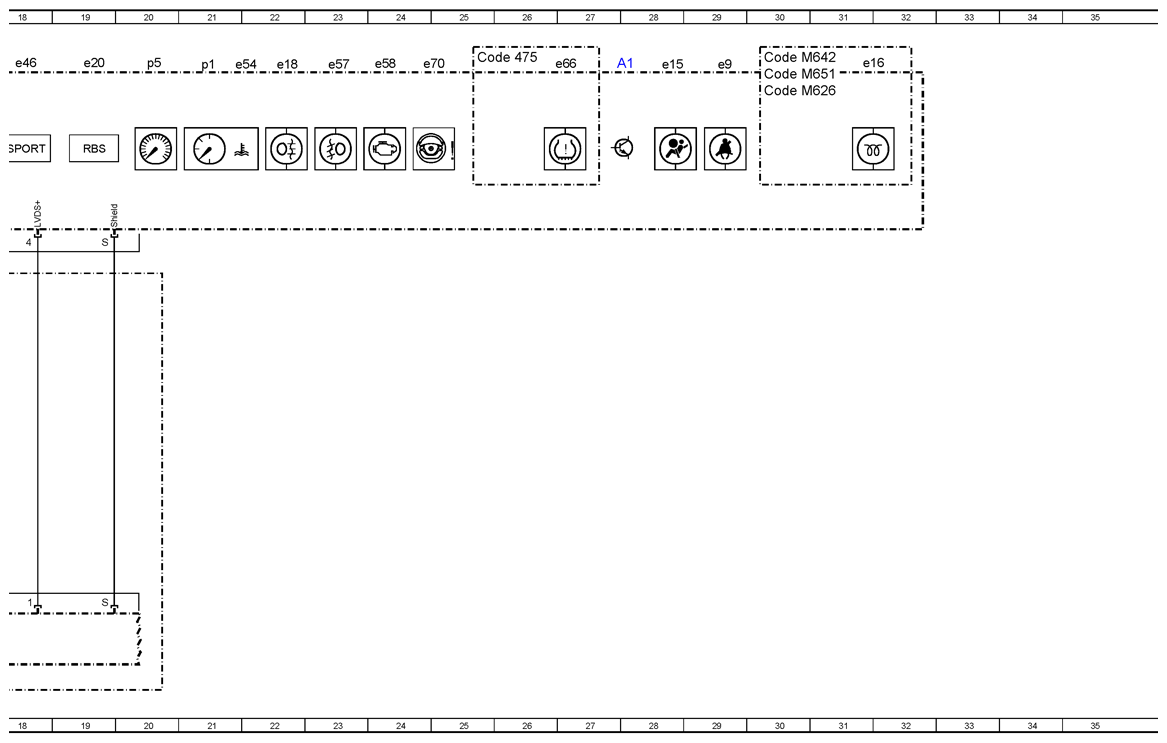

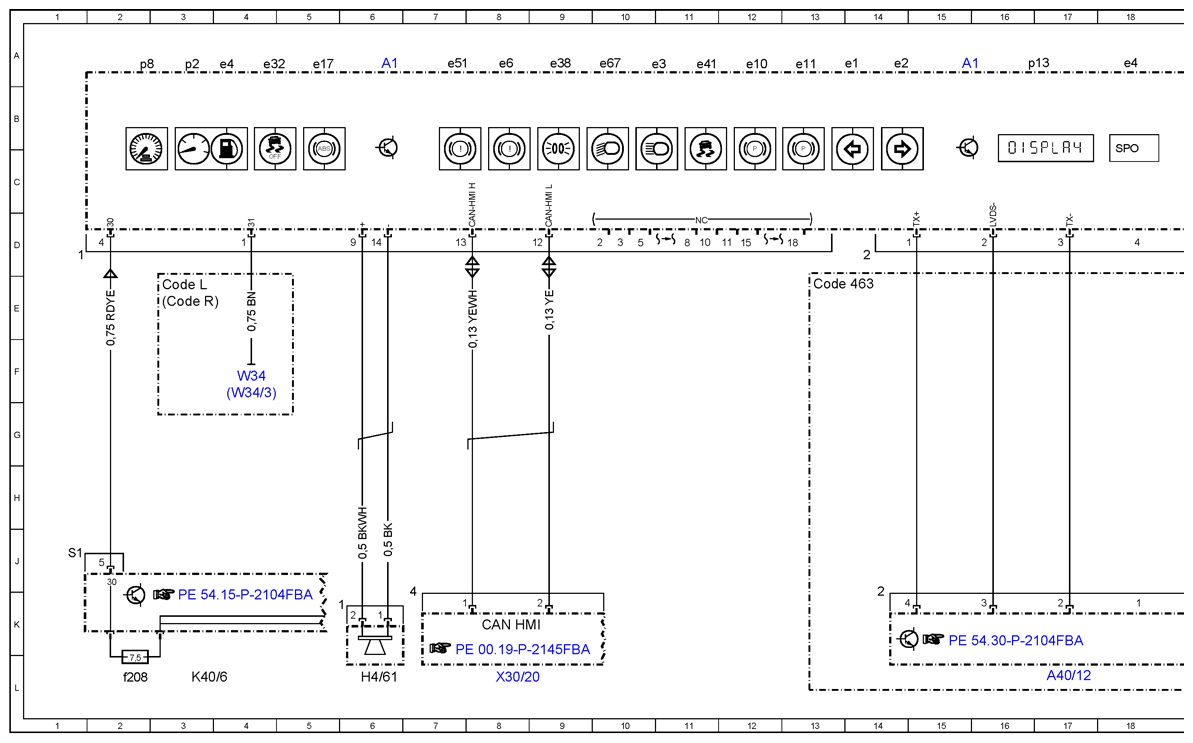

Wiring Diagram For Instrument Cluster (IC) Control Unit - PE54.30-P-2101-97FBA
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Control unit A1 Model 253 (except 253.99) up to model year 2020 Control unit A1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A1 | Instrument cluster | 6A |
| A1 | Instrument cluster | 15A |
| A1 | Instrument cluster | 28A |
| A1e1 | Left turn signal indicator light | 14A |
| A1e10 | Parking brake indicator lamp | 12A |
| A1e11 | Parking brake indicator lamp | 13A |
| A1e15 | Supplemental restraint system indicator lamp | 28A |
| A1e16 | Preglow indicator lamp | 31A |
| A1e17 | Anti lock brake system indicator lamp | 5A |
| A1e18 | Rear fog lamp indicator lamp | 22A |
| A1e2 | Right turn signal indicator light | 14A |
| A1e20 | Regenerative braking system indicator lamp | 19A |
| A1e3 | High beam indicator lamp | 10A |
| A1e32 | ESP®/ASR OFF warning lamp | 4A |
| A1e38 | Standing lamps indicator lamp | 9A |
| A1e4 | Fuel reserve indicator lamp | 4A |
| A1e41 | Electronic Stability Program warning lamp | 11A |
| A1e46 | ESP SPORT indicator lamp | 18A |
| A1e51 | Brake system warning lamp | 7A |
| A1e54 | Coolant temperature warning lamp | 21A |
| A1e57 | Front fog lamps indicator lamp | 23A |
| A1e58 | Engine diagnosis indicator lamp | 24A |
| A1e6 | Brake fluid and parking brake indicator lamp | 8A |
| A1e66 | Tire pressure monitor warning lamp | 27A |
| A1e67 | Low beam indicator lamp | 10A |
| A1e70 | Power steering warning lamp | 24A |
| A1e9 | Seat belt warning lamp | 29A |
| A1p1 | Coolant temperature gauge | 21A |
| A1p13 | Multifunction display | 16A |
| A1p2 | Fuel level indicator | 3A |
| A1p5 | Tachometer | 20A |
| A1p8 | Speedometer | 2A |
| A40/12 | Head-up d i splay | 17L |
| CAN MMI | User interface CAN | 8K |
| Code 463 | Head-up d i splay | 13E |
| Code 475 | Tire pressure monitor | 25A |
| Code L | LEFT-HAND DRIVE | 3E |
| Code M626 | DIESEL ENGINE 0M626 | 30B |
| Code M642 | DIESEL ENGINE OM642 | 30A |
| Code M651 | DIESEL ENGINE OM651 | 30A |
| Code R | RIGHT-HAND DRIVE | 3E |
| H4/61 | Instrument cluster speaker | 6L |
| K40/6 | Driver-side fuse and relay module | 3L |
| K40/6f208 | Fuse 208 | 2L |
| W34 | Left footwell ground point | 4F |
| W34/3 | Right footwell ground point | 4F |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 8L |
