Detach/Attach Belt End Fitting - AR91.40-P-1030-02LWE
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/2, 206, 213, 253, 293
with code 460 (Canada version) Model 205.0/2, 206, 213, 253, 293
with code 494 (US version)
Model 206
with code 51B (Rating, country group EURO-NCAP)
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 206 | Model 213 | |
|---|---|---|---|---|
| BA91.40-P-1012-01U | Screw, cover for seat belt end-fitting tensioner | Nm | 4 | 4 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.0 | Model 205.2 | |
|---|---|---|---|---|
| BA91.40-P-1018-01U | Screw for seat belt end fitting lock washer | Nm | 4 | 4 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA91.40-P-1018-01U | Screw for seat belt end fitting lock washer | Nm | 4 | 4 |

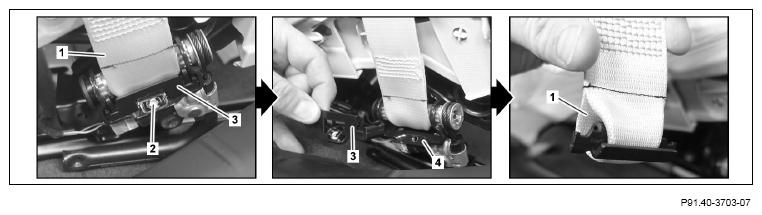

- Unscrew screw (2) and remove cover or seat belt end fitting lock washer (3). Model 205.0/2, 253, 293 with code 460 (Canada version) Model 205.0/2, 253, 293 with code 494 (US version)
Model 206, 213
with code 460 (Canada version)
Model 206, 213
with code 494 (US version)
Model 206
with code 51B (Rating, country group EURO-NCAP)
- Remove seat belt (1) from seat belt end-fitting tensioner (4).
