Remove/Install Control Lever For Accelerator And Brake Pedal - AR86.20-P-0008LWH
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213, 257
with code 45P (Disability conversion - Sales control code) "Multima PRO"
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||

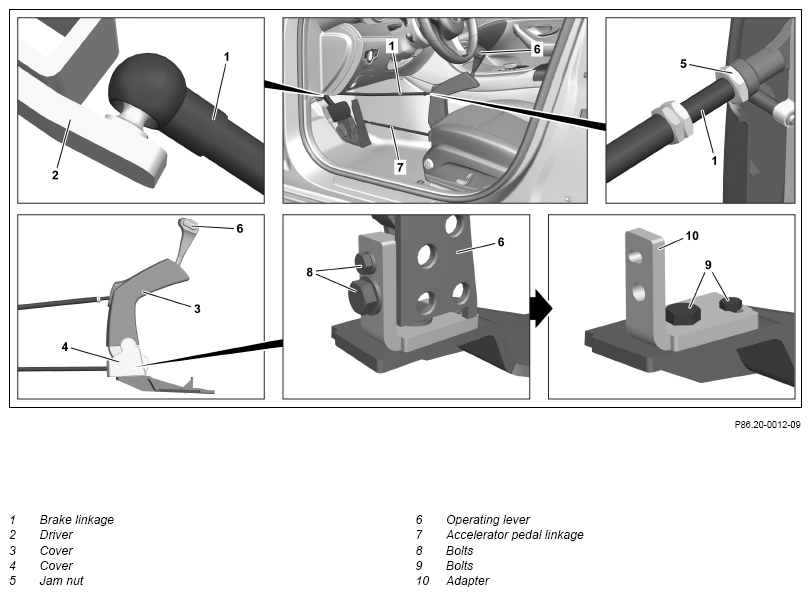

| 1 | Unhook ball head of brake linkage (1) from driver (2) | ||
| 2 | Unclip covers (3, 4) | ||
| 3 | Loosen counternut (5) and remove brake linkage (1) from rod end bearing of control lever (6) | ||
| 4 | Remove accelerator pedal linkage (7) from control lever (6) | ||
| 5 | Remove screws (8) and remove control lever (6) from vehicle | ||
| 6 | Remove screws (9) and remove adapter (10) | When replacing the adapter (10). | |
| Install | |||
| 7 | Position adapter (10) and screw in screws (9) slightly by hand | When replacing the adapter (10). | |
| 8 | Position control lever (6) on adapter (10), screw in screws (8) slightly by hand and align control lever (6) | When replacing the adapter (10). | |
| 9 | Remove screws (8) again, remove control lever (6) and tighten screws (9) | When replacing the adapter (10). | |
| *BA86.20-P-1009-04A | |||
| *BA86.20-P-1010-04A | |||
| 10 | Position control lever (6) on adapter (10) and tighten screws (8) | *BA86.20-P-1011-04A | |
| *BA86.20-P-1012-04A | |||
| 11 | Attach accelerator pedal linkage (7) to control lever (6) | ||
| 12 | Screw brake linkage (1) into rod end bearing of control lever (6) and tighten counternut (5) | *BA86.20-P-1016-04A | |
| 13 | Clip in covers (3, 4) | ||
| 14 | Hook ball head of brake linkage (1) into driver (2) |
||
| Check | |||
| 15 | Check adjustment of brake linkage (1) and accelerator pedal linkage (7) | The complete brake and accelerator pedal travel must be achieved via the control lever (6). |
|
| Brake linkage play | *BE86.20-P-1005-01A | ||
| If a problem arises ↓ Adjust the brake linkage (1) and accelerator pedal linkage (7) accordingly. |
|||
| *BA86.20-P-1016-04A |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BE86.20-P-1005-01A | Brake linkage play | mm | < | < |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | ||
|---|---|---|---|---|---|
| BA86.20-P-1009-04A | Screw/bolt, operating lever adapter to bracket (Multima PRO) | M6 | Nm | 10 | 10 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | ||
|---|---|---|---|---|---|
| BA86.20-P-1010-04A | Screw/bolt, operating lever adapter to bracket (Multima PRO) | M10 | Nm | 25 | 25 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | ||
|---|---|---|---|---|---|
| BA86.20-P-1011-04A | Screw/bolt, operating lever to adapter (Multima PRO) | M6 | Nm | 10 | 10 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | ||
|---|---|---|---|---|---|
| BA86.20-P-1012-04A | Screw/bolt, operating lever to adapter (Multima PRO) | M10 | Nm | 25 | 25 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1016-04A | Counternut, brake linkage to control lever (Classic/Easy Speed/Multima PRO) | Nm | 25 | 25 |
