Remove/Install Control Lever For Accelerator And Brake Pedal - AR86.20-P-0008LWF
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213, 257
with code 45P (Disability conversion - Sales control code) "Easy Speed"
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

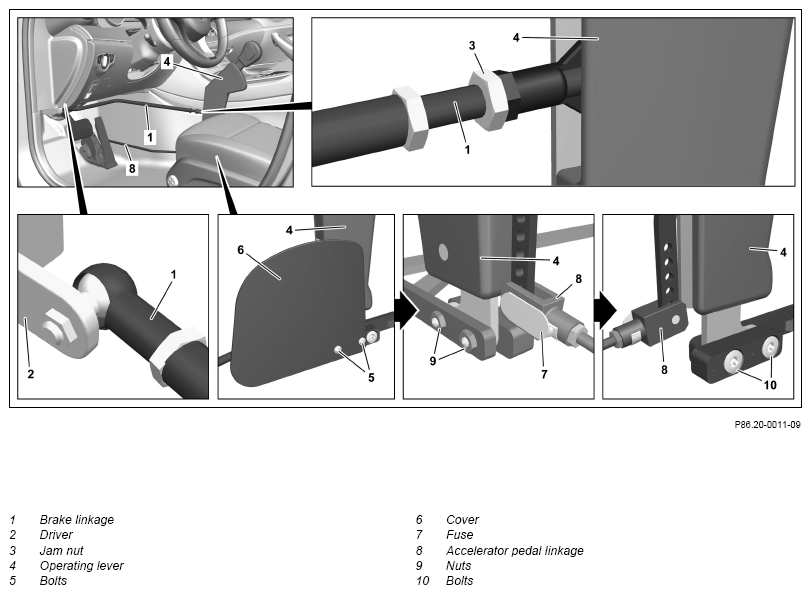

| 1 | Unhook ball head of brake linkage (1) from driver (2) | ||
| 2 | Loosen counternut (3) and remove brake linkage (1) from rod end bearing of control lever (4) | *BA86.20-P-1016-04A | |
| 3 | Remove screws (5) and remove cover (6) from control lever (4) | ||
| 4 | Remove locking clip (7) and unhook accelerator pedal linkage (8) from control level (4) | ||
| 5 | Unscrew nuts (9). | *BA86.20-P-1008-04A | |
| 6 | Remove screws (10) and remove control lever (4) from vehicle | *BA86.20-P-1008-04A | |
| 7 | Install in the reverse order | ||
| Check | |||

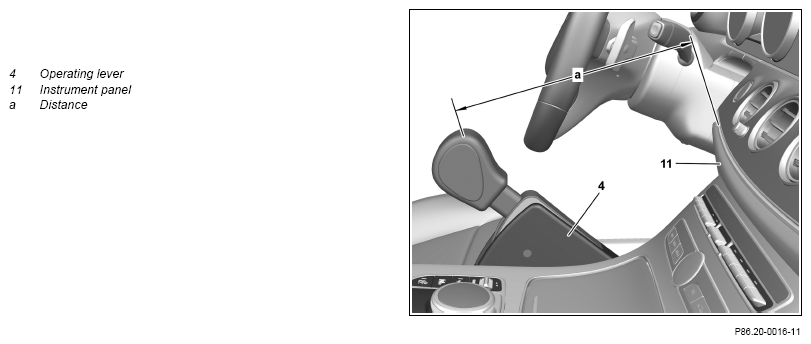

| 8 | Check distance (a) | Distance from operating lever (Easy Speed) to instrument panel If a problem arises ↓ Adjust distance (a) on brake linkage (1). |
*BE86.20-P-1002-01A |
| *BA86.20-P-1016-04A | |||
| 9 | Check adjustment of brake linkage (1) and accelerator pedal linkage (8) | The complete brake and accelerator pedal travel must be achieved via the control lever (4). |
|
| Brake linkage play If a problem arises ↓ Adjust the brake linkage (1) and accelerator pedal linkage (8) accordingly. |
*BE86.20-P-1005-01A | ||
| *BA86.20-P-1016-04A |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BE86.20-P-1002-01A | Distance from operating lever (Easy Speed) to instrument panel | mm | 310 | 310 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BE86.20-P-1005-01A | Brake linkage play | mm | < | < |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1008-04A | Screw/bolt/nut, operating lever to bracket (Easy Speed) | Nm | 25 | 25 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1016-04A | Counternut, brake linkage to control lever (Classic/Easy Speed/Multima PRO) | Nm | 25 | 25 |
