(Raise/Prop Up Vehicle With Vehicle Lift - AR00.60-P-1005-01B)
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 167
with code M036 (Maybach version)
Running boards installed
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A | ||
| 000 588 00 80 00 Vehicle lift | WS00.00-P-0040B |

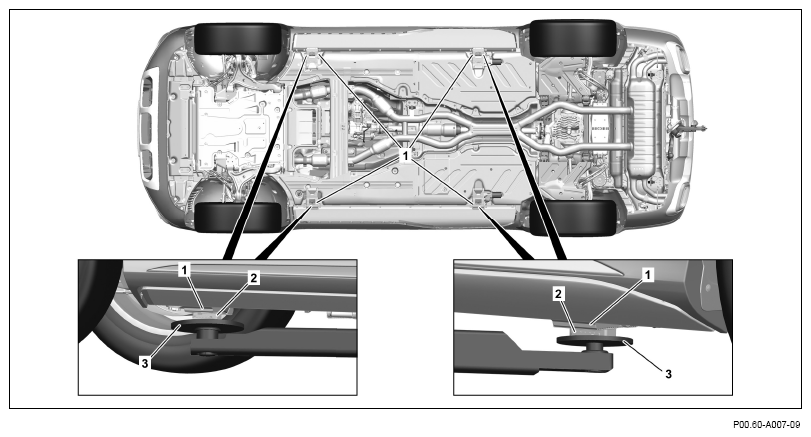

- Retract running boards (1).
All doors must be closed and the transmission position P must be engaged.
- Deactivate running boards (1) via head unit.
- Attach
adapters (2) to support plates (3).
- Turn support plates (3) of vehicle lift support arms until the
- Lift vehicle with lifting platform.
