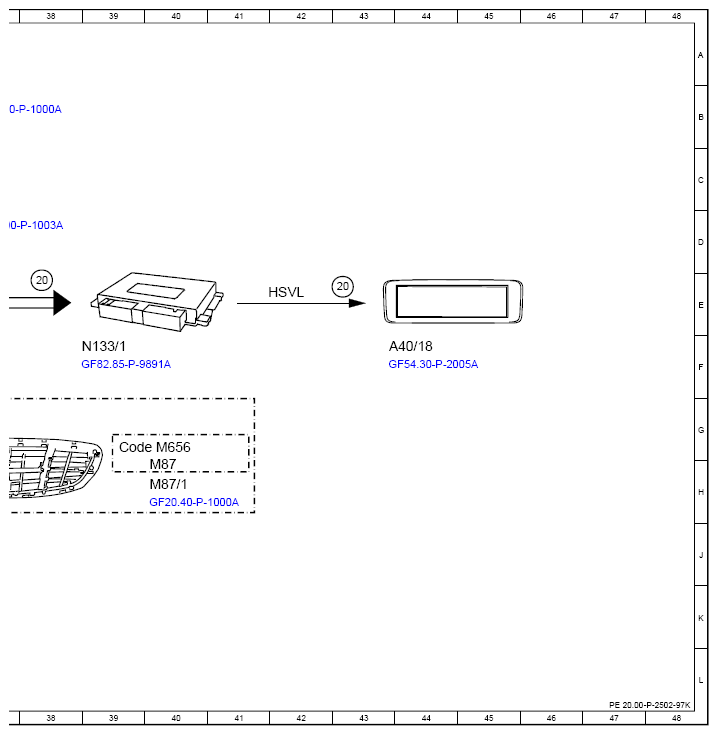

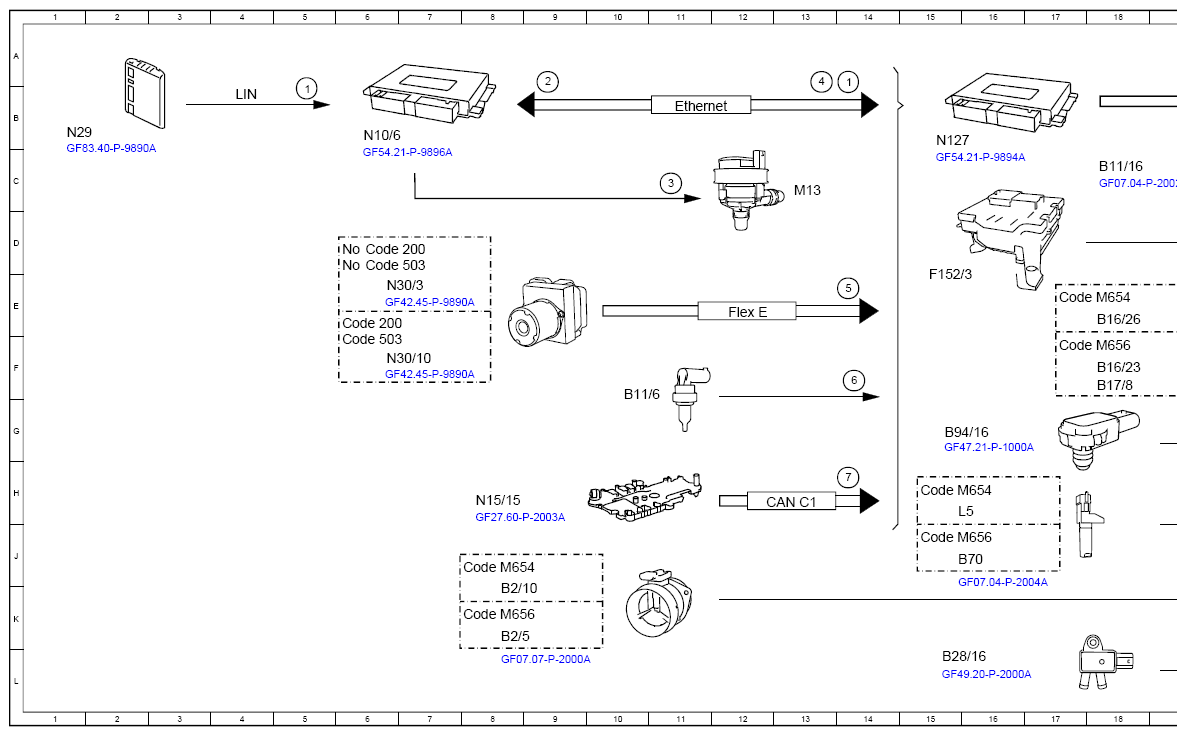

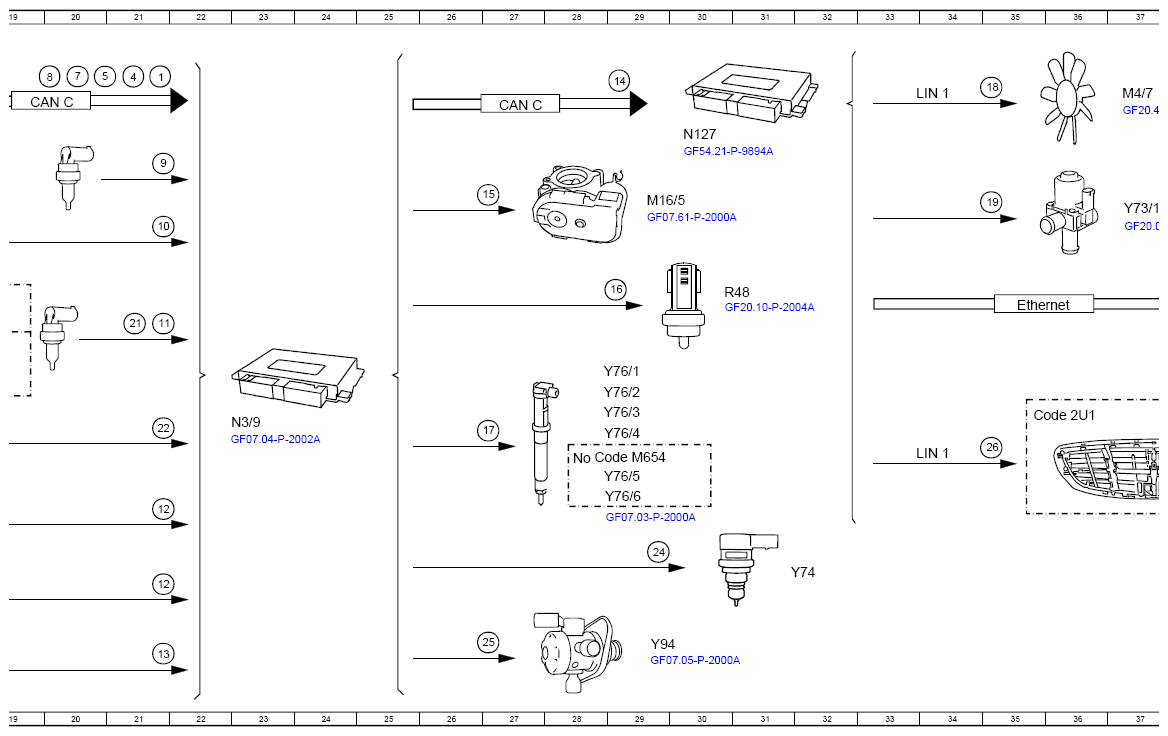

(Function Schematic For Heat Management - PE20.00-P-2502-97K)
Engine 654 in model 206, 254
Engine 656 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 5B |
| 1 | Air conditioning, status | 14A |
| 1 | Air conditioning, status | 21A |
| 10 | Circuit 87, status | 21D |
| 11 | Temperature sensor upstream of diesel particulate filter, signal | 21E |
| 12 | Engine speed, signal | 21H |
| 12 | Engine speed, signal | 21K |
| 13 | Differential pressure sensor (DPF), signal | 21L |
| 14 | Transmission control diagnosis, communication | 29A |
| 15 | Throttle valve actuator motor, actuation | 27C |
| 16 | Coolant thermostat heating element, actuation | 29E |
| 17 | Fuel injectors, actuation | 27G |
| 18 | Fan motor, target motor speed request | 35B |
| 19 | Low-temperature circuit switchover valve, actuation | 35C |
| 2 | Low-temperature circuit circulation pump 1, request | 9B |
| 20 | Instrument cluster, message | 43E |
| 20 | Instrument cluster, message | 38E |
| 21 | Charge air temperature sensor, signal | 21E |
| 22 | Fuel temperature, signal | 21G |
| 24 | Pressure regulator valve, actuation | 29J |
| 25 | Quantity control valve, actuation | 27K |
| 26 | Radiator shutters actuator, actuation | 35G |
| 3 | Low-temperature circuit circulation pump 1, actuation | 11C |
| 4 | Outside temperature sensor, signal | 21A |
| 4 | Outside temperature sensor, signal | 13A |
| 5 | Wheel speed, signal | 14E |
| 5 | Wheel speed, signal | 20A |
| 6 | Coolant temperature, signal | 14F |
| 7 | Transmission control, status | 14H |
| 7 | Transmission control, status | 20A |
| 8 | Throttle valve position, signal | 20A |
| 9 | Coolant temperature sensor, signal | 21C |
| A40/18 | Instrument cluster display | 43F |
| B11/16 | Coolant temperature sensor | 18C |
| B11/6 | Coolant temperature sensor | 10F |
| B16/23 | Exhaust temperature sensor | 18F |
| B16/26 | Temperature sensor | 18E |
| B17/8 | Charge air temperature sensor | 18F |
| B2/10 | Hot film mass air flow sensor | 8K |
| B2/5 | Hot film mass air flow sensor | 8K |
| B28/16 | Diesel particulate filter differential pressure sensor | 15L |
| B70 | Crankshaft Hall sensor | 15J |
| B94/16 | Fuel pressure/temperature sensor | 15G |
| CAN C | CAN for engine | 27B |
| CAN C | CAN for engine | 19B |
| CAN C1 | CAN 1 for drive | 13H |
| Code 200 | Conditionally automated driving | 6E |
| Code 200 | Conditionally automated driving | 6D |
| Code 2U1 | Radiator shutters | 35G |
| Code 503 | Remote-controlled parking | 6D |
| Code 503 | Remote-controlled parking | 6F |
| Code M654 | R4 diesel engine OM654 | 8J |
| Code M654 | R4 diesel engine OM654 | 15H |
| Code M654 | R4 diesel engine OM654 | 17E |
| Code M654 | R4 diesel engine OM654 | 28H |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 8K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 15J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 17F |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 39G |
| Ethernet | Ethernet | 11B |
| Ethernet | Ethernet | 35E |
| F152/3 | Fuse and relay module | 15E |
| Flex E | Chassis FlexRay | 12E |
| HSVL | High-speed video link | 42E |
| L5 | Crankshaft Hall sensor | 15H |
| LIN | Local Interconnect Network | 4B |
| LIN 1 | Local Interconnect Network | 34B |
| LIN 1 | Local Interconnect Network | 34G |
| M13 | Circulation pump | 13C |
| M16/5 | Throttle valve actuator | 29C |
| M4/7 | Fan | 37B |
| M87 | Radiator shutters actuator motor | 40H |
| M87/1 | Radiator shutters actuator motor | 40H |
| N10/6 | Front signal acquisition and actuation module control unit | 6B |
| N127 | Drivetrain control unit | 30B |
| N127 | Drivetrain control unit | 15B |
| N133/1 | Instrument cluster control unit | 38F |
| N15/15 | Fully integrated transmission control electric controller unit | 8H |
| N29 | Blower regulator | 1B |
| N3/9 | Engine management control unit | 22G |
| N30/10 | Electronic Stability Program control unit | 7F |
| N30/3 | Electronic Stability Program control unit | 6E |
| R48 | Coolant thermostat heating element | 30E |
| Y73/1 | Coolant directional control valve | 37D |
| Y74 | Pressure regulator valve | 32J |
| Y76/1 | Fuel injector | 28F |
| Y76/2 | Fuel injector | 28F |
| Y76/3 | Fuel injector | 28G |
| Y76/4 | Fuel injector | 28G |
| Y76/5 | Fuel injector | 28H |
| Y76/6 | Fuel injector | 28H |
| Y94 | Quantity control valve | 29L |
