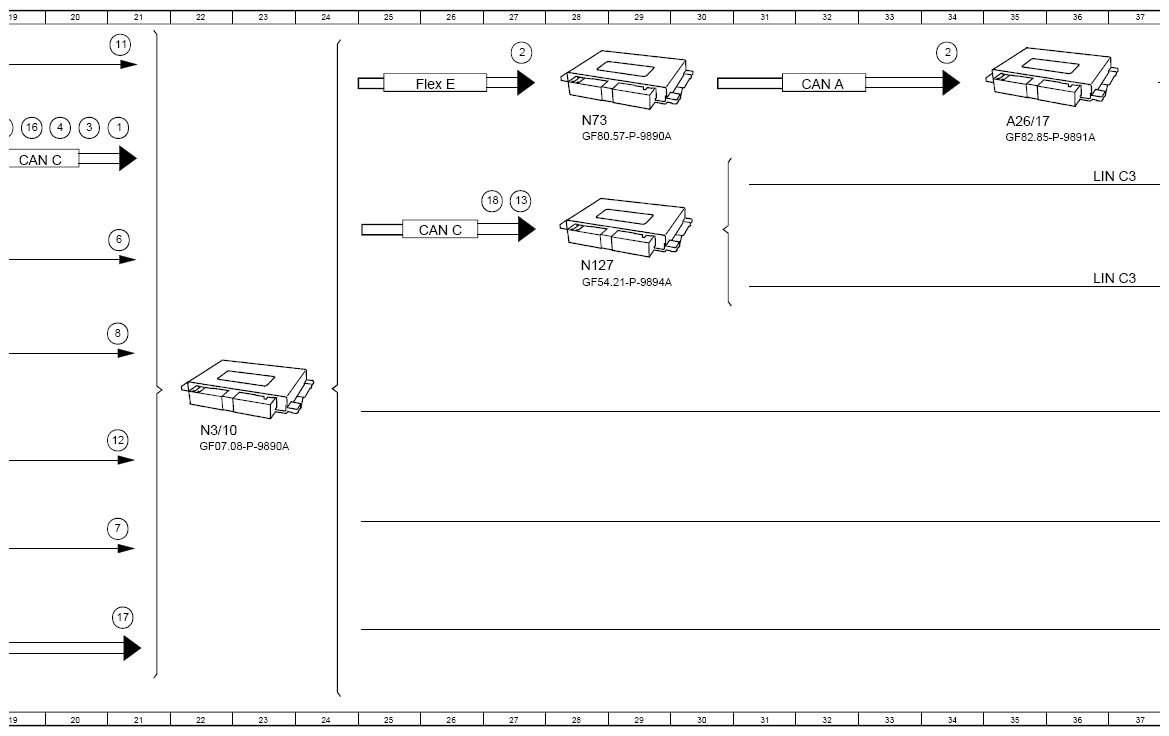

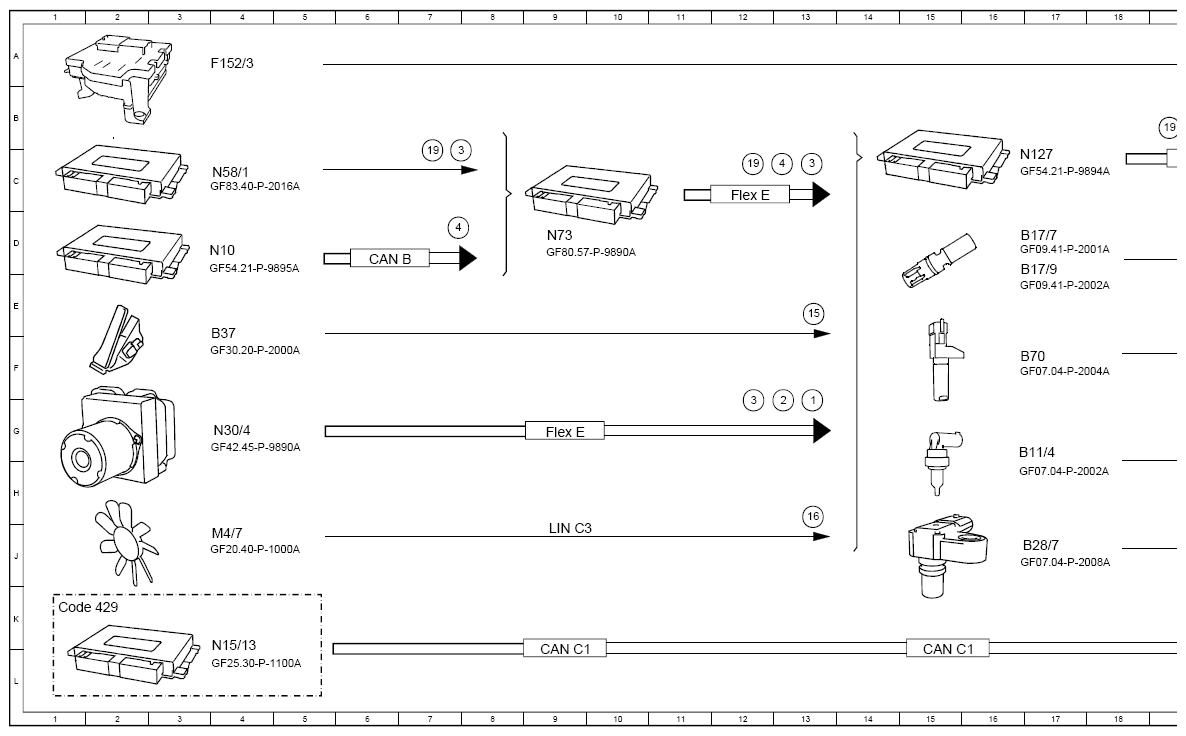

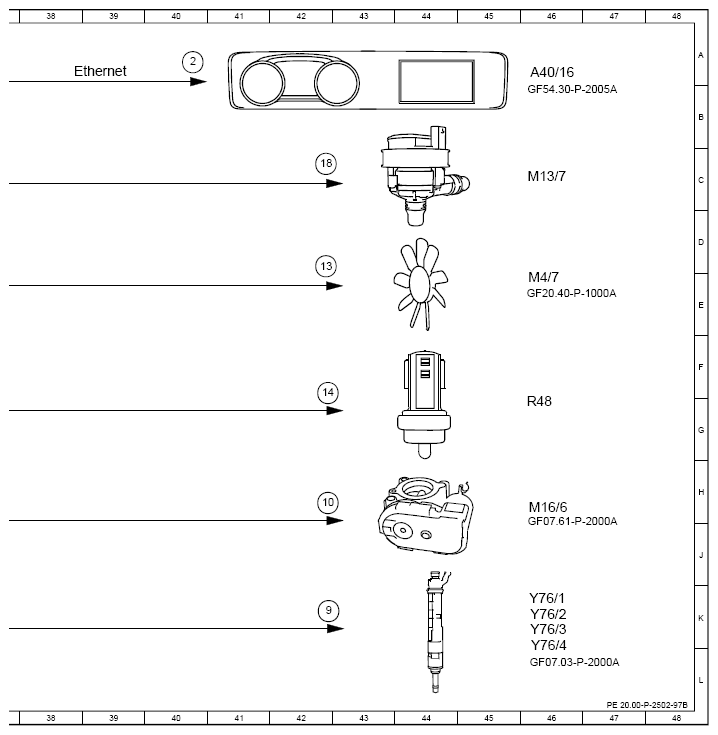

(Function Schematic For Heat Management - PE20.00-P-2502-97B)
Engine 282 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 13G |
| 1 | Wheel speed, signal | 21B |
| 10 | Actuator motor, throttle valve actuator, actuation | 42H |
| 11 | Circuit 87, status | 21A |
| 12 | Coolant temperature sensor, signal | 21G |
| 13 | Fan motor, specified rpm request | 27C |
| 13 | Fan motor, specified rpm request | 42D |
| 14 | Coolant thermostat heating element, actuation | 42G |
| 15 | Accelerator pedal sensor, signal | 13E |
| 16 | Fan motor, status | 13J |
| 16 | Fan motor, status | 19B |
| 17 | Transmission control, status | 21K |
| 18 | Transmission oil cooling coolant circulation pump, actuation | 42C |
| 18 | Transmission oil cooling coolant circulation pump, actuation | 27C |
| 19 | Fan motor, request | 12C |
| 19 | Fan motor, request | 7C |
| 19 | Fan motor, request | 19B |
| 2 | Instrument cluster, message | 40A |
| 2 | Instrument cluster, message | 27A |
| 2 | Instrument cluster, message | 34A |
| 2 | Instrument cluster, message | 13G |
| 3 | Air conditioning, status | 8C |
| 3 | Air conditioning, status | 13C |
| 3 | Air conditioning, status | 20B |
| 3 | Air conditioning, status | 12G |
| 4 | Outside temperature, signal | 8D |
| 4 | Outside temperature, signal | 13C |
| 4 | Outside temperature, signal | 20B |
| 6 | Charge air temperature sensor, signal | 21D |
| 7 | Engine load, signal | 21J |
| 8 | Engine speed, signal | 21E |
| 9 | Fuel injectors, actuation | 43K |
| A26/17 | Head unit | 35B |
| A40/16 | Head unit/instrument cluster display cluster | 46A |
| B11/4 | Coolant temperature sensor | 17G |
| B17/7 | Charge air temperature sensor upstream of throttle valve | 17D |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 17D |
| B28/7 | Pressure sensor downstream of throttle valve | 17J |
| B37 | Accelerator pedal sensor | 4F |
| B70 | Crankshaft Hall sensor | 17F |
| CAN A | Telematics CAN | 32B |
| CAN B | Interior CAN | 6D |
| CAN C | Engine CAN | 26D |
| CAN C | Engine CAN | 19C |
| CAN C1 | Drive train CAN | 9L |
| CAN C1 | Drive train CAN | 15L |
| Code 429 | 7G-DCT | 1K |
| Ethernet | Ethernet | 39A |
| F152/3 | Engine compartment fuse and relay module | 4A |
| Flex E | Chassis FlexRay | 26B |
| Flex E | Chassis FlexRay | 12C |
| Flex E | Chassis FlexRay | 9G |
| LIN C3 | Drivetrain LIN | 36C |
| LIN C3 | Drivetrain LIN | 9J |
| LIN C3 | Drivetrain LIN | 36E |
| M13/7 | Transmission oil cooling coolant circulation pump | 46C |
| M16/6 | Throttle valve actuator | 46H |
| M4/7 | Fan motor | 4J |
| M4/7 | Fan motor | 46E |
| N10 | Central control module | 4D |
| N127 | Drivetrain control unit | 17C |
| N127 | Drivetrain control unit | 28D |
| N15/13 | Double clutch transmission control unit | 4L |
| N3/10 | ME-SFI [ME] control unit | 22G |
| N30/4 | Electronic Stability Program control unit | 4G |
| N58/1 | Climate control operating unit | 4C |
| N73 | Electronic ignition switch control unit | 9D |
| N73 | Electronic ignition switch control unit | 28B |
| R48 | Coolant thermostat heating element | 46G |
| Y76/1 | Cylinder 1 fuel injector | 46K |
| Y76/2 | Cylinder 2 fuel injector | 46K |
| Y76/3 | Cylinder 3 fuel injector | 46K |
| Y76/4 | Cylinder 4 fuel injector | 46L |
