Remove/Install Coolant Expansion Reservoir - AR20.30-P-4949MRK

Engine 264, 274 In Model 167

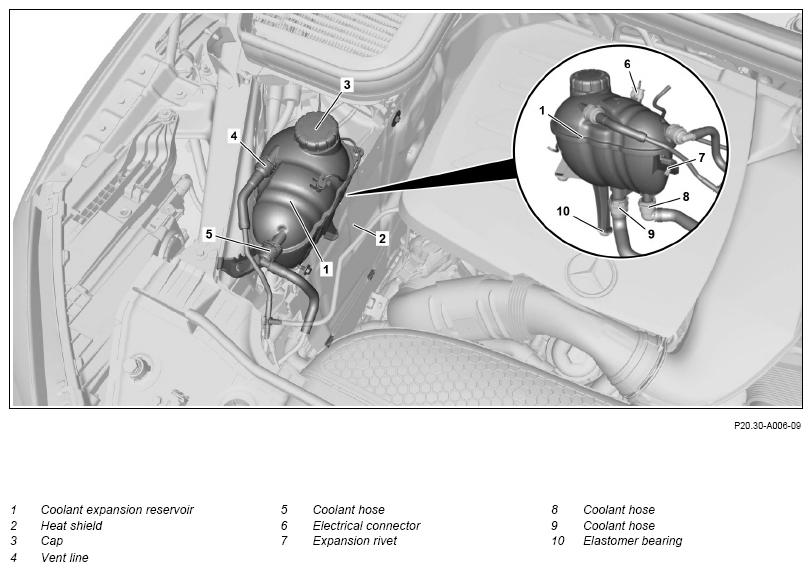

Fig 1: Coolant Expansion Reservoir Components Location - Engine 264 In Model 167

Courtesy of MERCEDES-BENZ USA

Shown With Engine 264

	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove heat shield (2).
3	Slowly open cap (3) of coolant expansion reservoir (1), release overpressure and unscrew.
4	Suction off the coolant from the coolant expansion reservoir (1) and collect it in a suitable container.	Hand pump	Fig 3
5	Remove bleed line (4) and coolant hose (5) from coolant expansion reservoir (1) and seal openings with suitable stop plugs or protective covers.		AR20.20-P-7441-01RQ
		Set of protective covers	Fig 4
		Record plug	Fig 5
6	Release, disconnect electrical connector (6) and unclip electrical wiring harness at coolant expansion reservoir (1).	Do not crush or kink or subject lines to tension This would lead to damage to the lines and can impair their function. Dismantling tool	Fig 2
7	Remove expansion rivet (7) and unclip coolant expansion reservoir (1).	Dismantling tool	Fig 2
8	Remove coolant hoses (8, 9) from coolant expansion reservoir (1) and seal openings with suitable stop plugs or protective covers.	Collect escaping coolant with suitable means.	AR20.20-P-7441-01RQ
		Set of protective covers	Fig 4
		Record plug	Fig 5
9	Remove the coolant expansion reservoir (1).
	Check
10	Check elastomer bearing (10) of the coolant expansion reservoir (1) for wear and damage.	If there are problems: ↓ Replace elastomer bearing (10).
11	Install in the reverse order.
	check
12	Check coolant level and correct.
			AP20.30-P-2050N
13	Check engine cooling system for leak tightness.		AR20.00-P-1011MRK
