Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101NCD

Engine 256 in model 167 Control unit N3/10, connectors 1, 2

Code: Designation: Position:
A0 Use of wiring diagrams 80L
A16/1 Knock sensor 1 5L
A16/2 Knock sensor 2 6L
B11/4 Coolant temperature sensor 30L
B149/1 Engine oil pressure and temperature sensor 8L
B40/6 Engine oil fill level sensor 10L
B6/15 Intake camshaft Hall sensor 27L
B6/16 Exhaust camshaft Hall sensor 29L
F153/2 Engine compartment 48V fuse box 17L
G3/1 Oxygen sensor downstream of catalytic converter 48L
G3/2 Oxygen sensor upstream of catalytic converter 51L
M16/7 Boost pressure control flap actuator 33L
M60/1 Electric additional compressor 13L
M75/11 Electric coolant pump 23L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 52A
N3/10 ME-SFI [ME] control unit 60A
N3/10 ME-SFI [ME] control unit 65A
N3/10 ME-SFI [ME] control unit 71A
R48 Coolant thermostat heating element 35L
W30/11 Underbody tml. 41 ground point 14E
W84/1 Windshield heater ground point 20E
X192/4x1 Coolant pump electrical connector 19H
X30/64 Potential distributor electrical connector 42J
X49 Potential distributor 44L
Y101 Divert air switchover valve 39L
Y49/1 Intake camshaft solenoid 36L
Y49/2 Exhaust camshaft solenoid 38L
Y58/1 Purge control valve 41L
Z105/4z1 Circuit 41 connector sleeve 14G

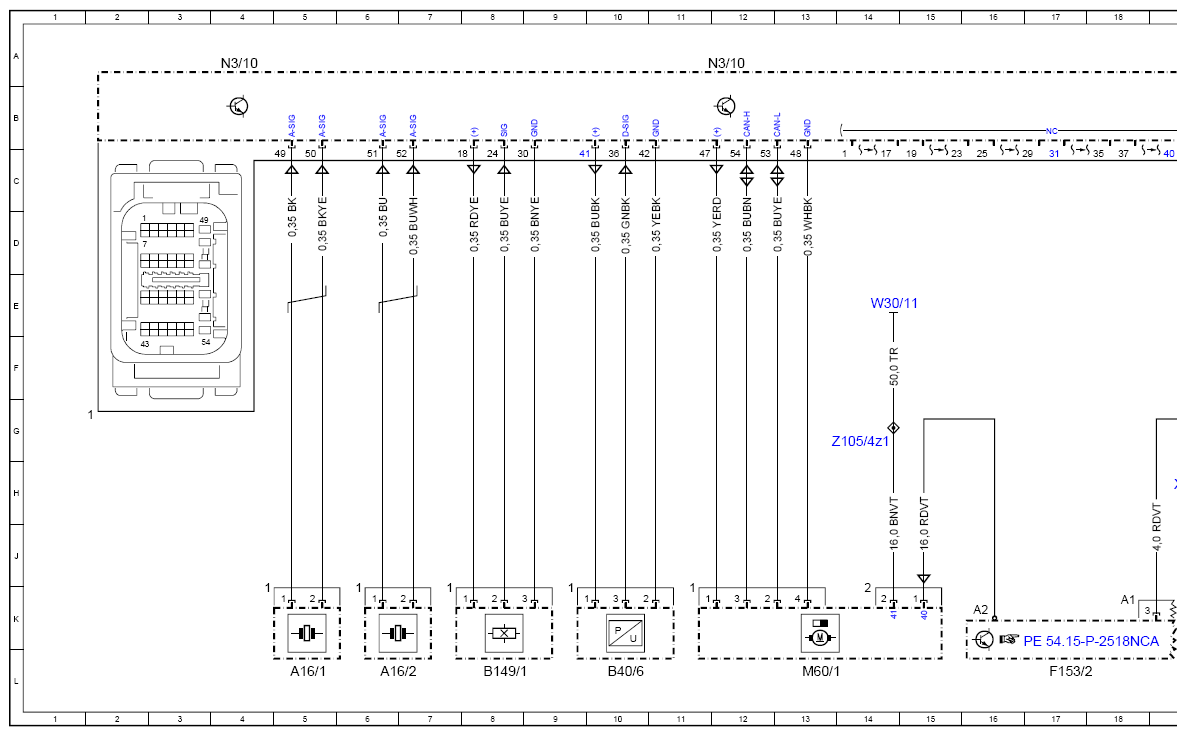

G15046921Courtesy of MERCEDES-BENZ USA

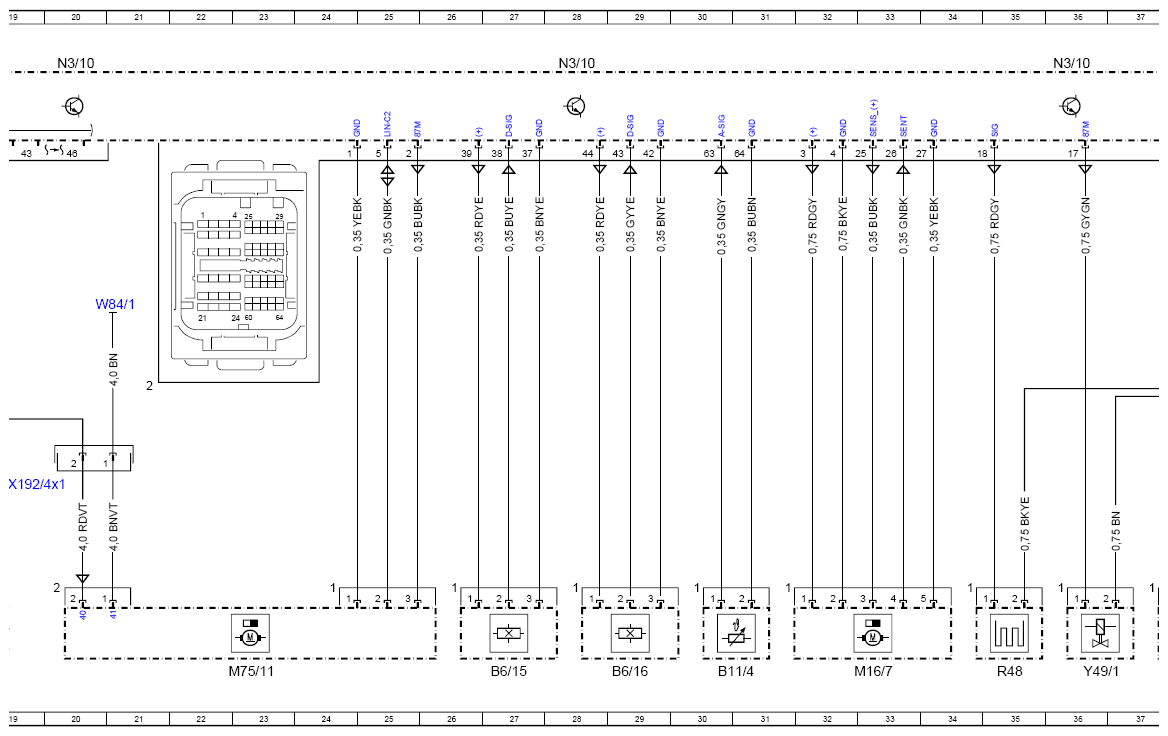

G15046922Courtesy of MERCEDES-BENZ USA

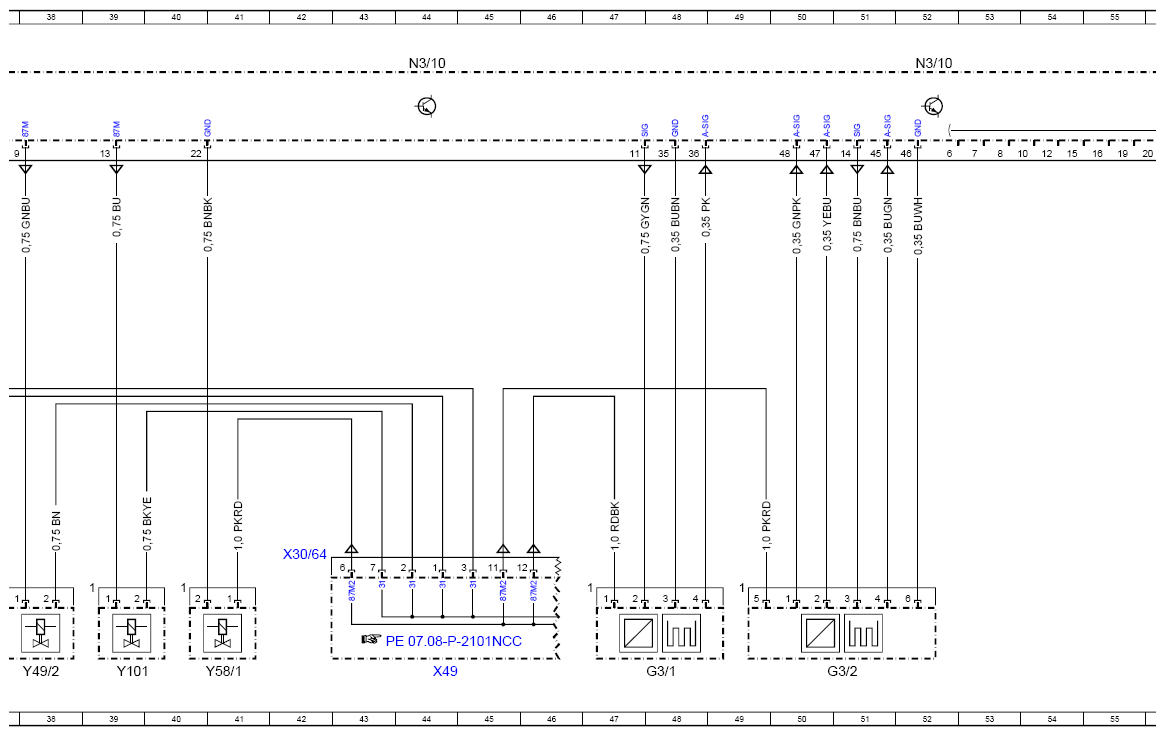

G15046923Courtesy of MERCEDES-BENZ USA

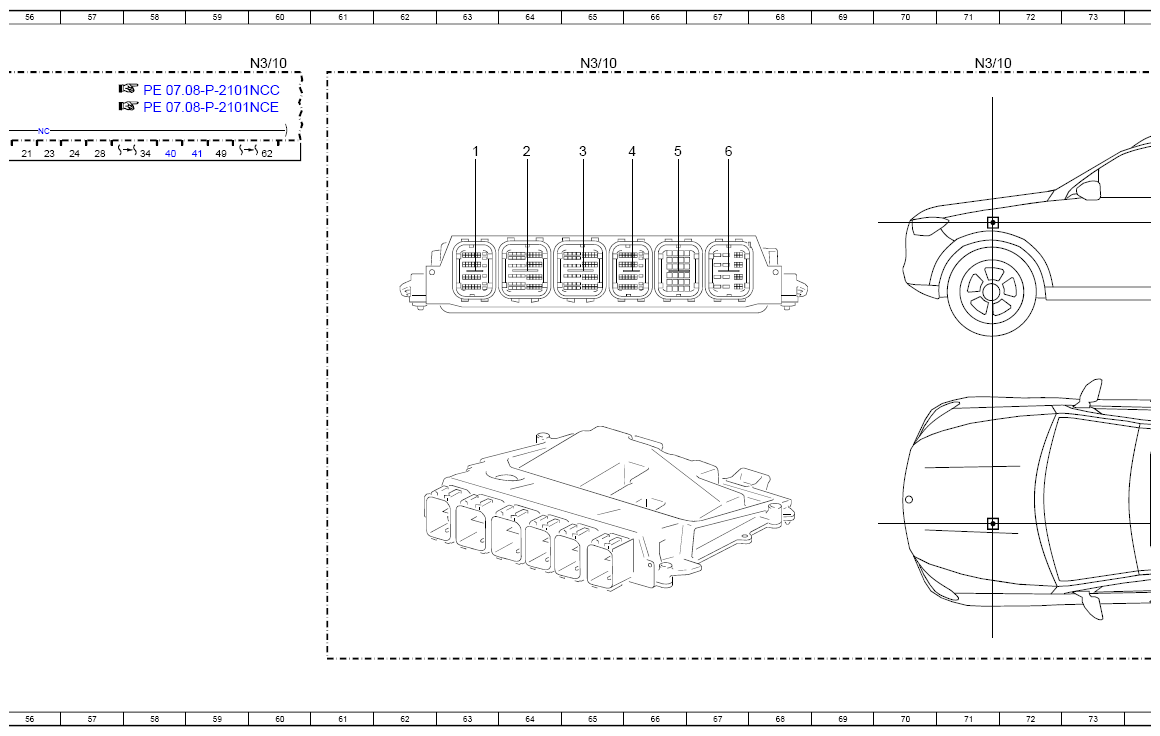

G15046924Courtesy of MERCEDES-BENZ USA

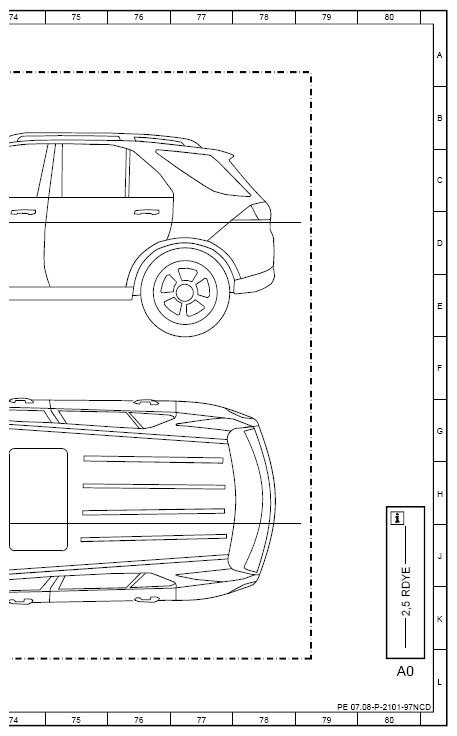

G15046925Courtesy of MERCEDES-BENZ USA


Engine 256 in model 167 Control unit N3/10, connectors 1, 2

  Wiring diagram for gasoline-DI control unit   PE07.08-P-2101-97NCD
  Use of wiring diagrams   OV00.01-P-1901-03NCA
  Abbreviations of signal and circuit designations for wiring diagrams   OV00.01-P-1001-28NCA
  Search aid for all electrical components   OV00.01-P-1909NCA
  Arrangement of electrical connectors   GF00.19-P-1005NCA
  Location of ground points   GF00.19-P-2002NCA
  Location of end sleeves   GF00.19-P-3005NCA
