Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NCB

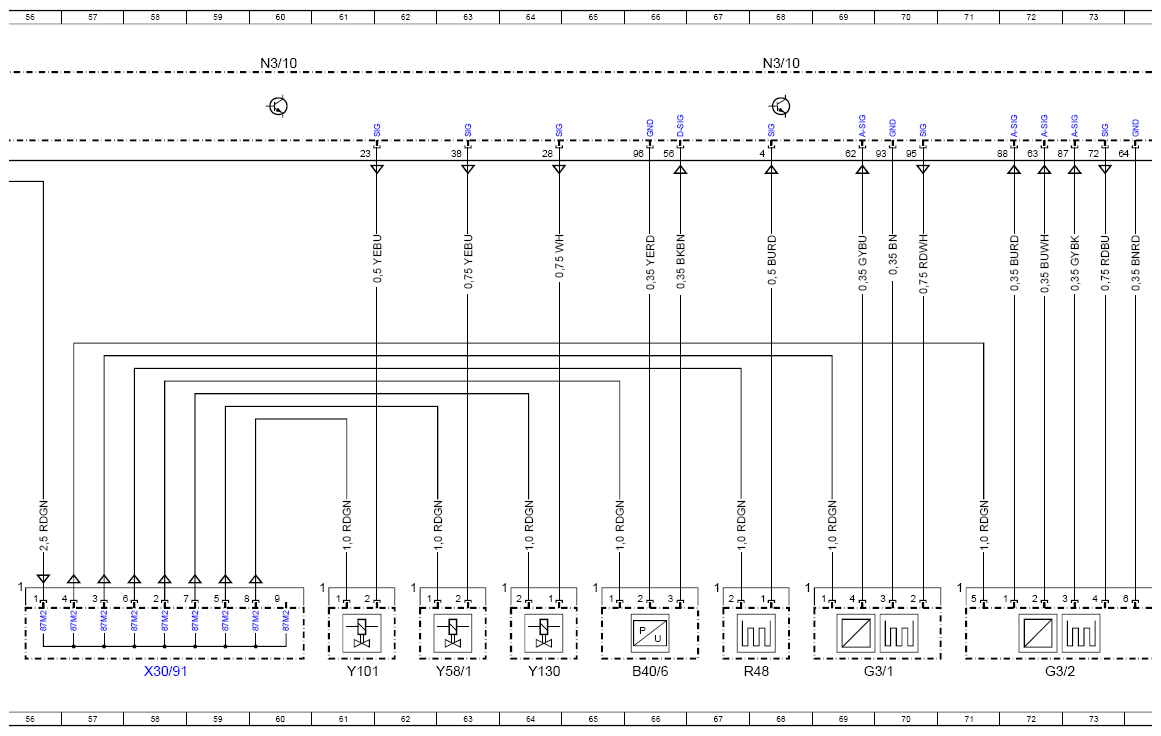

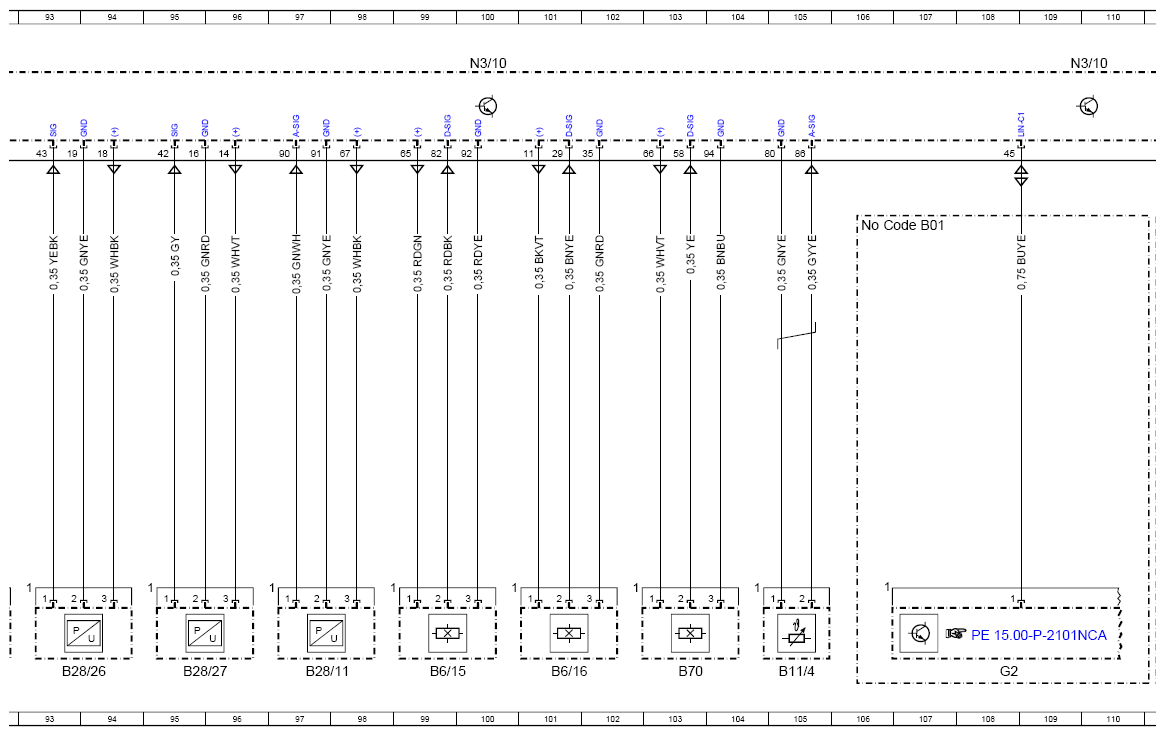

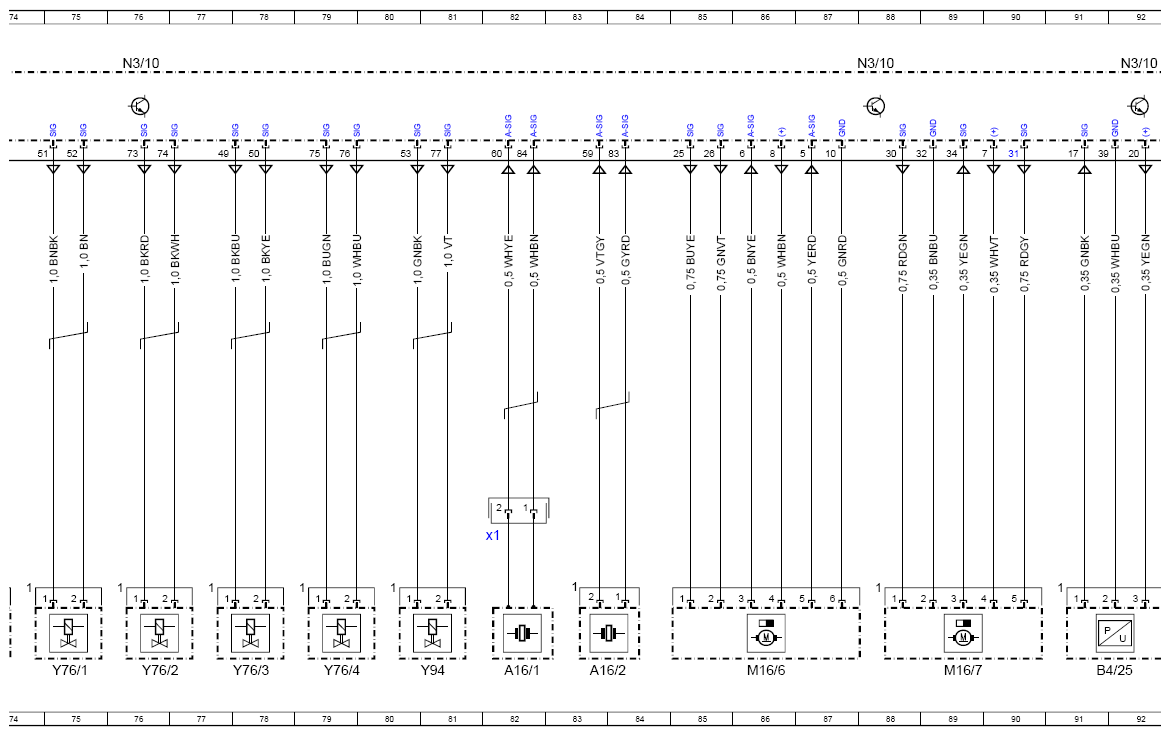

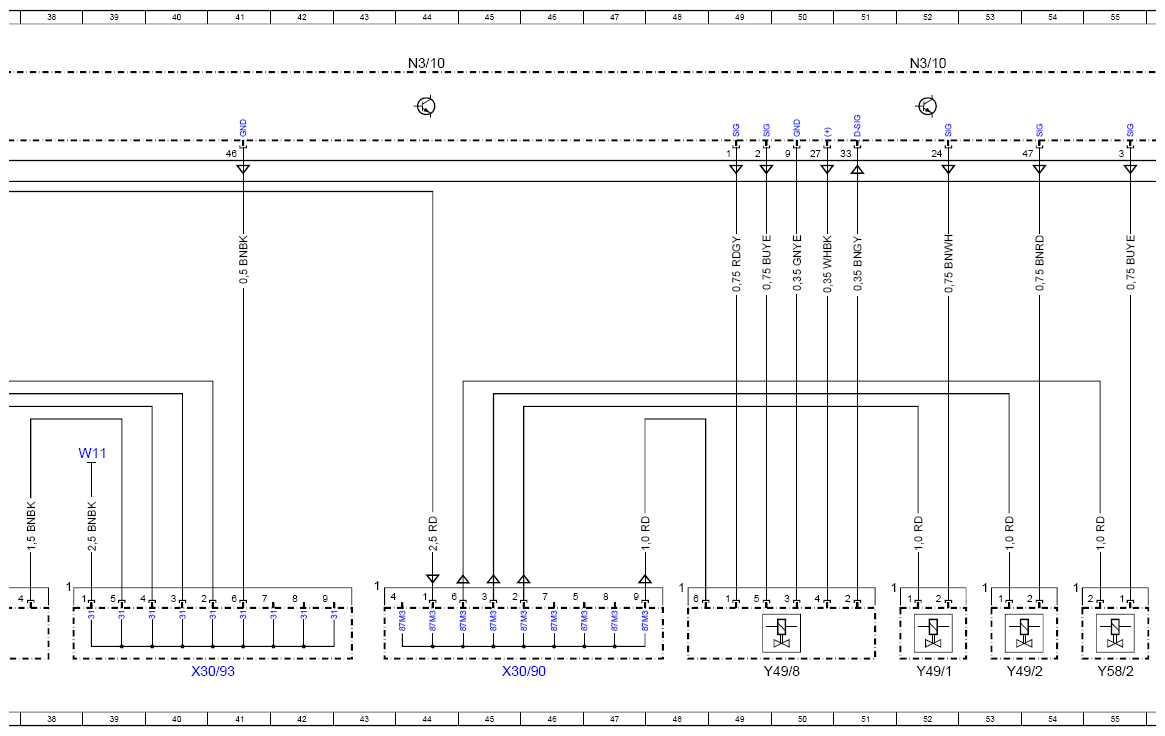

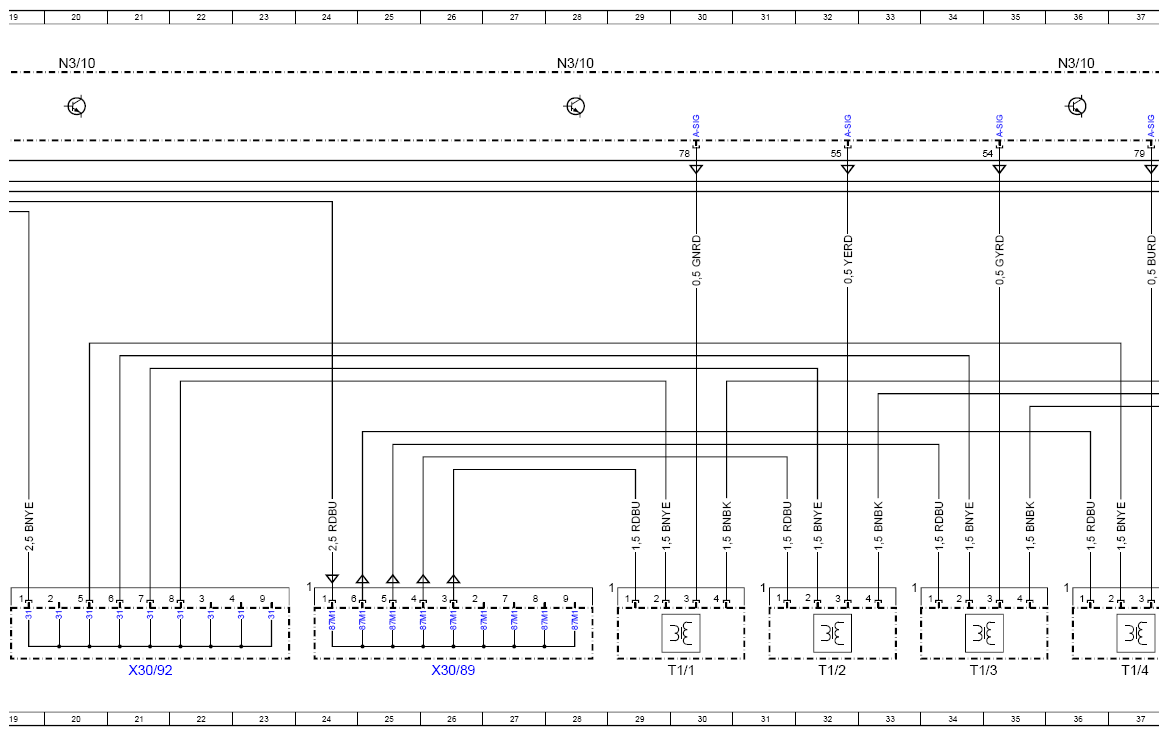

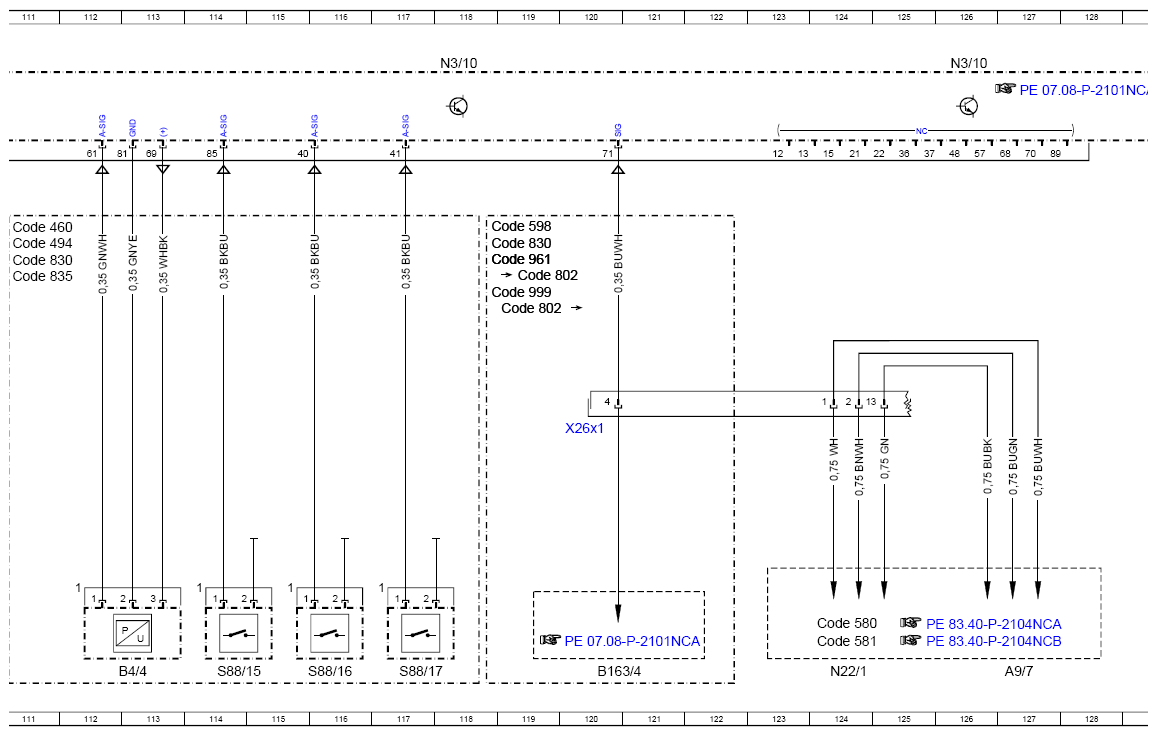

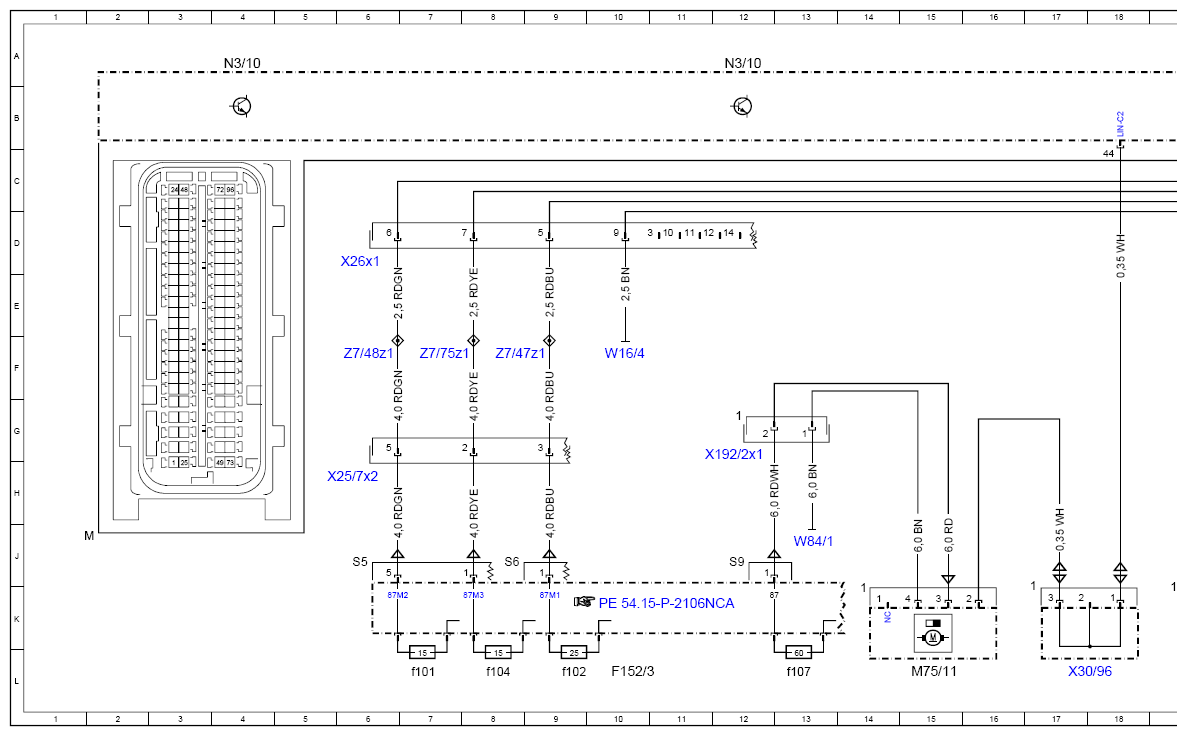

Engine 264 in model 167 Control unit N3/10, engine connector
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| A16/1 | Knock sensor 1 | 82L |
| A16/1x1 | Knock sensor electrical connector 1 | 82J |
| A16/2 | Knock sensor 2 | 83L |
| A9/7 | Refrigerant compressor with magnetic clutch | 127L |
| B11/4 | Coolant temperature sensor | 105L |
| B163/4 | Temperature sensor upstream of gasoline particulate filter | 120L |
| B28/11 | Pressure sensor downstream of air filter | 97L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 93L |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 95L |
| B4/25 | Fuel pressure and temperature sensor | 91L |
| B4/4 | Purging pressure sensor | 113L |
| B40/6 | Engine oil fill level sensor | 66L |
| B6/15 | Intake camshaft Hall sensor | 99L |
| B6/16 | Exhaust camshaft Hall sensor | 101L |
| B70 | Crankshaft Hall sensor | 103L |
| Code 460 | Canada version | 111D |
| Code 494 | USA version | 111D |
| Code 580 | Air conditioning | 124K |
| Code 581 | Automatic air conditioning | 124K |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 118D |
| Code 802 | YoM 21/1 | 119E |
| Code 802 | YoM 21/1 | 119E |
| Code 830 | Additional parts for China vehicles | 111D |
| Code 830 | Additional parts for China vehicles | 118D |
| Code 835 | Additional parts for South Korea vehicles | 111E |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 118D |
| Code 999 | Exhaust system with OPF, Generation 3.0 | 118E |
| Code B01 | 48V technology | 106D |
| F152/3 | Engine compartment fuse and relay module | 10L |
| F152/3f101 | Fuse 101 | 7L |
| F152/3f102 | Fuse 102 | 9L |
| F152/3f104 | Fuse 104 | 8L |
| F152/3f107 | Fuse 107 | 13L |
| G2 | Alternator | 108L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 69L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 72L |
| M16/6 | Throttle valve actuator | 86L |
| M16/7 | Boost pressure control flap actuator | 89L |
| M75/11 | Electric coolant pump | 15L |
| N22/1 | Climate control control unit | 124L |

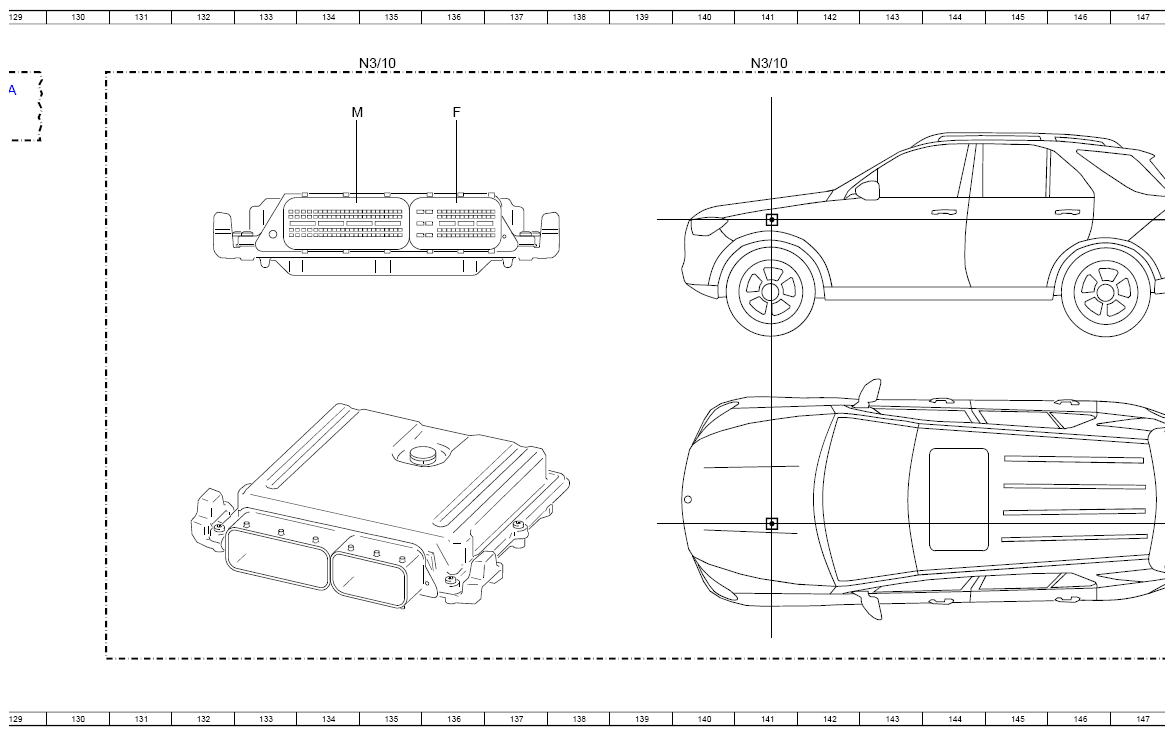

| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 135A |
| N3/10 | ME-SFI [ME] control unit | 141A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 88A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 109A |
| N3/10 | ME-SFI [ME] control unit | 118A |
| N3/10 | ME-SFI [ME] control unit | 126A |
| R48 | Coolant thermostat heating element | 68L |
| S88/15 | Vent line contact switch 1 | 114L |
| S88/16 | Vent line contact switch 2 | 116L |
| S88/17 | Vent line contact switch 3 | 117L |
| T1/1 | Cylinder 1 ignition coil | 30L |
| T1/2 | Cylinder 2 ignition coil | 32L |
| T1/3 | Cylinder 3 ignition coil | 34L |
| T1/4 | Cylinder 4 ignition coil | 37L |
| W11 | Combustion engine ground point | 39G |
| W16/4 | Right major assembly compartment ground point | 10F |
| W84/1 | Windshield heater ground point | 13J |
| X192/2x1 | Electric coolant pump electrical connector | 12G |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 6H |
| X26x1 | Interior and engine wiring harness electrical connector | 6D |
| X26x1 | Interior and engine wiring harness electrical connector | 120G |
| X30/89 | Power supply potential distributor 1 | 26L |
| X30/90 | Power supply potential distributor 2 | 45L |
| X30/91 | Power supply potential distributor 3 | 58L |
| X30/92 | Circuit 31 potential distributor 1 | 21L |
| X30/93 | Circuit 31 potential distributor 2 | 40L |
| X30/96 | Engine LIN (LIN C2) potential distributor | 17L |
| Y101 | Divert air switchover valve | 61L |
| Y130 | Engine oil pump valve | 64L |
| Y49/1 | Intake camshaft solenoid | 52L |
| Y49/2 | Exhaust camshaft solenoid | 53L |
| Y49/8 | Intake camshaft valve lift switching actuator | 50L |
| Y58/1 | Purge control valve | 63L |
| Y58/2 | Partial load operation crankcase ventilation valve | 55L |
| Y76/1 | Cylinder 1 fuel injector | 75L |
| Y76/2 | Cylinder 2 fuel injector | 76L |
| Y76/3 | Cylinder 3 fuel injector | 78L |
| Y76/4 | Cylinder 4 fuel injector | 79L |
| Y94 | Quantity control valve | 81L |
| Z7/47z1 | Circuit 87M1 connector sleeve | 8F |
| Z7/48z1 | Circuit 87M2 connector sleeve | 6F |
| Z7/75z1 | Circuit 87M3 connector sleeve | 7F |
