Remove/Install Low Pressure Fuel Line - AR07.03-P-1120MRK

Engine 264 In Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Relieve fuel pressure using diagnostic system.
			AD00.00-P-2000-06ME

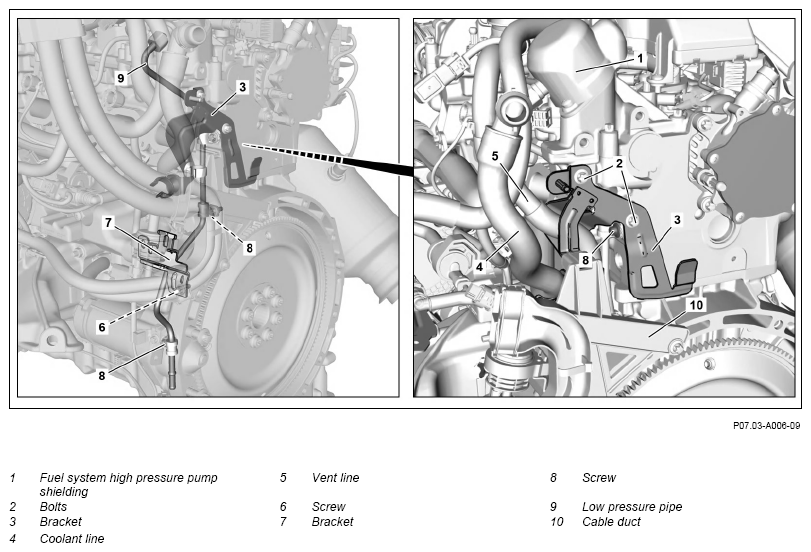

2	Remove the high pressure fuel pump shielding (1).	Do not install the upper engine cover and center as well as rear, lower engine compartment lining until you have successfully completed the leak test.	AR07.02-P-1028MRK
3	Remove charge-air distributor.		AR09.41-P-8683MRK
4	Unclip coolant line (4) from the bracket (3).
5	Unclip bleed line (5) from the bracket (3) and place to one side.
6	Remove screws (2).	Screw, rear engine cover holder to cylinder head	*BA01.10-P-1001-01F
7	Remove cable duct (10).
Topical note	Notes on bolted connections with self tapping screws	Do not crush or kink or subject lines to tension. This would lead to damage to the lines and can impair their function. Ensure that the cable duct (10) and bracket (3) are seated correctly.	AH00.00-P-0007-01SF
		Screw, cable duct to transmission bell housing	*BA27.10-P-1029-04H
8	Remove bracket (3) from the cable duct (10) and remove bracket (3).
9	Remove bottom fuel hose from low-pressure line (9), collect escaping fuel in a suitable container, and seal openings with suitable stop plugs.	Replace fuel hose. Record plug	Fig 2
		Pliers for click clamps	Fig 3
10	Remove screw (6) and fasten bracket (7) to the vehicle so that it is free of tension.	Do not crush or kink or subject lines to tension. This would lead to damage to the lines and can impair their function. Screw, purge valve holder to crankcase	*BA07.03-P-1005-01I
11	Remove screws (8).	Screw, low-pressure line holder to cylinder head/crankcase/holder	*BA07.03-P-1002-01I
12	Remove low-pressure line (9) from the high pressure fuel pump and seal openings with suitable stop plugs.
Topical note	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
		Union nut, fuel line to high-pressure pump/fuel distributor	*BA07.03-P-1001-01I
		Box wrench bit	Fig 1
		Record plug	Fig 2
13	Remove low-pressure line (9).
	Check
14	Check low-pressure line (9).		AR07.03-P-1120-01MNE
		Assembly cleaner If damage is present: ↓ replace the low-pressure line (9).	*BR00.45-Z-1028-04A
15	Install in the reverse order
	Concluding tasks
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Perform engine test run. While doing so, check engine for proper operation and leak tightness.

ENGINE COVER

Number	Designation			Engine 264
BA01.10-P-1001-01F	Screw, rear engine cover holder to cylinder head	M6	Nm	8

INJECTION NOZZLES, INJECTION VALVES, LINES

Number	Designation			Engine 264
BA07.03-P-1001-01I	Union nut, fuel line to high-pressure pump/fuel distributor	Stage 1	Nm	15
		Stage 2	∠°	75
		Stage 3	∠°	25

INJECTION NOZZLES, INJECTION VALVES, LINES

Number	Designation		Engine 264
BA07.03-P-1002-01I	Screw, low-pressure line holder to cylinder head/crankcase/holder	Nm	8

INJECTION NOZZLES, INJECTION VALVES, LINES

Number	Designation		Engine 264
BA07.03-P-1005-01I	Screw, purge valve holder to crankcase	Nm	8

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation		Transmission 725.0
BA27.10-P-1029-04H	Screw, cable duct to transmission bell housing	Nm	12

Fig 1: Identifying Box Wrench Bit (000 589 80 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
