Spare Tire Well Removal (Model 167.9) - Ar64.20-P-1245-01MEX

Model 167.9

The higher-level service document as well as the safety information in the service document must be observed.

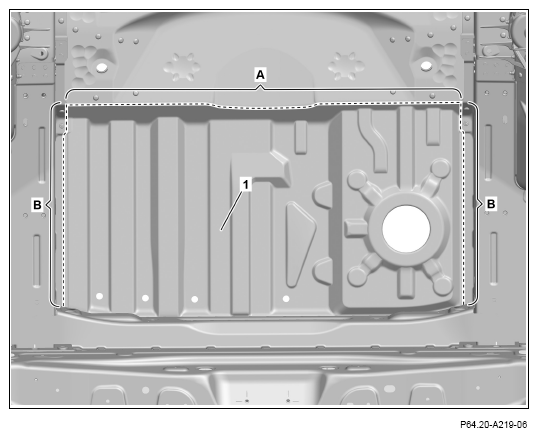

1. Mark separating point at the spare wheel well (1) and cut along the edge (area A).

   Do not cut too deeply. Otherwise the components below can be damaged and weakened.

2. Cut spare wheel well (1) along the flange of the rear longitudinal members (areas B).

   Courtesy of MERCEDES-BENZ USA

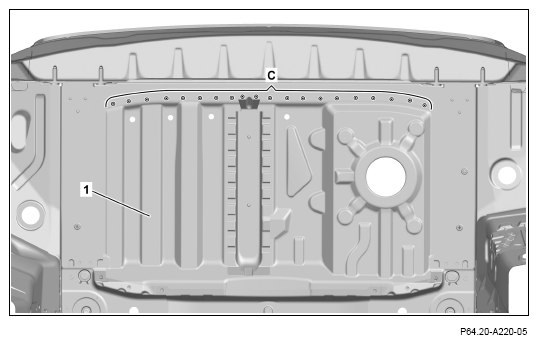

3. Expose spot welds on spare wheel well (1) and cut out (area C).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

4. Remove spare wheel well (1)

   Courtesy of MERCEDES-BENZ USA

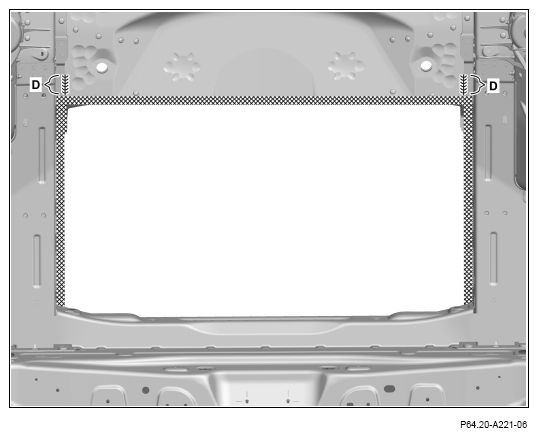

5. Surface grind solder seams up to the cut edge of the replacement part (areas D).

   Transfer dimension from the replacement part.

6. Grind mating surfaces down to bare metal in cross-hatched areas.
7. Remove grinding dust and drill chips.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

8. Grind mating surface down to bare metal in cross-hatched area.
9. Remove grinding dust and drill chips.

   Observe preliminary treatment of bonding surface.

   Courtesy of MERCEDES-BENZ USA
