Rear End Center Assembly Cut Off (Model 167.1) - Ar64.20-P-1000-02ME

Model 167.1

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

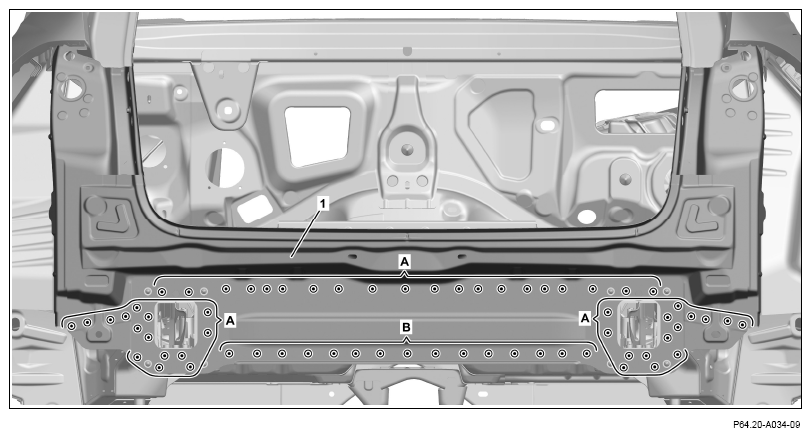

1. Expose spot welds on bottom rear-end center section (1) and cut out (areas A, B).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses (areas A).

   The following operation steps 2, 3, 4 are shown on the left side of the vehicle and must be similarly performed on the right side of the vehicle.

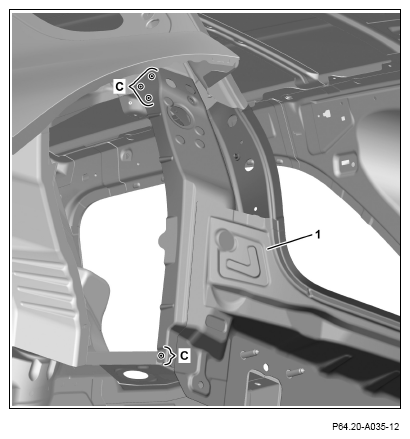

2. Expose spot welds on bottom rear-end center section (1) and cut out (areas C).

   Courtesy of MERCEDES-BENZ USA

3. Expose spot weld on bottom rear-end center section (1) and cut off (area B).

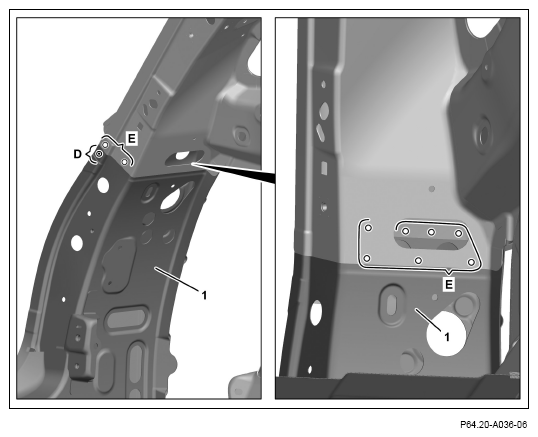

4. Expose spot welds on bottom rear-end center section (1) and drill with a 6.5 mm diameter bit (areas E).
5. Remove bottom rear center section (1).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

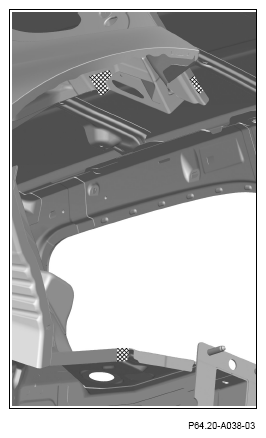

6. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

7. Remove grinding dust and drill chips.
8. Coat insides of spot weld flanges with zinc dust paint.

   The following operation steps 9, 10, 11 are shown on the left side of the vehicle and must be similarly performed on the right side of the vehicle.

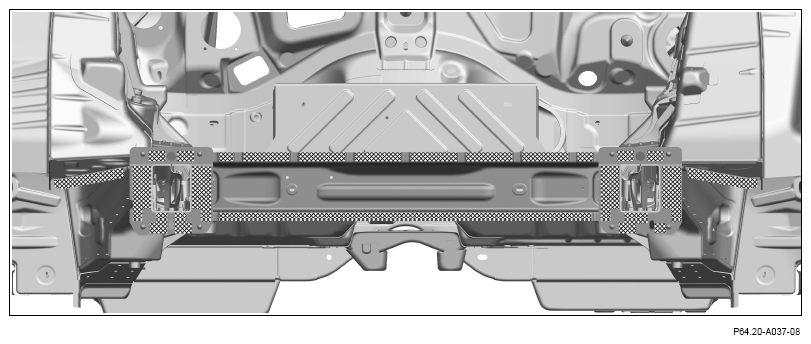

9. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove grinding dust and drill chips.
11. Coat insides of spot weld flanges with zinc dust paint.
