Install Spare Tire Well (Model 167.9) - Ar64.20-P-1245-03MEX

Model 167.9

The higher-level service document as well as the safety information in the service document must be observed.

1. Install spare wheel well (1), fit and fix in place

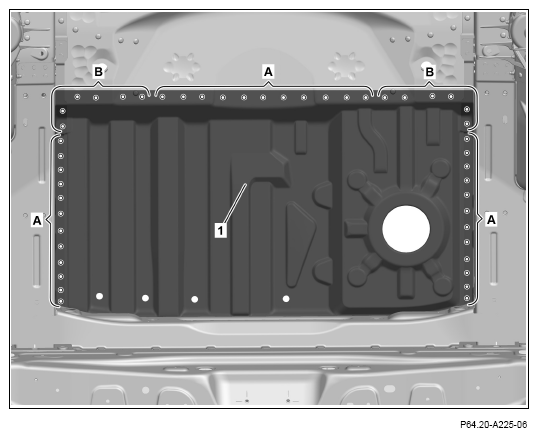

2. Drill rivet holes in spare wheel well (1) with Ø 6.7 mm (areas A, B).

   Drill rivet holes offset to self-pierce rivets in body (area B).

   Courtesy of MERCEDES-BENZ USA

3. Drill rivet holes in spare wheel well (1) with Ø 6.7 mm (area C).

   Courtesy of MERCEDES-BENZ USA

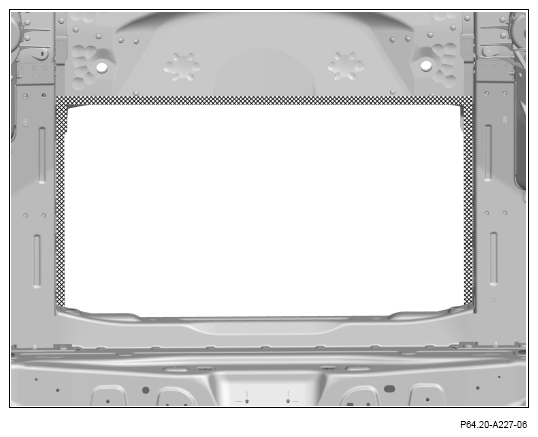

4. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

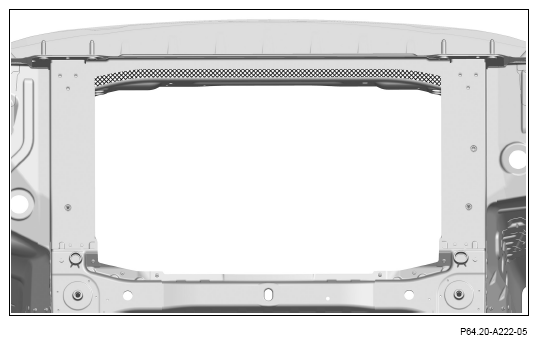

5. Apply 2-component adhesive to body in cross-hatched area.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

6. Install spare wheel well (1) and fix in place.
7. Rivet spare wheel well (1) with rivet Ø 6.5x14.5 (area D).
8. Rivet spare wheel well (1) with rivet Ø 6.5x12.5 (area E).
9. Rivet spare wheel well (1) with rivet Ø 6.4x12 (area G).

   Courtesy of MERCEDES-BENZ USA

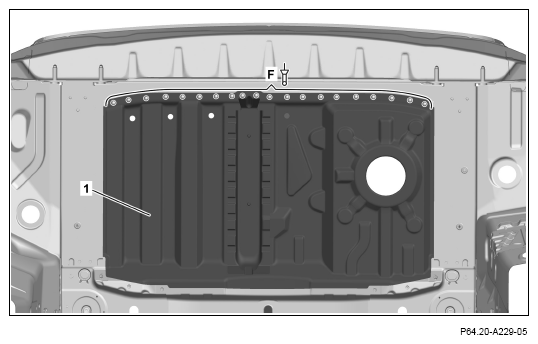

10. Rivet spare wheel well (1) with rivet Ø 6.4x12 (area F).
