Install Spare Tire Well (Model 167.1, 167.3) - Ar64.20-P-1245-03ME

Model 167.1/3

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Install spare wheel well (1), fit and fix in place
2. Drill rivet holes in spare wheel well (1) with Ø 6.7 mm (areas A, B).

   Drill rivet holes offset to self-pierce rivets in body (area B).

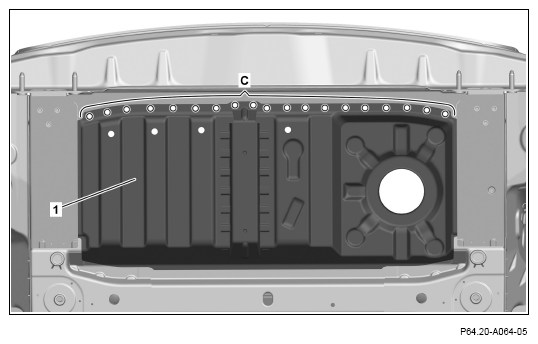

3. Drill rivet holes in spare wheel well (1) with Ø 6.7 mm (area C).

   Courtesy of MERCEDES-BENZ USA

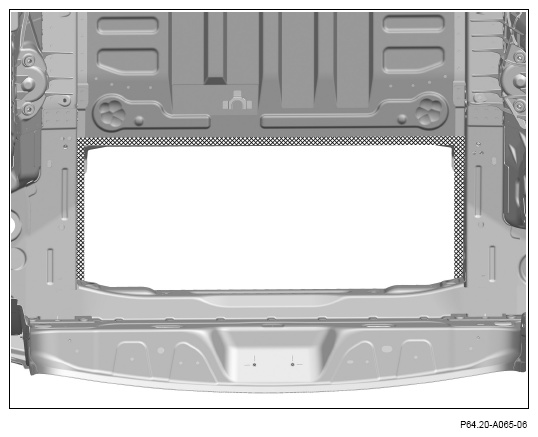

4. Apply 2-component adhesive to body in cross-hatched area.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

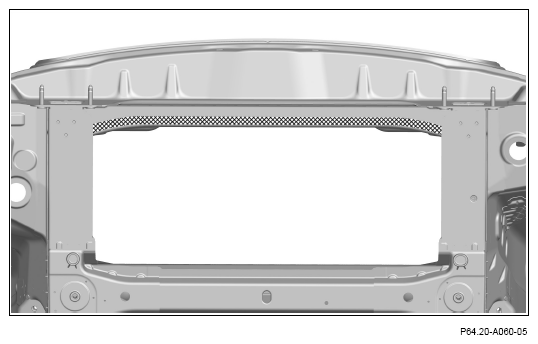

5. Apply 2-component adhesive to body in cross-hatched area.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

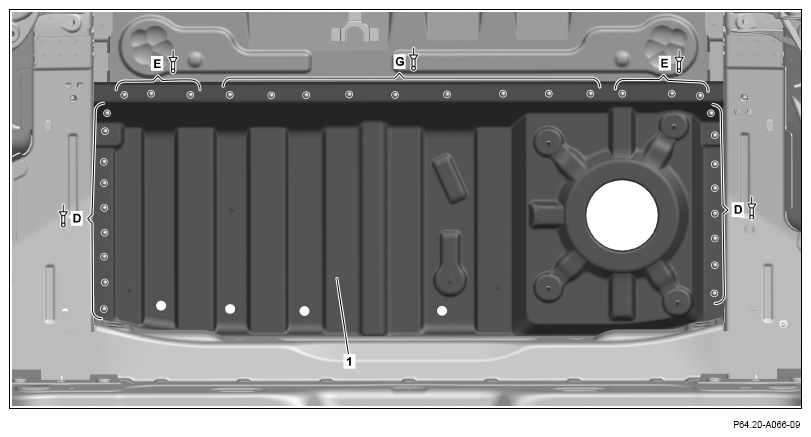

6. Install spare wheel well (1) and fix in place.
7. Rivet spare wheel well (1) with rivet Ø 6.5x14.5 (area D).
8. Rivet spare wheel well (1) with rivet Ø 6.5x12.5 (area E).
9. Rivet spare wheel well (1) with rivet Ø 6.4x12 (area G).
10. Rivet spare wheel well (1) with rivet Ø 6.4x12 (area F).

    Courtesy of MERCEDES-BENZ USA
