Cross Member Installation And Weld In - Ar64.20-P-1060-03ME
Model 167
The higher-level service document as well as the safety information in the service document must be observed.
The following operation steps 2, 4, 6, 7 are shown on the left side of the vehicle and must be similarly performed on the right side of the vehicle.
- Install crossmember (1) and fit.

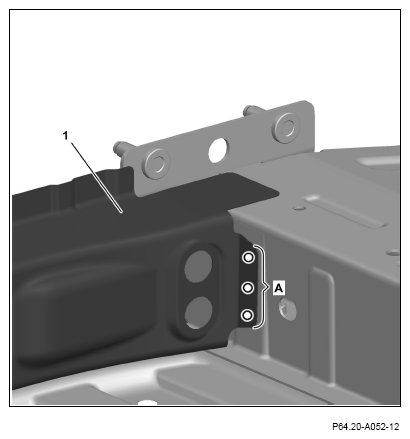

- Mark positions of holes for plug welds on crossmember (1) (area A).
- Remove crossmember (1).
- Punch holes for plug welds on crossmember (1) (area A).
- Install crossmember (1) and fix in place.
- Crossmember (1)

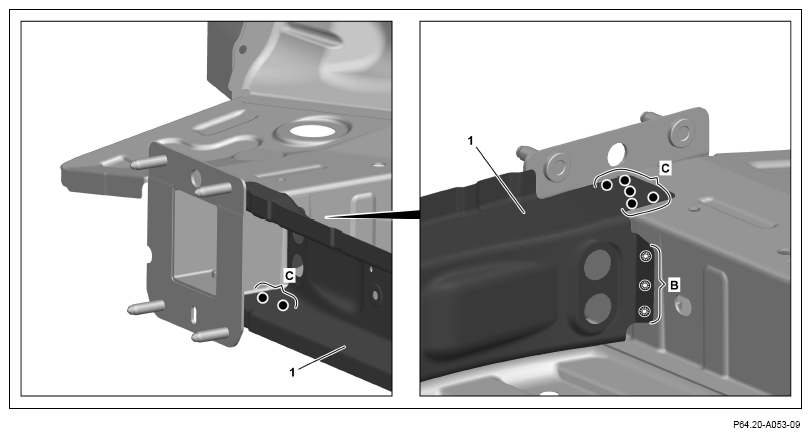

(areas C).
- Crossmember (1)
(area B).

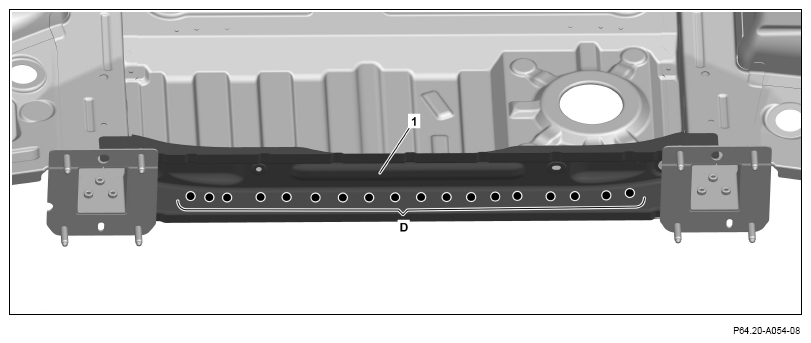

- Crossmember (1)
