Assess Condition Of Brake Linings - AP42.10-P-4252J
Model 167
Shown on model 223.063
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on handling, transport and storage of composite brake discs | AH42.10-P-9406-12LF | |
| Notice | Notes on handling, transport and storage of ceramic brake discs | AH42.10-P-9406-13A | |
| Check | |||

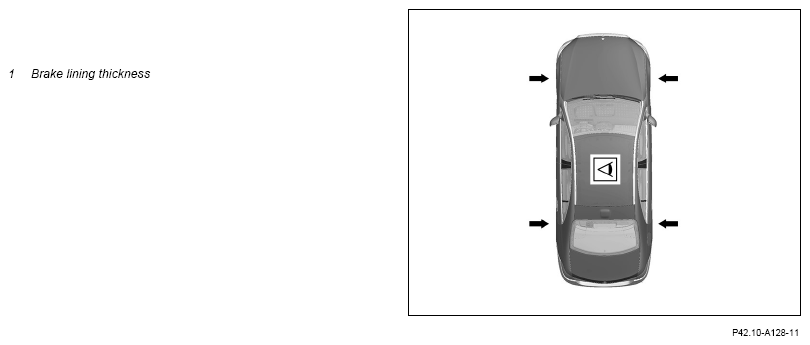

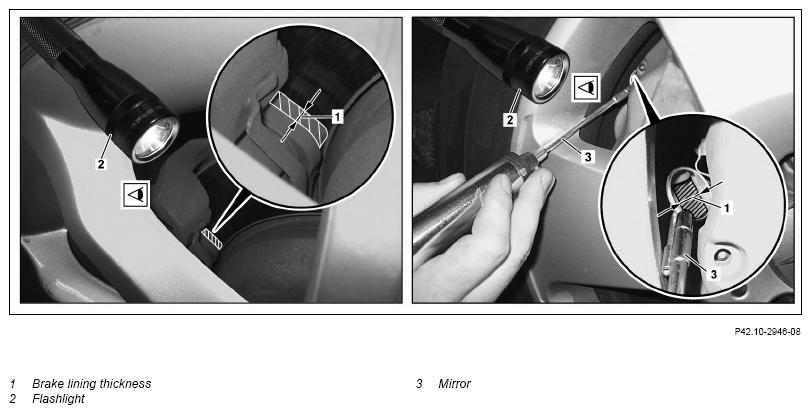

| 1 | Assess brakepad thickness (1) of brakepads on front axle. | Front axle Brake lining If, in exceptional cases, assessment through visual inspection is not possible. ↓ Remove front wheels and assess them. |
*BE42.10-P-1001-06H |
| 2 | Assess brakepad thickness (1) of brakepads on rear axle. | Rear axle Brake lining If, in exceptional cases, assessment through visual inspection is not possible. ↓ Remove rear wheels and assess them. |
*BE42.10-P-1001-18G |
| 3 | Determine expected remaining distance of brakepads. | In order to avoid an unscheduled workshop visit between services, determine the remaining distance of the present brakepads. If the remaining distance determined is less than the next service interval, advise the customer to replaced the brakepads before the due service date. If the wear limit for the brakepads is reached, ↓ replace brake linings. |
AP42.10-P-4253-03EW |
CHECK VALUES FOR FRONT AXLE BRAKE LINING
| Number | Designation | Model 167.109/160/309 except code U28 | Model 167.117/119/121/123/148/149/154/157/159/186/317/321/323/349/354/357/359/921/923/956/957/959/967/986/987 except code U29 model 167.161 except code B06/U29 model 167.361 except code U29/U70 model 167.989 with code 494/P31 model 167.109/160/309 with code U28 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-06H | Brake lining | Brake pad, new | mm | 12 | 11 |
| Pad backing plate | mm | 6 | 6 | ||
| Wear limit | mm | 2 | 2 | ||
| Wear indicator activated (if installed) | mm | 2-3 | 2-3 | ||
CHECK VALUES FOR FRONT AXLE BRAKE LINING
| Number | Designation | Model 167.117/119/121/123/148/149/154/157/159/161/186/317/321/323/349/354/357/359/921/923/956/957/959/967/986/987 with code U29 model 167.161 with code B06 model 167.188/189/388/389 model 167.361 with code U29/U70 model 167.989 except code 494/P31 | ||
|---|---|---|---|---|
| BE42.10-P-1001-06H | Brake lining | Brake pad, new | mm | 10 |
| Pad backing plate | mm | 6 | ||
| Wear limit | mm | 2 | ||
| Wear indicator activated (if installed) | mm | 2-3 | ||
CHECK VALUES FOR REAR AXLE BRAKEPAD
| Number | Designation | Model 167.109/117/119/121/123/148/149/154/157/159/160/186/309/317/321/323/349/354/357/359/921/923/956/957/959/967/986/987 model 167.161 except code B06 model 167.188/189/388/389/989 with code P31/U28/U29 model 167.361 except code U29/U70 | Model 167.161 with code B06 Model 167.188/189/388/389/989 with code B06/U70 Model 167.361 with code U29/U70 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-18G | Brake lining | Brake pad, new | mm | 12 | 11 |
| Pad backing plate | mm | 6 | 6 | ||
| Wear limit | mm | 2 | 2 | ||
| Wear indicator activated (if installed) | mm | 2-3 | 2-3 | ||
CHECK VALUES FOR REAR AXLE BRAKEPAD
| Number | Designation | Model 167.188/189/388/389/989 with code B07 | ||
|---|---|---|---|---|
| BE42.10-P-1001-18G | Brake lining | Brake pad, new | mm | 10 |
| Pad backing plate | mm | 6 | ||
| Wear limit | mm | 2 | ||
| Wear indicator activated (if installed) | mm | 2-3 | ||
