Remove/Install Electric Parking Brake Actuator Motor - AR42.20-P-0600ME
Model 167
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Lift vehicle with vehicle lift. | AR00.60-P-1006A | |
| 2 | Move rear axle brakepads into assembly position. | AR42.10-P-1710-01ME | |
Do not operate the service brake while "Move to assembly position" is shown. Otherwise, the spindle in the brake caliper will be damaged. |
|||

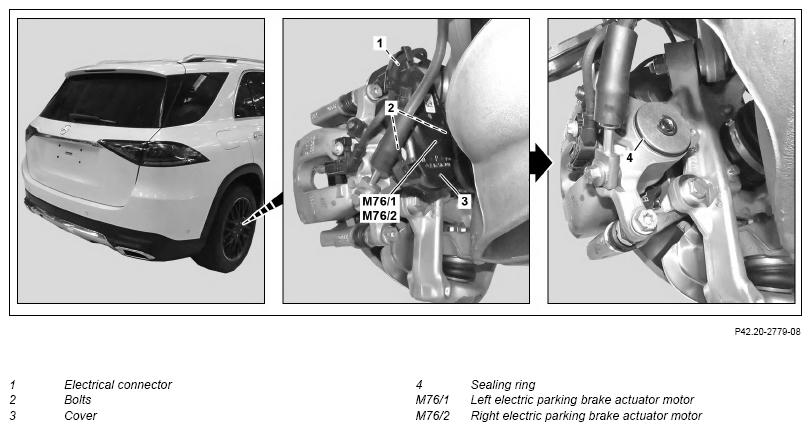

| 3 | Release electrical connector (1), disconnect it then place it to one side. | ||
| 4 | Remove cover (3) from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | ||
| 5 | Remove bolts (2) and remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | ||
| *BA42.10-P-1006-12L | |||
| 6 | Install in the reverse order. | ||
| Concluding tasks | |||
| 7 | Perform brake test on test stand. | ||
| AP42.00-P-4290BA |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA42.10-P-1006-12L | Screw/bolt, actuator motor for parking brake to brake caliper | Nm | 12 |
