Brake System - Inspect Fluid Level - AP42.10-P-4210E

Model 167

Courtesy of MERCEDES-BENZ USA

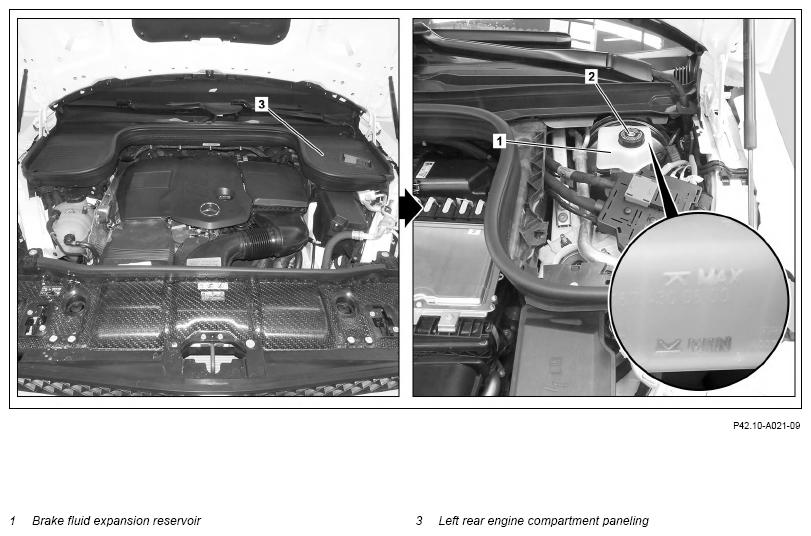

Shown on model 167.119

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Topical note	Notes on repairs to brake system		AH42.00-P-0003-01A
Topical note	Brake fluid notes		AH42.50-P-0001-01A
	Preparatory activity
1	Remove left rear engine compartment trim (3).
	Check
2	Check fluid level in brake fluid expansion reservoir (1).
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)	The fluid level must lie between the "Min." and "Max." marks present on the brake fluid expansion reservoir (1). If the fluid level is too low, ↓ rectify problem. After obtaining special order. If the fluid level is too high, ↓ Suction off brake fluid up to "Max." mark.	BB00.40-P-0331-00A
	Finishing activity
3	Install left rear engine compartment trim (3).
