Outer Part Of Rear Center Section Install And Weld In (Model 167.9) - Ar64.20-P-1000-10MEX

Model 167.9

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

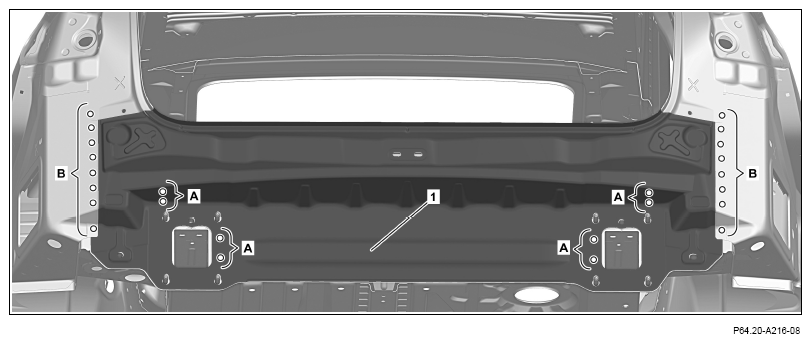

1. Install rear center section outer section (1), fit and fix in place.
2. Drill rivet holes on rear-end center section outer section (1) with a diameter of 6.7 mm (areas A, B).

   Drill rivet holes through present rivet holes in body (areas B).

   To drill the rivet holes (areas B), the flanges of the rear left and right fenders must be bent back.

3. Remove rear outer center section (1).
4. Deburr rivet holes on rear-end center section outer section (1) and on body on both sides.
5. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

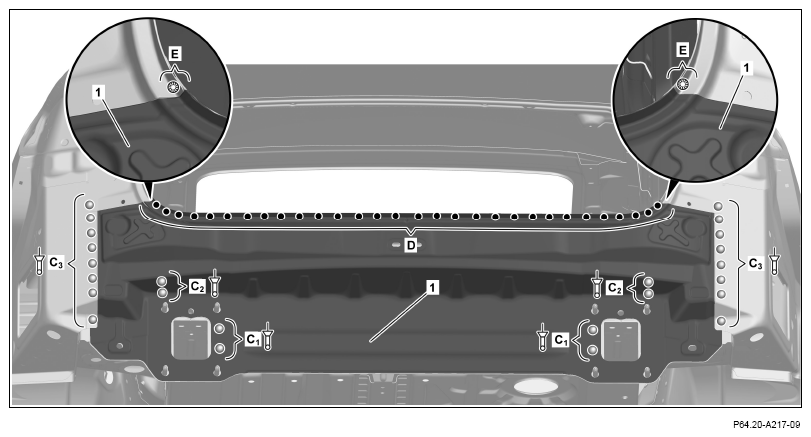

6. Install rear-end center section outer section (1) and fix in place.
7. Bend back the flanges of the rear left and right fenders.
8. Rivet rear-end center section outer section (1) with rivets with a diameter of 6.5 x 14.5 (areas C₁ ).
9. Rivet rear-end center section outer section (1) with rivets with a diameter of 6.4 x 12 (areas C₂ ).
10. Rivet rear-end center section outer section (1) with rivets with a diameter of 6.5 x 12.5 (areas C₈ ).
11. Rear-end center section outer section (1) (area D).
12. Rear-end center section outer section (1) (areas E).

    Courtesy of MERCEDES-BENZ USA

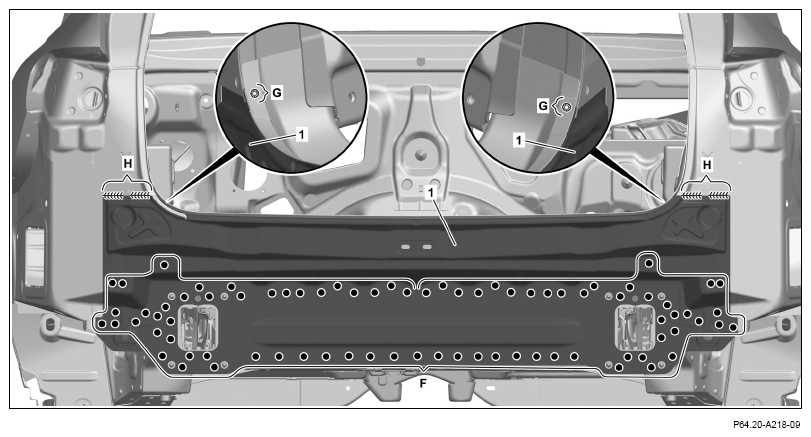

13. Rear-end center section outer section (1) (area F).
14. Rear-end center section outer section (1) (areas G).
15. Rear-end center section outer section (1) (areas H).
