Outer Part Of Rear Center Section Install And Weld In (Model 167.1) - Ar64.20-P-1000-10ME

Model 167.1

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

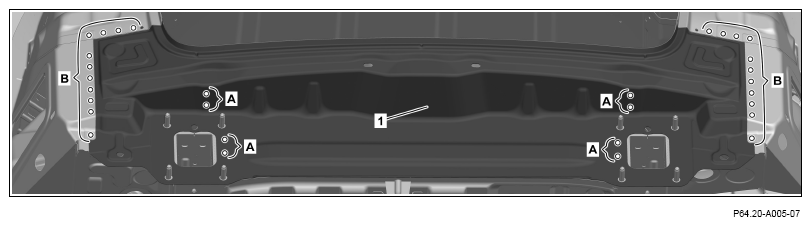

1. Install rear center section outer section (1), fit and fix in place.
2. Drill rivet holes with a diameter of 6.7 mm in rear-end center section outer section (1) (areas A, B).

   Drill rivet holes through present rivet holes in body (areas B).

3. Remove rear outer center section (1).
4. Deburr rivet holes on rear-end center section outer section (1) and on body on both sides.
5. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

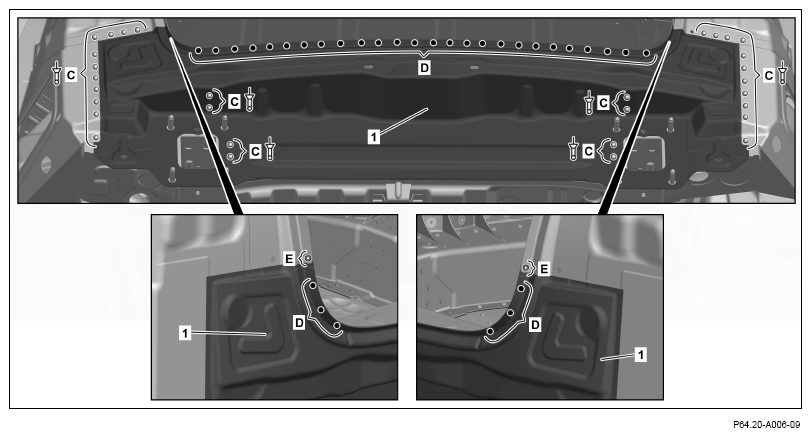

6. Install rear-end center section outer section (1) and fix in place.
7. Rivet rear-end center section outer section (1) with 6.5x12.5 diameter rivets (areas C).
8. Rear-end center section outer section (1) (areas D).
9. Rear-end center section outer section (1) (areas E).

   Courtesy of MERCEDES-BENZ USA

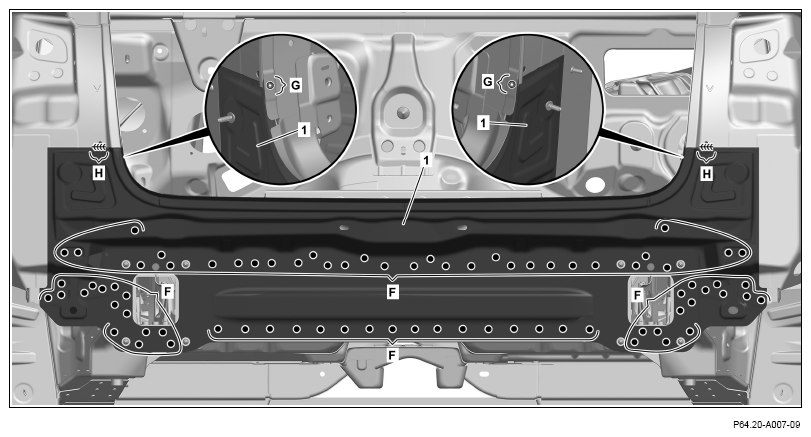

10. Rear-end center section outer section (1) (areas F).
11. Rear-end center section outer section (1) (areas G).
12. Rear-end center section outer section (1) (areas H).
