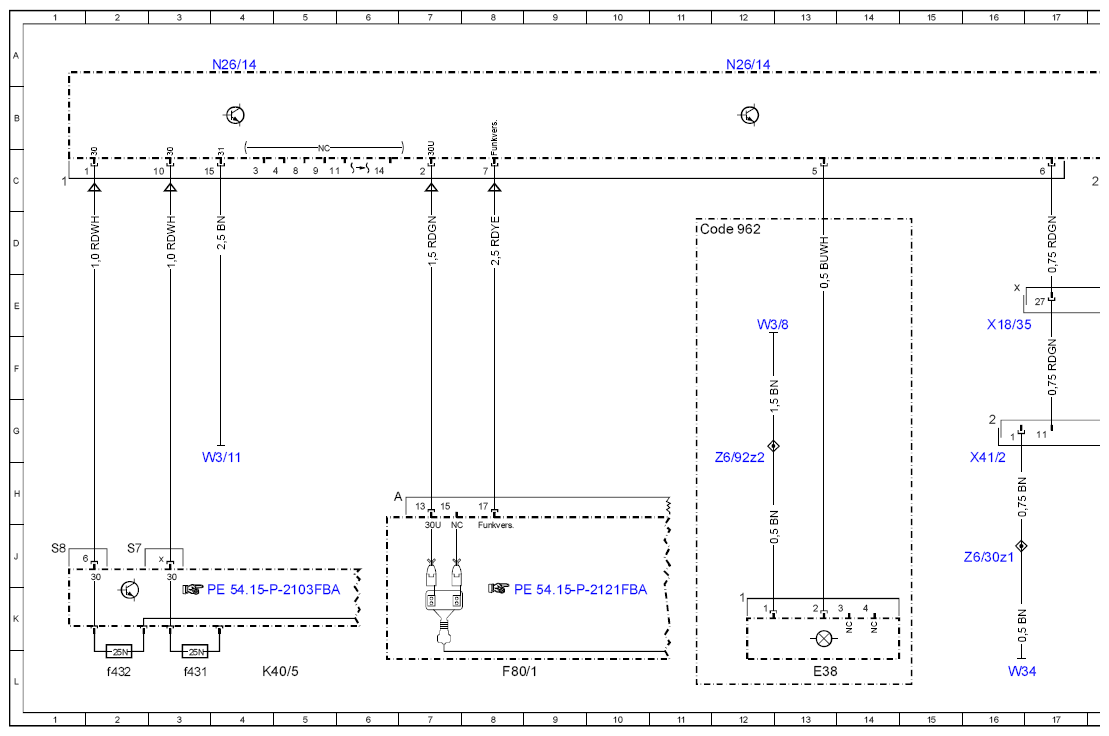

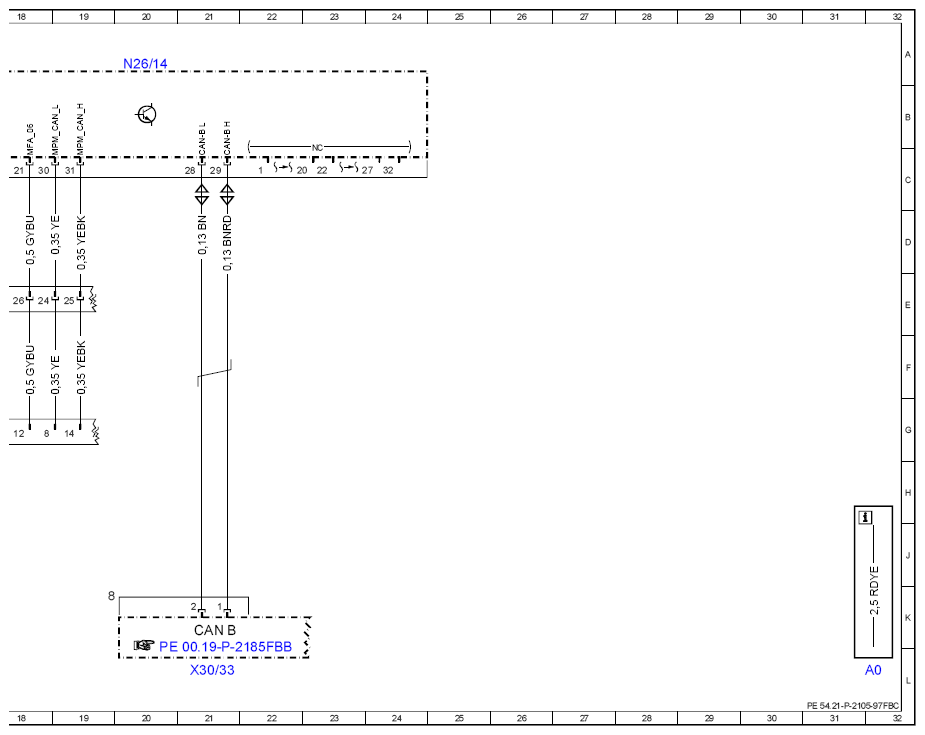

Wiring Diagram, Special Vehicle Multifunction Control Unit (SVMCU (MSS)) - PE54.21-P-2105-97FBC
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 CU N26/14
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| CAN B | Interior CAN | 21K |
| Code 962 | Hella roof attachment | 11D |
| E38 | Trunk lid/rear-end door flashing light | 13L |
| F80/1 | Special-purpose vehicle fuse block 1 | 8L |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f431 | Fuse 431 | 3L |
| K40/5f432 | Fuse 432 | 2L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 4A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 12A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 20A |
| W3/11 | Left rear wheel well ground point | 4G |
| W3/8 | Right rear wheel well ground point | 12E |
| W34 | Left footwell ground point | 16L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 16E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 21L |
| X41/2 | Roof light bar separation point | 16G |
| Z6/30z1 | Circuit 31 connector sleeve | 16J |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 12G |
