General Notes About Painting The Body Flange In The Glazing Area - Ah98.00-P-9408-06A
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes about preparation of new parts such as the A-pillar, roof or side walls.
Model all (4xWD, CAR, Light transporter, smart)
The following must be noted for new parts such as the A-pillar, the roof or the side walls:
- Apply repair priming in accordance with the manufacturer's instructions.
- Flange masking with adhesive tape (hand roll, 12 mm wide).
- Top coating of the flange to be repaired.

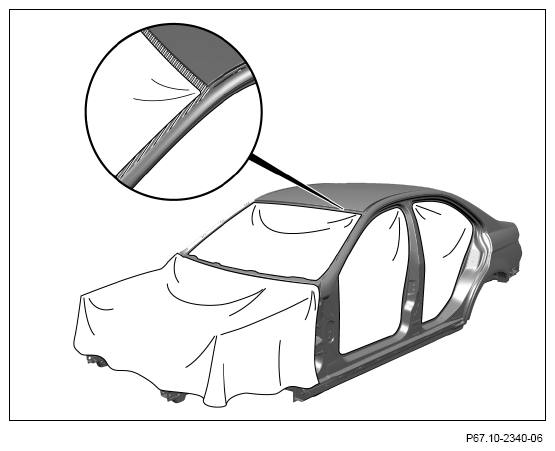

Shown with model 204.0
- Remove masking from flange to prepare for window glazing.
- Application of primer (flash-off time at least 10 min., maximum break time 24 h).
- Apply bonding to component as per the repair instructions, on the de-masked and primed bonding flange (as much coverage as possible).
