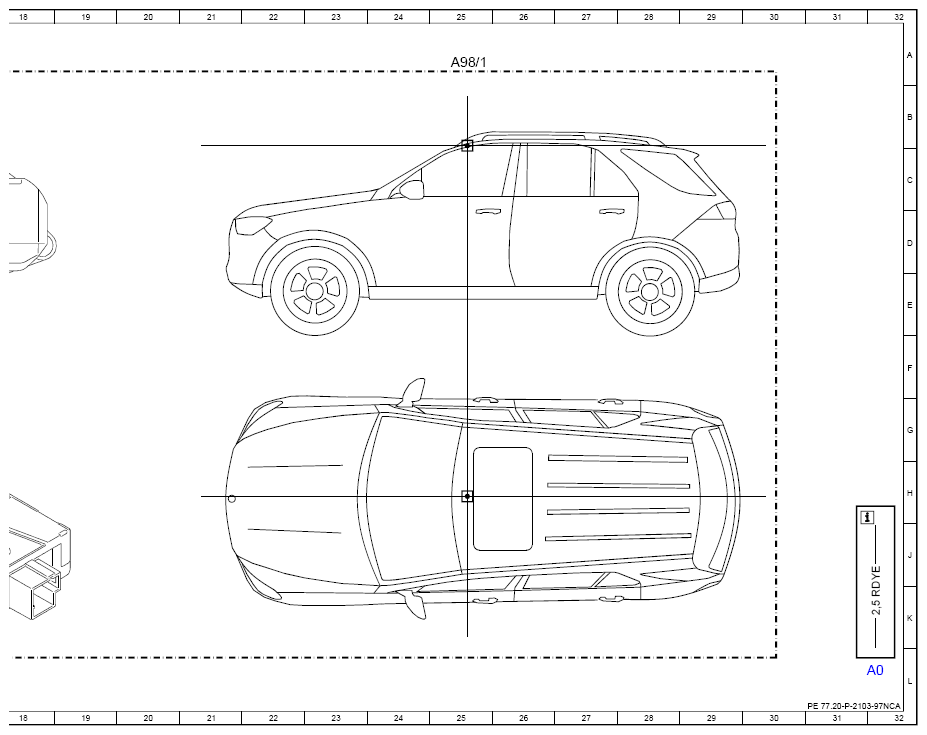

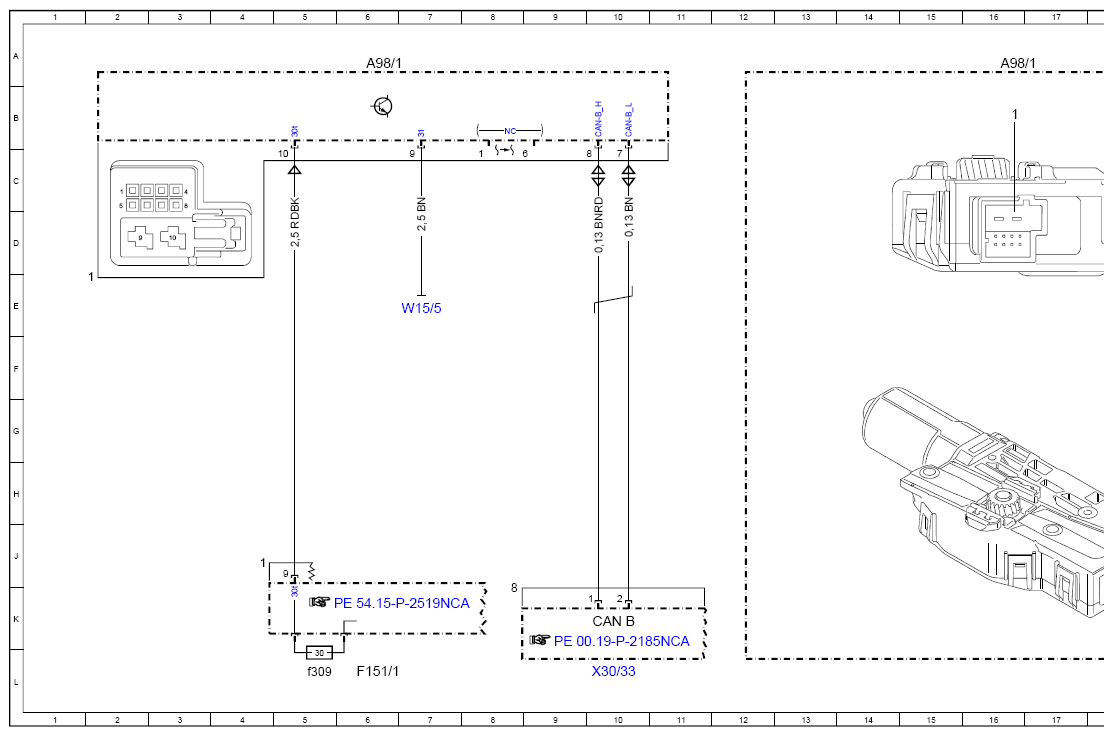

Wiring Diagram For Sliding Roof Control Module - PE77.20-P-2103-97NCA
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2025 Mercedes-Benz Maybach GLS600, 2025 Mercedes-Benz GLS63 AMG, 2024 Mercedes-Benz Maybach GLS600, 2024 Mercedes-Benz GLS63 AMG, and 2023 Mercedes-Benz Maybach GLS600. However, it is still accessible from the selected car via links, so may be relevant.
Model 167
With Code 414 (Sliding sunroof)
Control module A98/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A98/1 | Sliding roof control module | 6A |
| A98/1 | Sliding roof control module | 16A |
| A98/1 | Sliding roof control module | 25A |
| CAN B | Interior CAN | 10K |
| F151/1 | - | 6L |
| F151/1f309 | Fuse 309 | 5L |
| W15/5 | Left front footwell ground point | 7E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 10L |
