Prepare Panoramic Sliding Roof Frame For Installation - AR77.21-P-0801-02ME
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2025 Mercedes-Benz Maybach GLS600, 2025 Mercedes-Benz GLS63 AMG, 2024 Mercedes-Benz Maybach GLS600, 2024 Mercedes-Benz GLS63 AMG, and 2023 Mercedes-Benz Maybach GLS600. However, it is still accessible from the selected car via links, so may be relevant.
Model 167.1/9
With Code 413 (Panoramic sliding sunroof/glass roof)
| Notice |
Notes on removal/installation of bonded elements of panoramic roof |
|
AH77.21-P-0001-01A |
WINDSHIELD
| Number |
Designation |
Model 167 (except 167.3) |
| BE67.10-P-1001-02KOA |
Distance between top edge of window and front edge of roof |
Dimension "A" |
mm |
2, 5 (±1, 0) |
Courtesy of MERCEDES-BENZ USA REPAIR MATERIALS
| Number |
Designation |
Order number |
| BR00.45-Z-1062-02A |
Adhesive fabric tape |
A 007 989 28 85 |
 Courtesy of MERCEDES-BENZ USA
|
- Place panoramic sliding sunroof frame (1) onto suitable base with inside pointing upward.
Four helpers required.
- Clean bonding surfaces (2) on panoramic sliding roof frame (1).
The cleaner is included in the repair kit.
Apply cleaner only to the bonding surfaces (2) and allow to dry completely.
It is not necessary to prime the bonding surfaces (2).
- Check position and condition of the spacers (3).
Do not remove protective foil from the bonding surface.
If the spacers (3) are damaged,
↓
replace spacers (3).

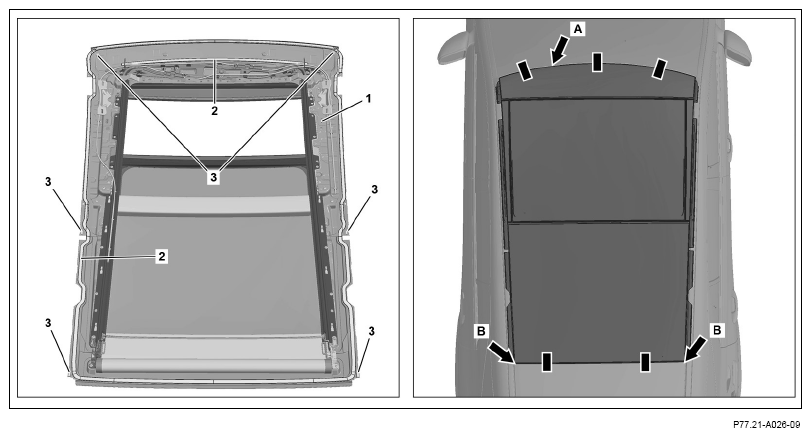

- Place panoramic sliding sunroof frame (1) on the body and use the
feeler gauge to align the distance (arrow A) between the top edge of the window and roof front edge/sliding roof frame.
Four helpers required.
Center panoramic sliding sunroof frame (1) between side roof panelings and windshield.
The panoramic sliding sunroof frame (1) and the edges of the rear roof paneling must be flush (arrows B).
- The Glue on adhesive strips as shown and cut through on the outside edges of the panoramic sliding sunroof frame (1).
Ensure that the seals on the panoramic sliding sunroof frame (1) are not damaged.
In the event of damage, the seals must be replaced.
- Place panoramic sliding sunroof frame (1) onto suitable base with inside pointing upward.
Four helpers required.
- Apply activator to the bonding surfaces (2) on the panoramic sliding sunroof frame (1).
The activator is included in the repair kit.
