Roof System, Basic Function - GF77.20-P-9900A

Model All (CAR)

Courtesy of MERCEDES-BENZ USA

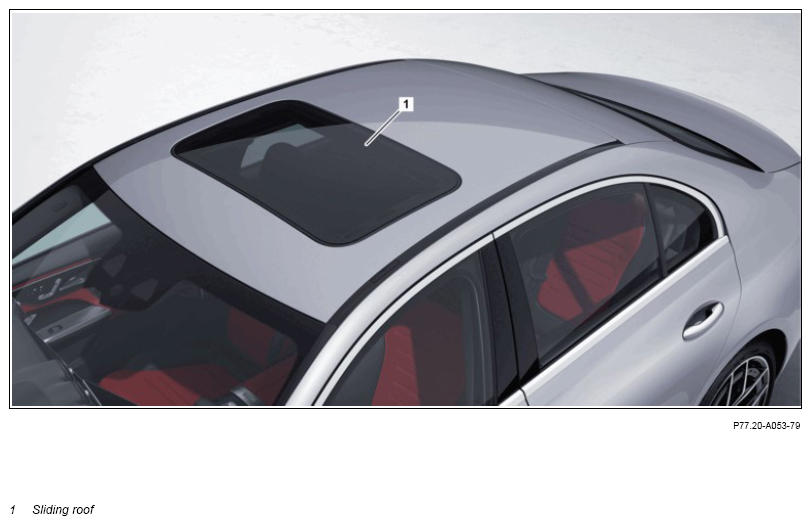

Sample illustration of sliding sunroof

Courtesy of MERCEDES-BENZ USA

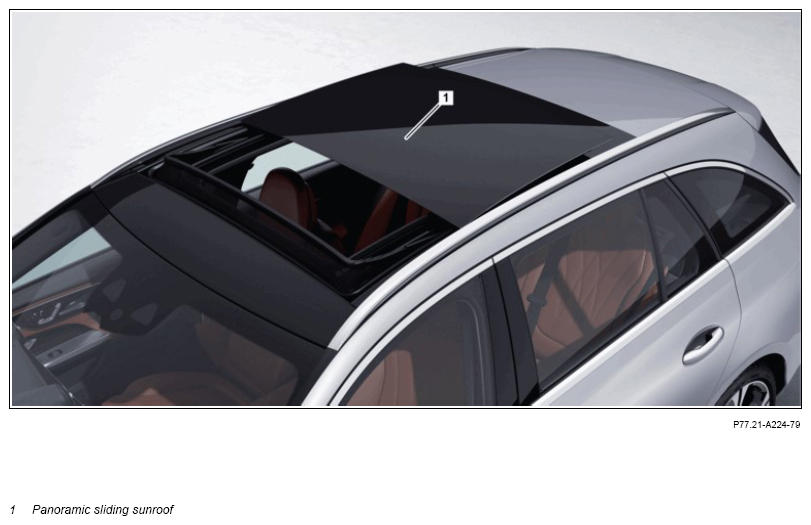

Sample illustration of panoramic sliding sunroof

Courtesy of MERCEDES-BENZ USA

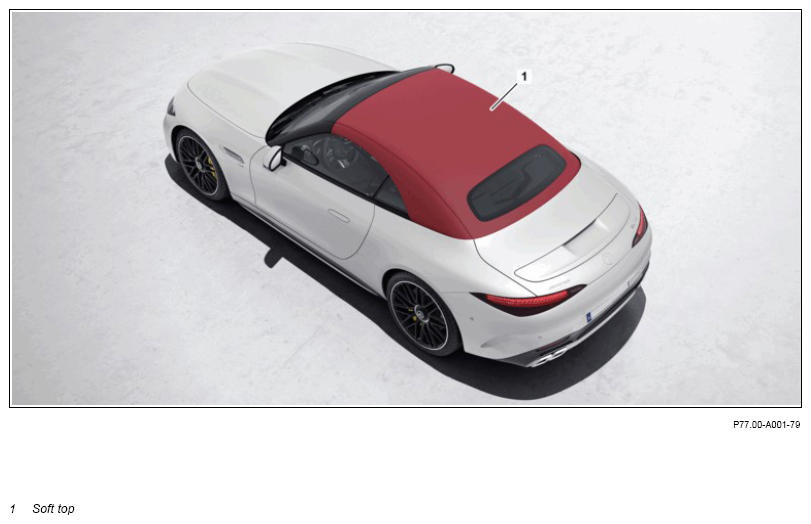

Sample illustration of soft top

Overview

This document contains information on:

• General
• Function

General

Different roof systems are installed depending on the body form and equipment:

• Sliding roof
• Panoramic sliding sunroof
• Soft top

They allow the vehicle to be flooded with daylight and provide a convenient possibility for ventilation.

Function

Due to different actuation options and depending on the equipment installed, the sliding sunroof, panoramic roof or soft top opens or closes.

Sliding roof

A roof system in which the movable part is made from heat-insulating safety glass. This is moved under the roof panel when the sliding sunroof is opened.

Panoramic sliding sunroof

A roof system that consists of several glass panels and a sliding sunroof panel and through which light and/or air can enter into the vehicle interior. Depending on the vehicle, the sliding sunroof panel can be installed at the front in the panoramic sliding sunroof and a fixed integrated glass panel at the rear. The sliding sunroof panel can also be installed in the panoramic sliding sunroof between two fixed integrated glass panels.

Soft top

Movable part of roof system of a convertible or roadster consisting of the soft top canvas, soft top frame, soft top interior trim and where applicable rear window. The soft top can be opened and closed.
