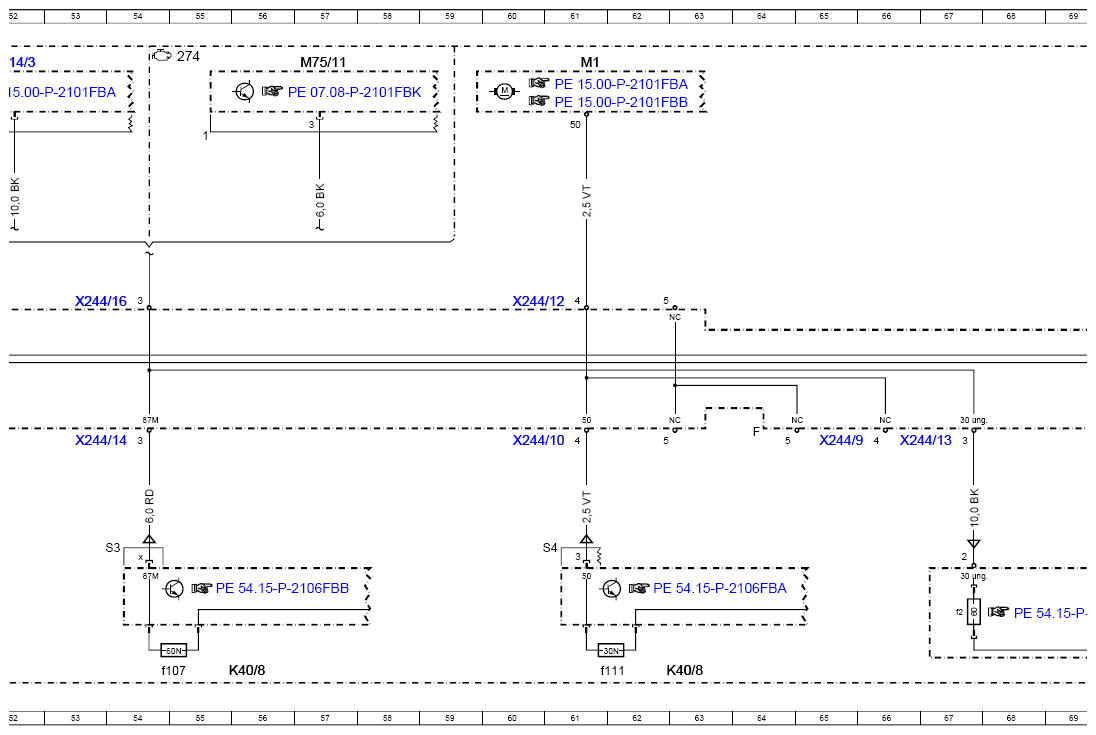

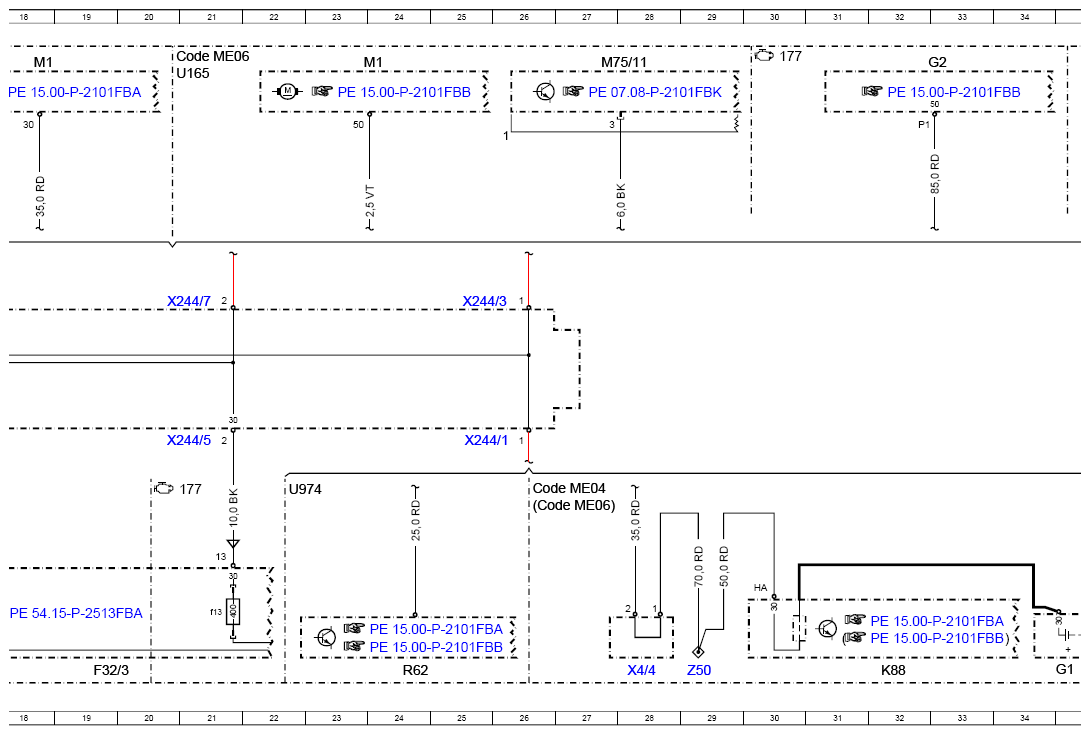

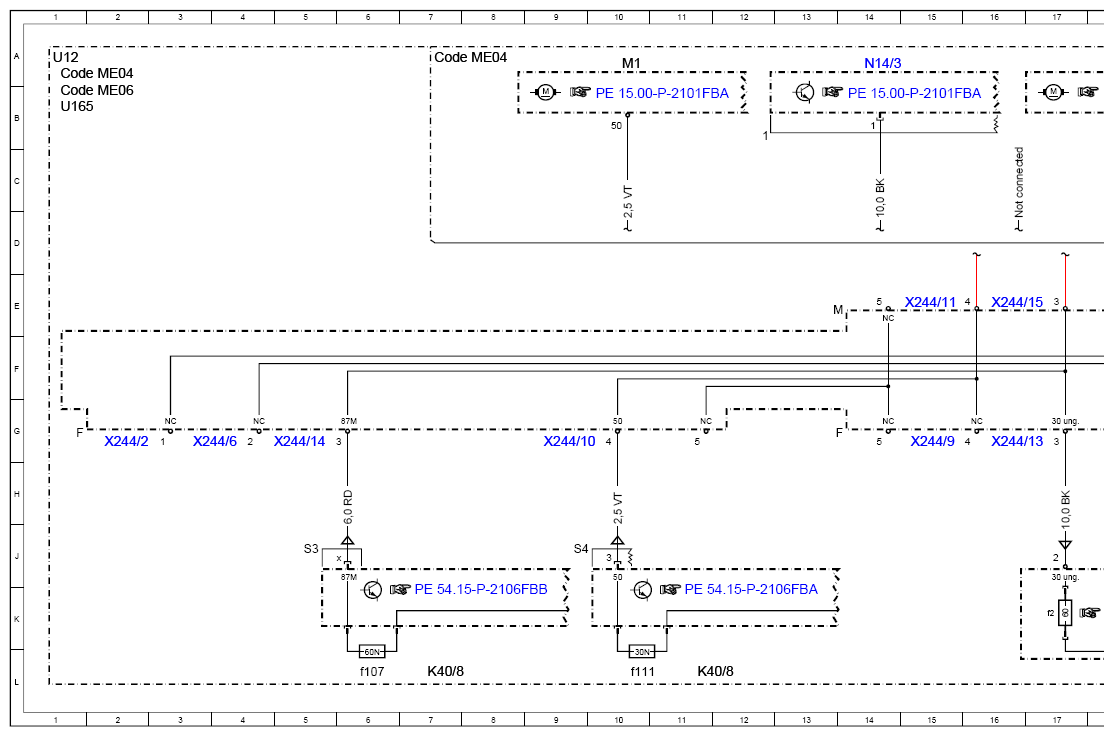

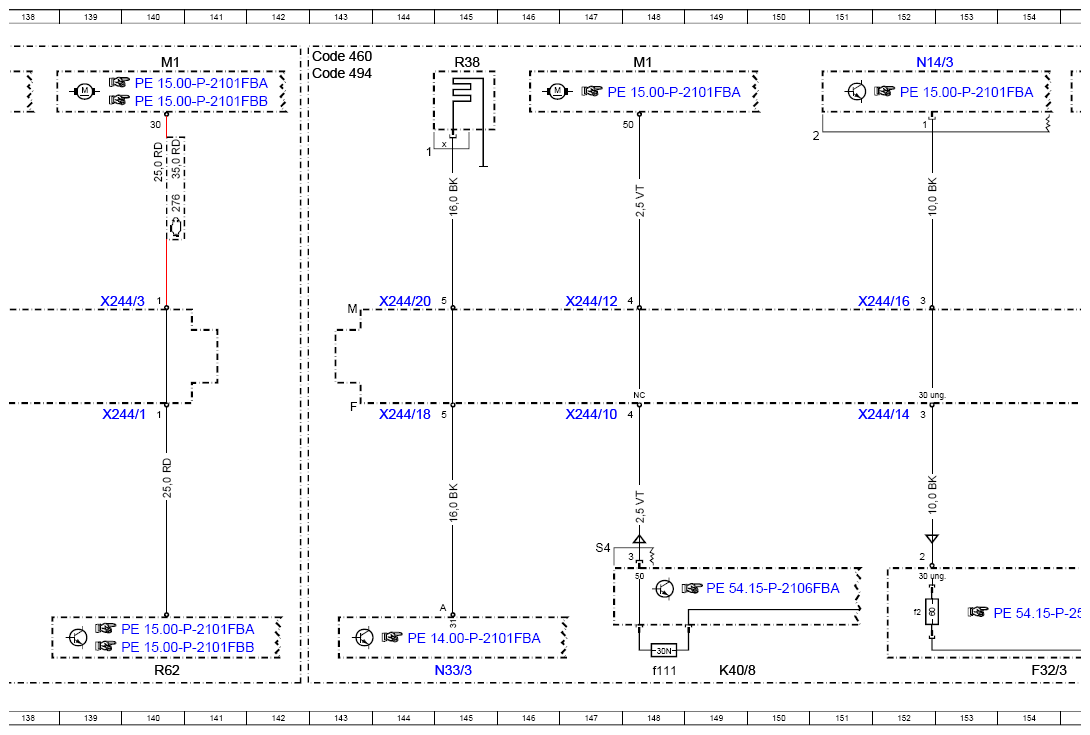

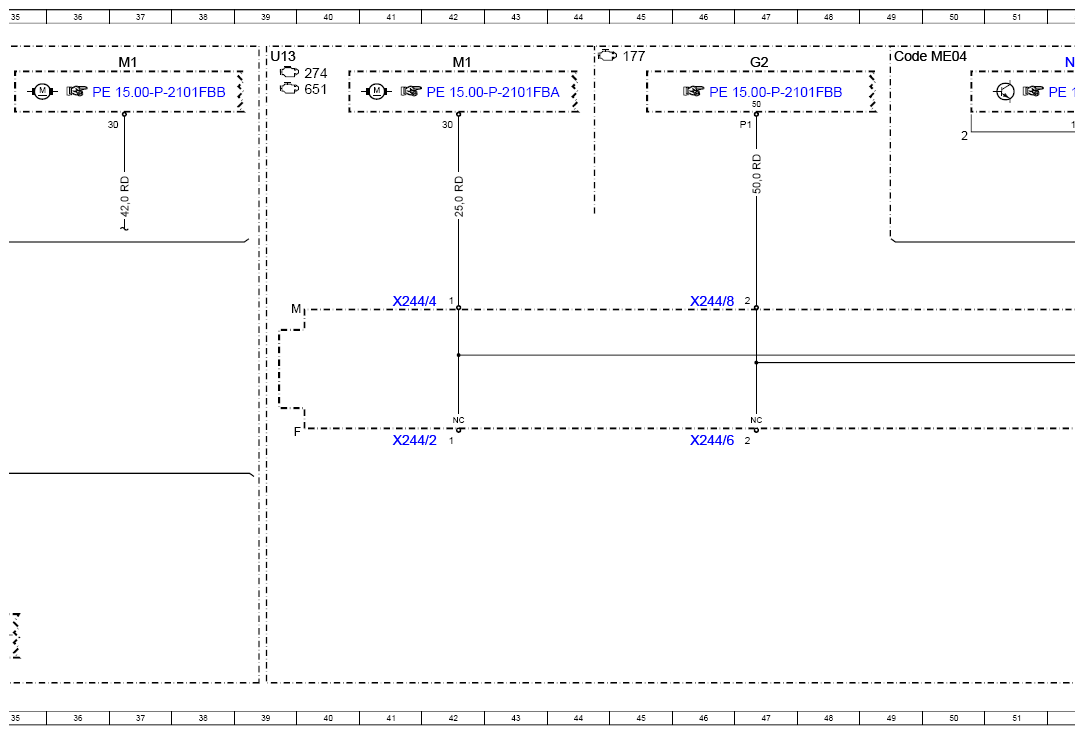

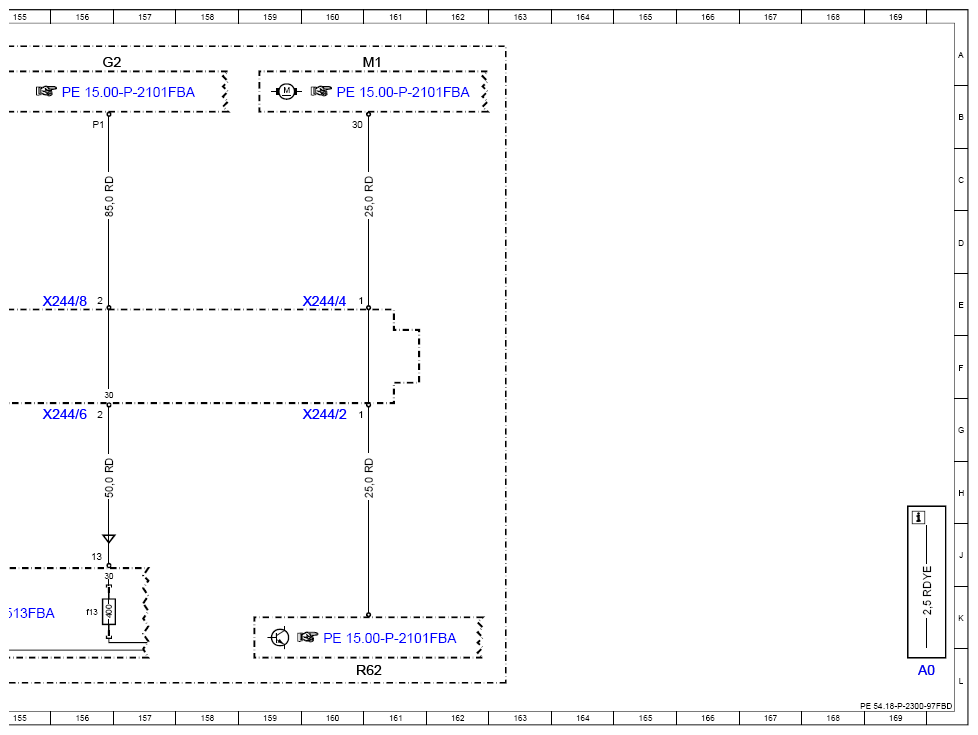

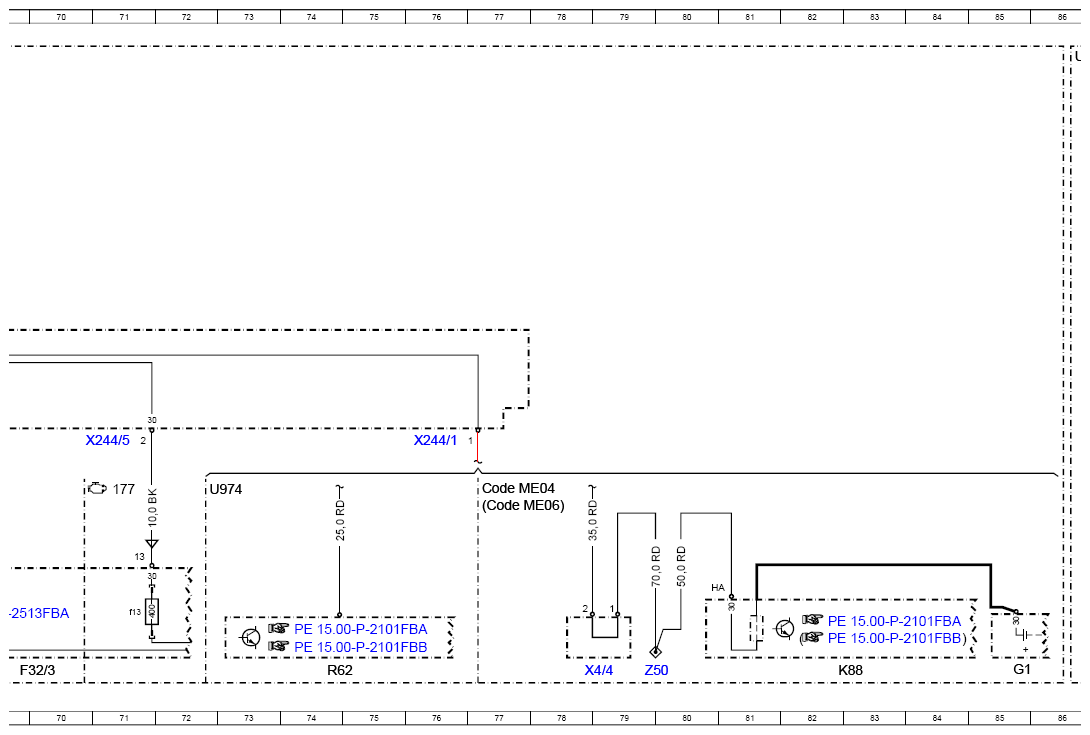

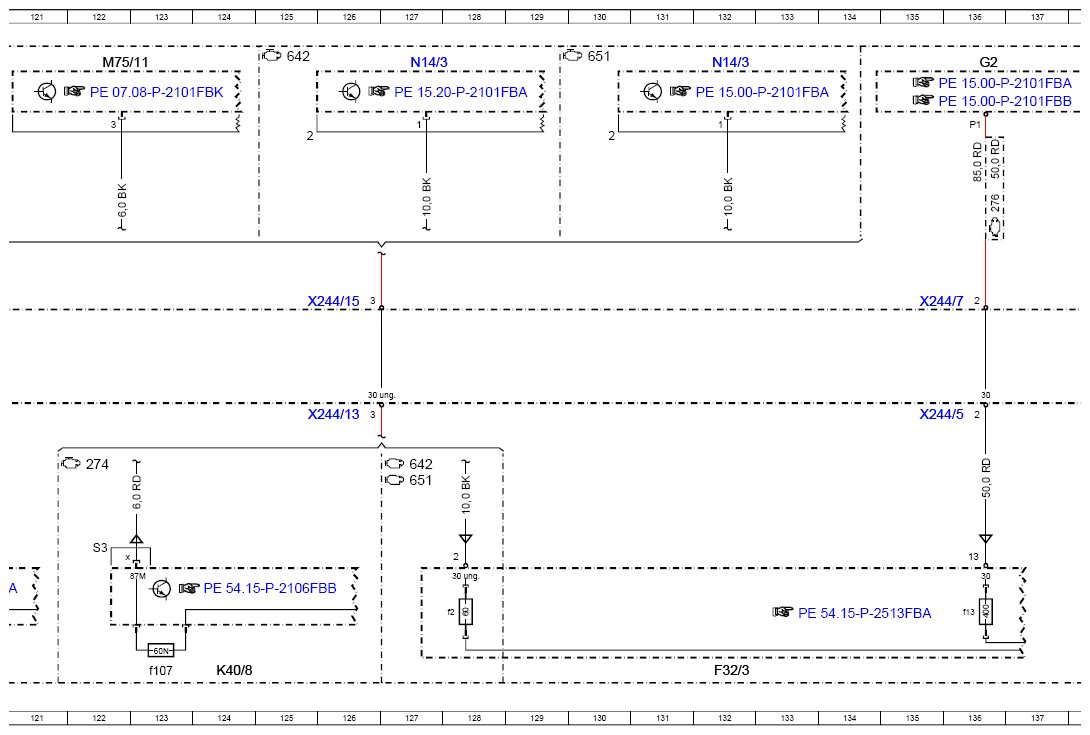

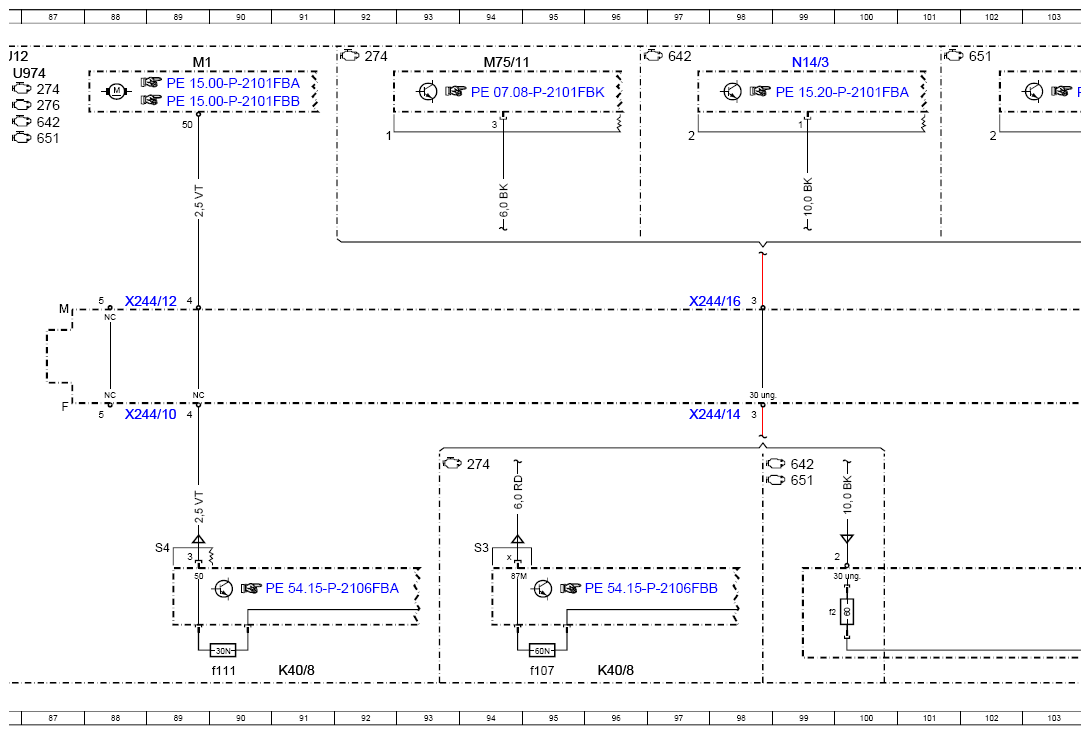

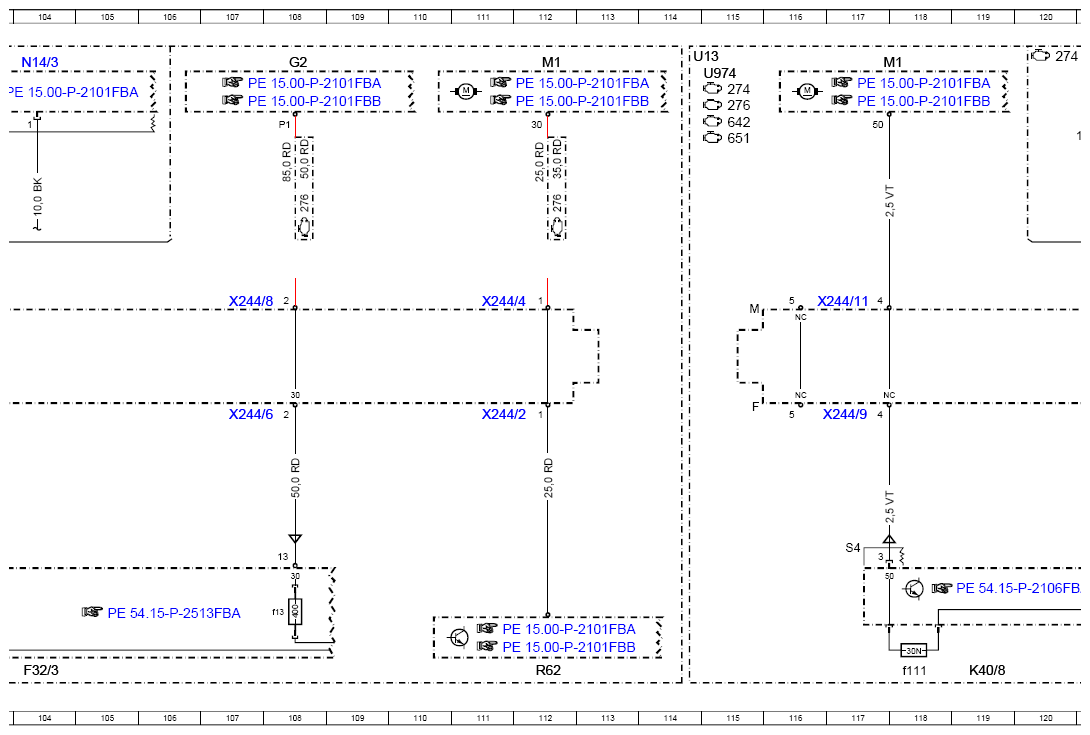

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBD
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
X244/1
Model 253 (except 253.99) up to model year 2020
X244/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 169L |
| Code 460 | Canada version | 143A |
| Code 494 | USA version | 143A |
| Code ME04 | Hybrid drive 20 KW VARIANT | 26H |
| Code ME04 | Hybrid drive 20 KW VARIANT | 1A |
| Code ME04 | Hybrid drive 20 KW VARIANT | 7A |
| Code ME04 | Hybrid drive 20 KW VARIANT | 77H |
| Code ME04 | Hybrid drive 20 KW VARIANT | 49A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 26H |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 1B |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 20A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 77H |
| F32/3 | Engine compartment Pre-fuse box | 19L |
| F32/3 | Engine compartment Pre-fuse box | 69L |
| F32/3 | Engine compartment Pre-fuse box | 104L |
| F32/3 | Engine compartment Pre-fuse box | 132L |
| F32/3 | Engine compartment Pre-fuse box | 154L |
| F32/3f13 | Fuse 13 | 21K |
| F32/3f13 | Fuse 13 | 71K |
| F32/3f13 | Fuse 13 | 108K |
| F32/3f13 | Fuse 13 | 136K |
| F32/3f13 | Fuse 13 | 156K |
| F32/3f2 | Fuse 2 | 17K |
| F32/3f2 | Fuse 2 | 67K |
| F32/3f2 | Fuse 2 | 99K |
| F32/3f2 | Fuse 2 | 128K |
| F32/3f2 | Fuse 2 | 152K |
| G1 | On-board electrical system battery | 35L |
| G1 | On-board electrical system battery | 85L |
| G2 | Alternator | 33A |
| G2 | Alternator | 47A |
| G2 | Alternator | 108A |
| G2 | Alternator | 136A |
| G2 | Alternator | 156A |
| K40/8 | Engine fuse and relay module | 7L |
| K40/8 | Engine fuse and relay module | 11L |
| K40/8 | Engine fuse and relay module | 56L |
| K40/8 | Engine fuse and relay module | 63L |
| K40/8 | Engine fuse and relay module | 91L |
| K40/8 | Engine fuse and relay module | 96L |
| K40/8 | Engine fuse and relay module | 119L |
| K40/8 | Engine fuse and relay module | 124L |
| K40/8 | Engine fuse and relay module | 149L |
| K40/8f107 | Fuse 107 | 6L |
| K40/8f107 | Fuse 107 | 54L |
| K40/8f107 | Fuse 107 | 95L |
| K40/8f107 | Fuse 107 | 123L |
| K40/8f111 | Fuse 111 | 10L |
| K40/8f111 | Fuse 111 | 61L |
| K40/8f111 | Fuse 111 | 90L |
| K40/8f111 | Fuse 111 | 118L |
| K40/8f111 | Fuse 111 | 148L |
| K88 | Pyrotechnical separator | 32L |
| K88 | Pyrotechnical separator | 83L |
| M1 | Starter | 10A |
| M1 | Starter | 18A |
| M1 | Starter | 24A |
| M1 | Starter | 42A |
| M1 | Starter | 37A |
| M1 | Starter | 61A |
| M1 | Starter | 89A |
| M1 | Starter | 112A |
| M1 | Starter | 117A |
| M1 | Starter | 140A |
| M1 | Starter | 148A |
| M1 | Starter | 161A |
| M75/11 | Electric coolant pump | 27A |
| M75/11 | Electric coolant pump | 57A |
| M75/11 | Electric coolant pump | 122A |
| M75/11 | Electric coolant pump | 94A |
| N14/3 | Glow output stage | 14A |
| N14/3 | Glow output stage | 52A |
| N14/3 | Glow output stage | 99A |
| N14/3 | Glow output stage | 104A |
| N14/3 | Glow output stage | 127A |
| N14/3 | Glow output stage | 132A |
| N14/3 | Glow output stage | 152A |
| N33/3 | Catalytic converter heater control unit | 145L |
| R38 | Catalytic converter heater heating element | 145A |
| R62 | Voltage dip limiter | 24L |
| R62 | Voltage dip limiter | 74L |
| R62 | Voltage dip limiter | 112L |
| R62 | Voltage dip limiter | 140L |
| R62 | Voltage dip limiter | 160L |
| U12 | Valid for left-hand drive vehicles | 1A |
| U12 | Valid for left-hand drive vehicles | 86A |
| U13 | Valid for right-hand drive vehicles | 39A |
| U13 | Valid for right-hand drive vehicles | 114A |
| U165 | Valid for AMG | 1B |
| U165 | Valid for AMG | 20A |
| U974 | Not valid for hybrid drive | 22H |
| U974 | Not valid for hybrid drive | 72H |
| U974 | Not valid for hybrid drive | 86A |
| U974 | Not valid for hybrid drive | 115A |
| X244/1 | Firewall through-hole plating electrical connector | 25G |
| X244/1 | Firewall through-hole plating electrical connector | 76G |
| X244/1 | Firewall through-hole plating electrical connector | 140G |
| X244/10 | Right vehicle-end busbar stud 4 | 9G |
| X244/10 | Right vehicle-end busbar stud 4 | 60G |
| X244/10 | Right vehicle-end busbar stud 4 | 89G |
| X244/10 | Right vehicle-end busbar stud 4 | 147G |
| X244/11 | Left engine-end busbar stud 4 | 15E |
| X244/11 | Left engine-end busbar stud 4 | 117E |
| X244/12 | Right engine-end busbar stud 4 | 60E |
| X244/12 | Right engine-end busbar stud 4 | 89E |
| X244/12 | Right engine-end busbar stud 4 | 147E |
| X244/13 | Left vehicle-end busbar stud 3 | 16G |
| X244/13 | Left vehicle-end busbar stud 3 | 67G |
| X244/13 | Left vehicle-end busbar stud 3 | 126G |
| X244/14 | Right vehicle-end busbar stud 3 | 5G |
| X244/14 | Right vehicle-end busbar stud 3 | 53G |
| X244/14 | Right vehicle-end busbar stud 3 | 152G |
| X244/14 | Right vehicle-end busbar stud 3 | 98G |
| X244/15 | Left engine-end busbar stud 3 | 16E |
| X244/15 | Left engine-end busbar stud 3 | 126E |
| X244/16 | Right engine-end busbar stud 3 | 53E |
| X244/16 | Right engine-end busbar stud 3 | 152E |
| X244/16 | Right engine-end busbar stud 3 | 98E |
| X244/18 | Right vehicle-end busbar stud 5 | 144G |
| X244/2 | Right vehicle-end busbar stud 1 | 2G |
| X244/2 | Right vehicle-end busbar stud 1 | 41G |
| X244/2 | Right vehicle-end busbar stud 1 | 111G |
| X244/2 | Right vehicle-end busbar stud 1 | 160G |
| X244/20 | Right engine-end busbar stud 5 | 144E |
| X244/3 | Left engine-end busbar stud 1 | 25E |
| X244/3 | Left engine-end busbar stud 1 | 140E |
| X244/4 | Right engine-end busbar stud 1 | 41E |
| X244/4 | Right engine-end busbar stud 1 | 111E |
| X244/4 | Right engine-end busbar stud 1 | 160E |
| X244/5 | Left vehicle-end busbar stud 2 | 21G |
| X244/5 | Left vehicle-end busbar stud 2 | 71G |
| X244/5 | Left vehicle-end busbar stud 2 | 135G |
| X244/6 | Right vehicle-end busbar stud 2 | 4G |
| X244/6 | Right vehicle-end busbar stud 2 | 46G |
| X244/6 | Right vehicle-end busbar stud 2 | 107G |
| X244/6 | Right vehicle-end busbar stud 2 | 156G |
| X244/7 | Left engine-end busbar stud 2 | 21E |
| X244/7 | Left engine-end busbar stud 2 | 135E |
| X244/8 | Right engine-end busbar stud 2 | 46E |
| X244/8 | Right engine-end busbar stud 2 | 107E |
| X244/8 | Right engine-end busbar stud 2 | 156E |
| X244/9 | Left vehicle-end busbar stud 4 | 15G |
| X244/9 | Left vehicle-end busbar stud 4 | 65G |
| X244/9 | Left vehicle-end busbar stud 4 | 117G |
| X4/4 | Terminal block (circuit 30) | 28L |
| X4/4 | Terminal block (circuit 30) | 78L |
| Z50 | Tml. 30 connector sleeve | 29L |
| Z50 | Tml. 30 connector sleeve | 79L |
