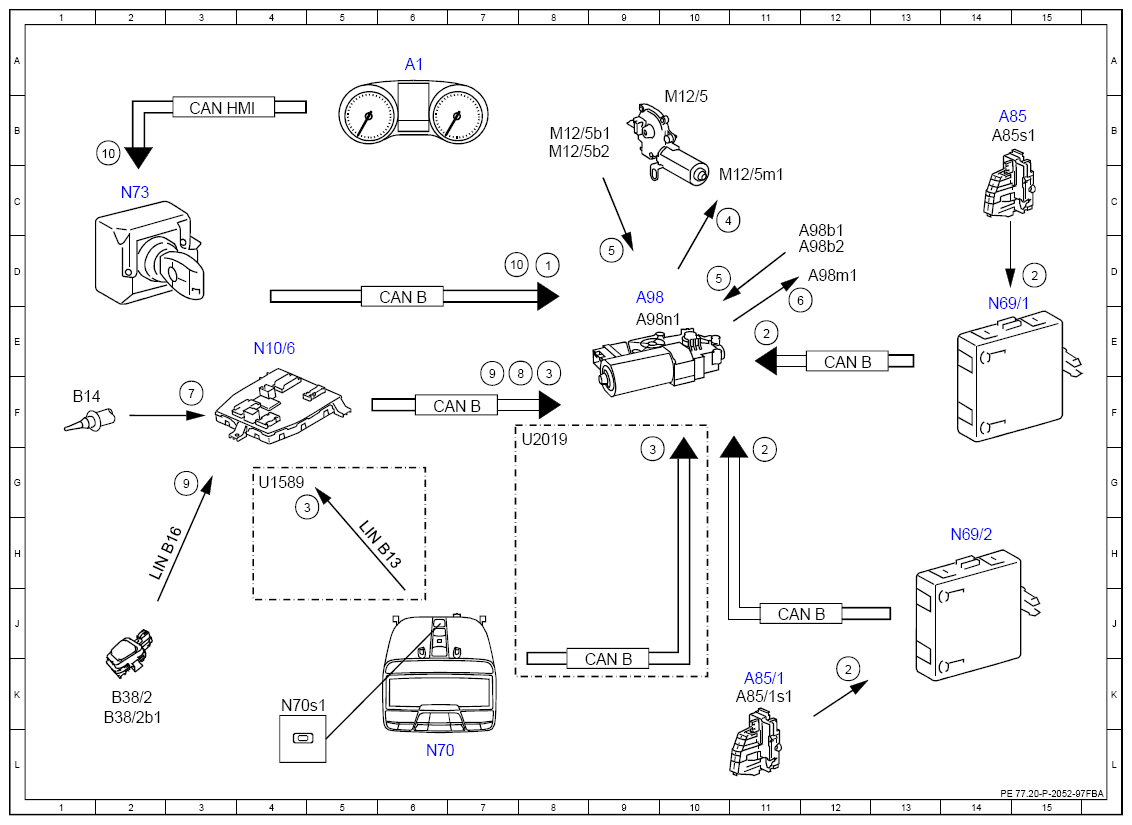

Function Schematic For Electric Panoramic Sliding Roof - PE77.20-P-2052-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
with code 413 (Automatic panoramic sliding sunroof)
with code 830 (China version)
Model 205 up to model year 2019
with code 413 (Automatic panoramic sliding sunroof)
with code 830 (China version)
Model 253 up to model year 2020
with code 413 (Automatic panoramic sliding sunroof)
with code 830 (China version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8D |
| 10 | Vehicle speed, signal | 2B |
| 10 | Vehicle speed, signal | 7D |
| 2 | Door rotary tumbler switch, status | 11E |
| 2 | Door rotary tumbler switch, status | 15D |
| 2 | Door rotary tumbler switch, status | 11G |
| 2 | Door rotary tumbler switch, status | 12K |
| 3 | Roof system switch, status | 8F |
| 3 | Roof system switch, status | 4G |
| 3 | Roof system switch, status | 9G |
| 4 | Panoramic sliding sunroof roller sun blind motor, actuation | 10C |
| 5 | Hall sensors, signal | 9D |
| 5 | Hall sensors, signal | 10D |
| 6 | Panoramic sliding roof motor, actuation | 12D |
| 7 | Outside temperature sensor, signal | 3F |
| 8 | Outside temperature, signal | 8F |
| 9 | Rain closing, request | 3G |
| 9 | Rain closing, request | 7F |
| A1 | Instrument cluster | 6A |
| A85 | Left front door lock | 14B |
| A85/1 | Right front door lock | 11K |
| A85/1s1 | Right front door rotary tumbler switch | 11K |
| A85s1 | Left front door rotary tumbler switch | 14B |
| A98 | Panoramic sliding roof control module | 9D |
| A98b1 | Hall sensor 1, panoramic sliding roof | 11C |
| A98b2 | Hall sensor 2, panoramic sliding roof | 11D |
| A98m1 | Panoramic sliding roof motor | 12D |
| A98n1 | Panoramic sliding roof control unit | 9E |
| B14 | Outside temperature sensor | 1F |
| B38/2 | Rain/light sensor with additional functions | 2K |
| B38/2b1 | Rain sensor | 2K |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 6D |
| CAN B | Interior CAN | 11J |
| CAN B | Interior CAN | 9K |
| CAN HMI | User interface CAN | 3B |
| LIN B13 | Roof LIN | 5H |
| LIN B16 | Rain and light sensor LIN | 2H |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 10B |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 8B |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 8B |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 11C |
| N10/6 | Front SAM control unit | 4E |
| N69/1 | Left front door control unit | 14E |
| N69/2 | Right front door control unit | 14H |
| N70 | Overhead control panel control unit | 6L |
| N70s1 | Roof switch | 4K |
| N73 | Electronic ignition switch control unit | 2C |
| U1589 | Valid up to model year 2019 | 4G |
| U2019 | Valid as of model year 2019 | 8F |
