Remove/Install Water Drain Rail For Sliding Roof - AR77.20-P-1997LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/1
with code 414 (Electric sunroof, glass version)
Model 213.0/1/2
with code 414 (Electric sunroof, glass version)
Model 253
with code 414 (Electric sunroof, glass version)
Model 293
with code 414 (Electric sunroof, glass version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove sliding roof panel. | AR77.20-P-2852LW | |

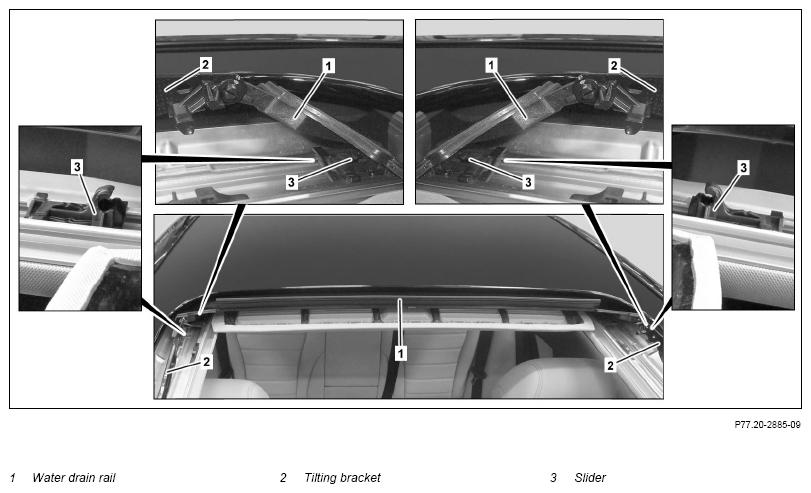

| 2 | Remove water drain rail (1) from tilting brackets (2) on right and left. | ||
| 3 | Remove water drain rail (1) from the sliders (3) on the right and left. | ||
| 4 | Check sliders (3) on the right and left for damage. | If there is a problem: ↓ Remove sliding sunroof frame and replace both sliders (3). |
|
| Model 205.0/1 with code 414 (Electric sunroof, glass version) |
AR77.20-P-3000LWE | ||
| Model 213.0/1/2 with code 414 (Electric sunroof, glass version) Model 253 with code 414 (Electric sunroof, glass version) Model 293 with code 414 (Electric sunroof, glass version) |
AR77.20-P-3000LW | ||
| 5 | Install in the reverse order. |
